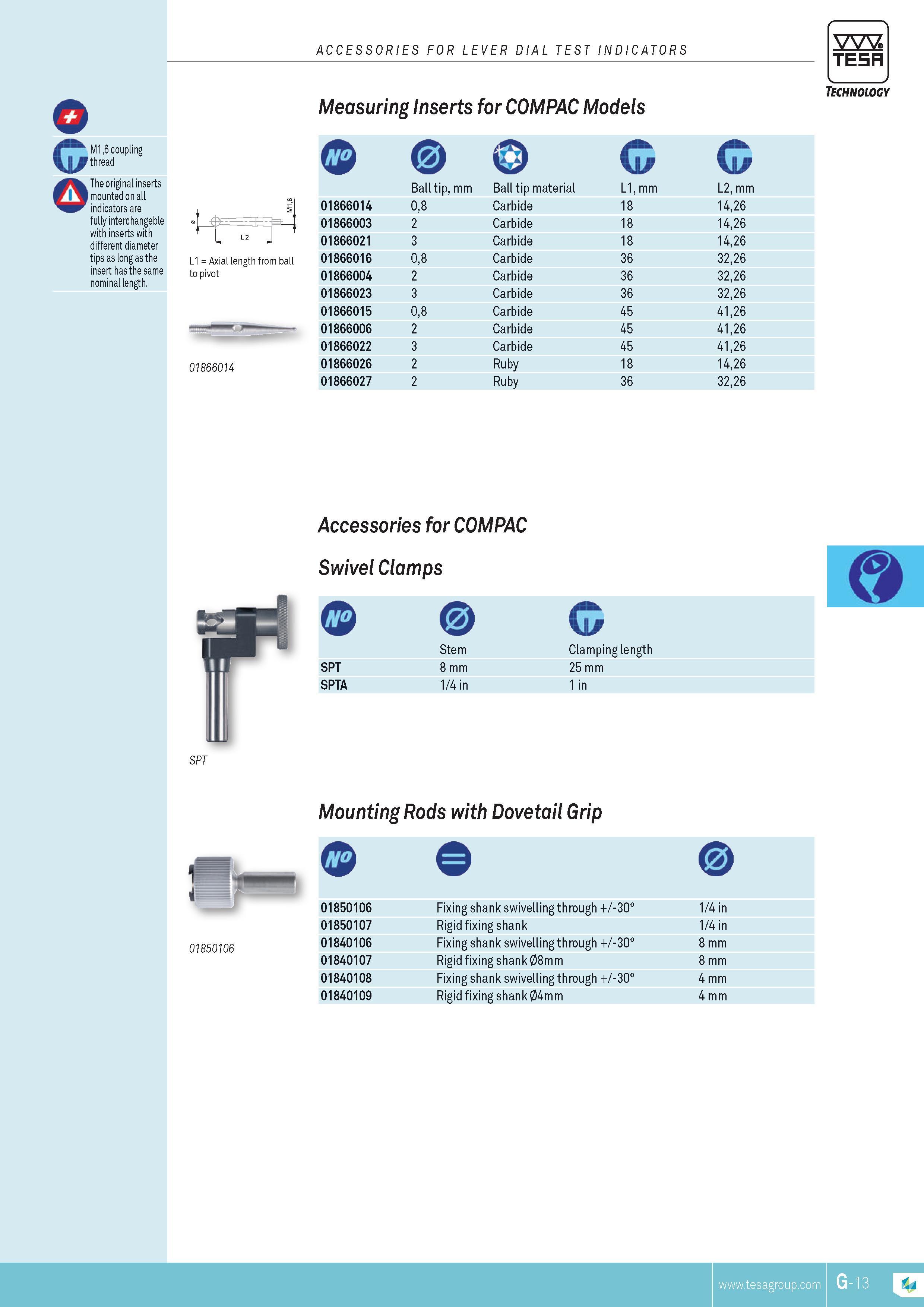

ACCESSORIES FOR LEVER DIAL TEST INDICATORS TESA M16 coupling thread The original inserts mounted on all indicators are fully interchangeble with inser

ACCESSORIES FOR LEVER DIAL TEST INDICATORS TESA M16 coupling thread The original inserts mounted on all indicators are fully interchangeble with inserts with different diameter tips as long as the insert has the same nominal length. Technology Measuring Inserts for coMPAc Models L1 Axial length from ball to pivot 01866014 Q G G Ball tip mm Ball tip material L1 mm L2 mm 01866014 08 Carbide 18 1426 01866003 2 Carbide 18 1426 01866021 3 Carbide 18 1426 01866016 08 Carbide 36 3226 01866004 2 Carbide 36 3226 01866023 3 Carbide 36 3226 01866015 08 Carbide 45 4126 01866006 2 Carbide 45 4126 01866022 3 Carbide 45 4126 01866026 2 Ruby 18 1426 01866027 2 Ruby 36 3226 SPT Accessories for coMPAc Swivel clamps G SPT SPTA Stem 8 mm 1 4 in Clamping length 25 mm 1 in 01850106 Mounting rods with Dovetail Grip 01850106 Fixing shank swivelling through + -30 1 4 in 01850107 Rigid fixing shank 1 4 in 01840106 Fixing shank swivelling through + -30 8 mm 01840107 Rigid fixing shank 08mm 8 mm 01840108 Fixing shank swivelling through + -30 4 mm 01840109 Rigid fixing shank 04mm 4 mm TESA
