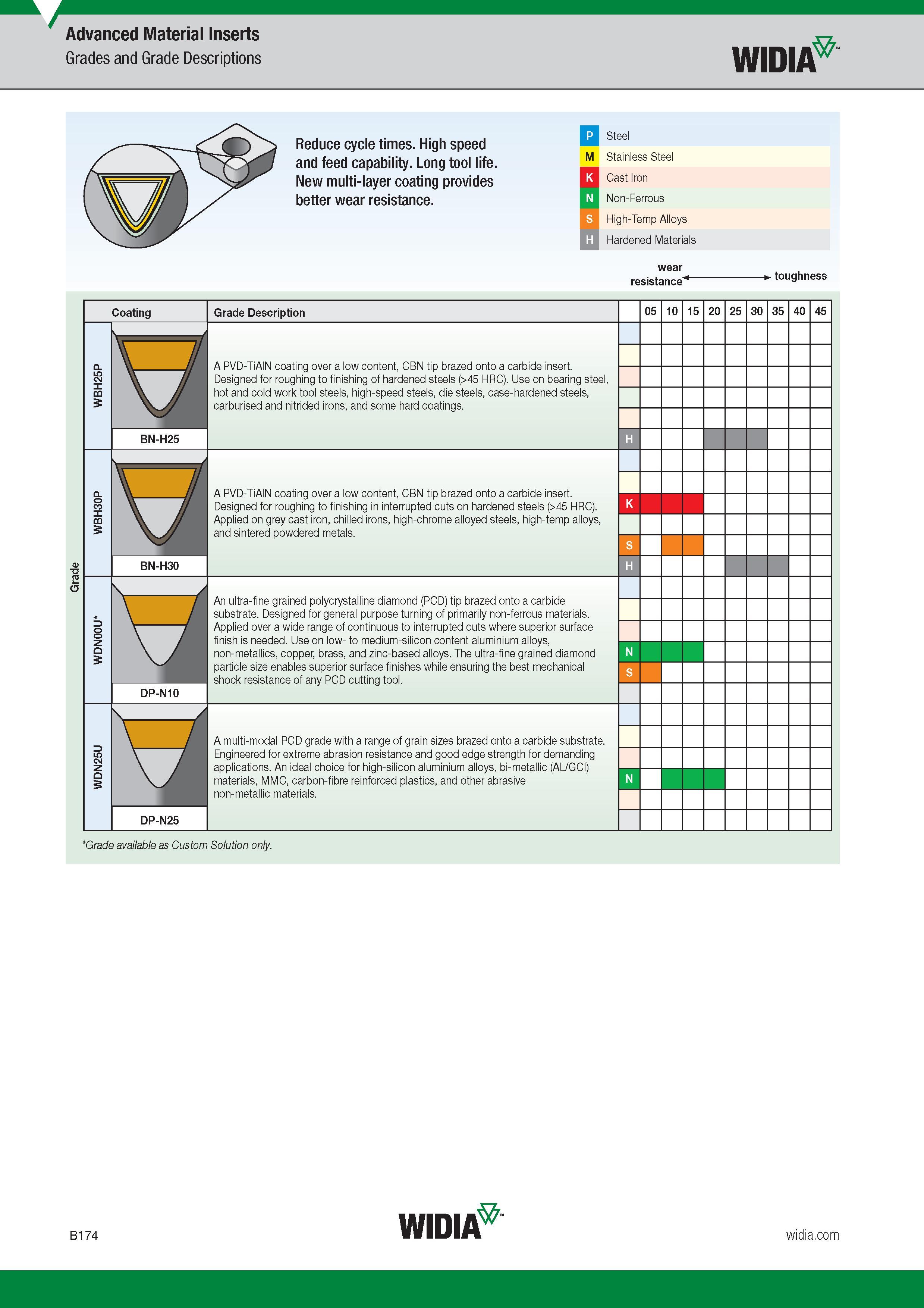

Advanced Material Inserts Grades and Grade Descriptions Widia Reduce cycle times. High speed and feed capability. Long tool life. New multi-layer coating provides better wear resistance. P Steel M Stainless Steel K Cast Iron N Non-Ferrous S High-Temp Alloys H Hardened Materials wear resistance" toughness Coating Grade Description 05 10 15 20 25 30 35 40 45 BN-H25 A PVD-TiAlN coating over a low content, CBN tip brazed onto a carbide insert. Designed for roughing to finishing of hardened steels (>45 HRC). Use on bearing steel, hot and cold work tool steels, high-speed steels, die steels, case-hardened steels, carburised and nitrided irons, and some hard coatings. H BN-H30 A PVD-TiAlN coating over a low content, CBN tip brazed onto a carbide insert. Designed for roughing to finishing in interrupted cuts on hardened steels (>45 HRC). Applied on grey cast iron, chilled irons, high-chrome alloyed steels, high-temp alloys, and sintered powdered metals. S H G DP-N10 An ultra-fine grained polycrystalline diamond (PCD) tip brazed onto a carbide substrate. Designed for general purpose turning of primarily non-ferrous materials. Applied over a wide range of continuous to interrupted cuts where superior surface finish is needed. Use on low- to medium-silicon content aluminium alloys, non-metallics, copper, brass, and zinc-based alloys. The ultra-fine grained diamond particle size enables superior surface finishes while ensuring the best mechanical shock resistance of any PCD cutting tool. DP-N25 A multi-modal PCD grade with a range of grain sizes brazed onto a carbide substrate. Engineered for extreme abrasion resistance and good edge strength for demanding applications. An ideal choice for high-silicon aluminium alloys, bi-metallic (AL/GCI) materials, MMC, carbon-fibre reinforced plastics, and other abrasive non-metallic materials. N Grade available as Custom Solution only. B174 Widia N s
