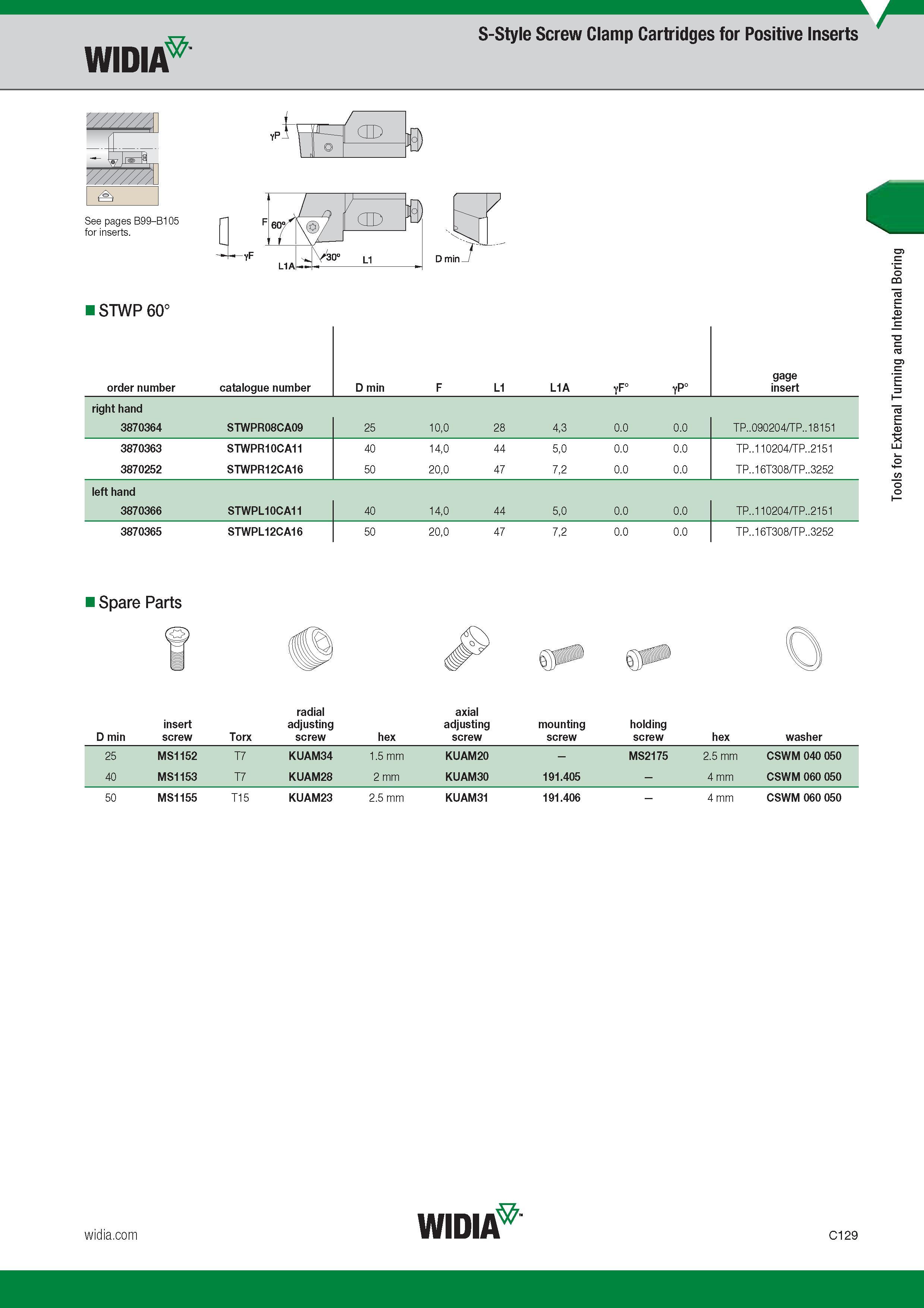

Cartridges for Positive Inserts Widia S-Style Screw Clamp See pages B99-B105 for inserts OD 1, :r W / CED P L1A Vbo° L1 D min STWP 60° order number

Cartridges for Positive Inserts Widia S-Style Screw Clamp See pages B99-B105 for inserts. OD 1, :r W / CED P L1A Vbo° L1 D min STWP 60° order number Catalogue number Обозначение инструмента по каталогу D min F L1 L1A yF° VP° gage insert right hand 3870364 STWPR08CA09 25 10,0 28 4,3 0.0 0.0 TP..090204/TP..18151 3870363 STWPR10CA11 40 14,0 44 5,0 0.0 0.0 TP..110204/TP..2151 3870252 STWPR12CA16 50 20,0 47 7,2 0.0 0.0 TP..16T308/TP..3252 left hand 3870366 STWPL10CA11 40 14,0 44 5,0 0.0 0.0 TP..110204/TP..2151 3870365 STWPL12CA16 50 20,0 47 7,2 0.0 0.0 TP..16T308/TP..3252 Spare Parts D min insert screw Torx radial adjusting screw hex axial adjusting screw mounting screw holding screw hex washer 25 MS1152 T7 KUAM34 1.5 mm KUAM20 - MS2175 2.5 mm CSWM 040 050 40 MS1153 T7 KUAM28 2 mm KUAM30 191.405 - 4 mm CSWM 060 050 50 MS1155 T15 KUAM23 2.5 mm KUAM31 191.406 4 mm CSWM 060 050 Widia C129 Tools for External Turning and Internal Boring Токарный инструмент Widia для наружного точения и внутреннего растачивания
