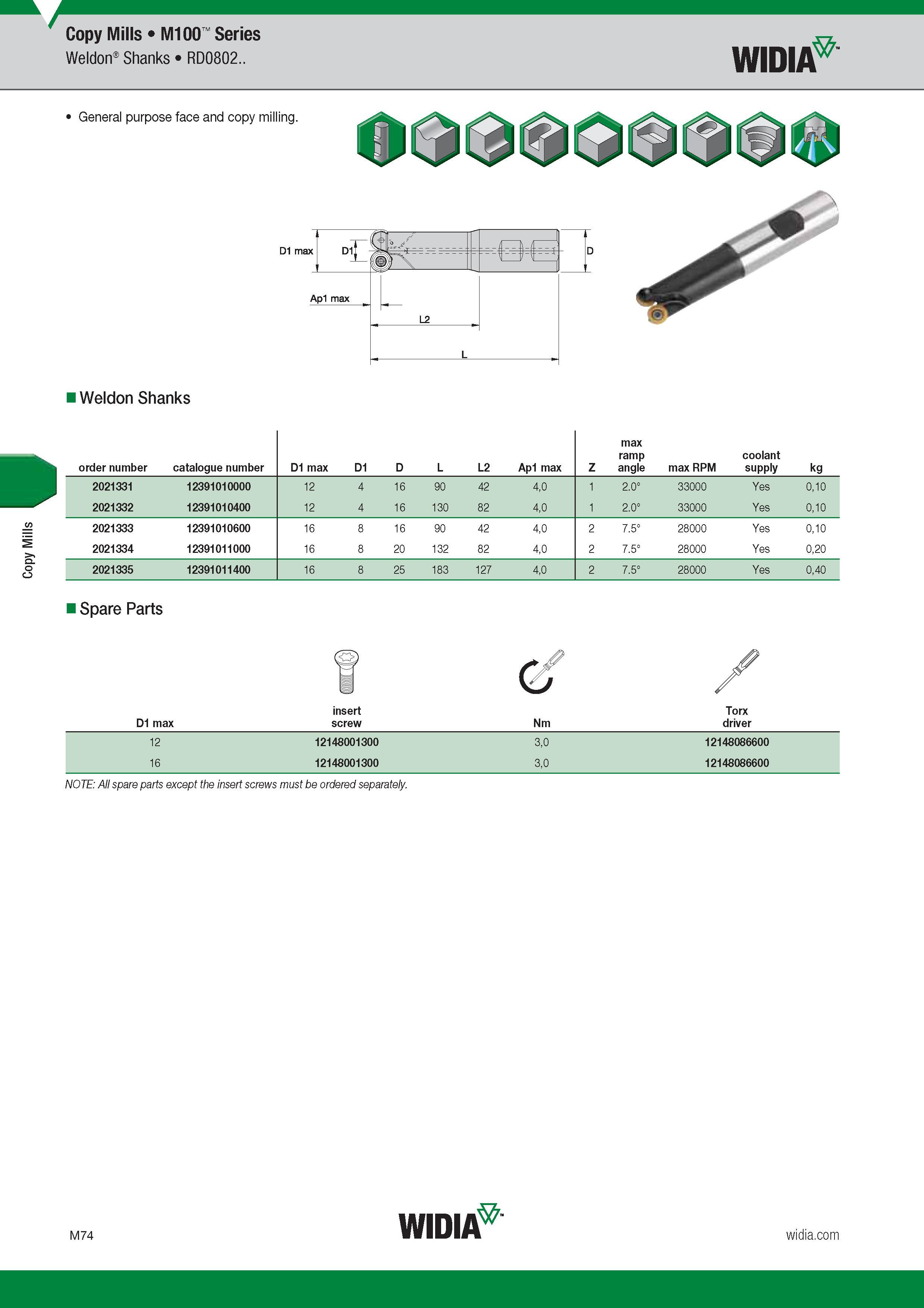

Copy Mills Widia M100 Series Weldon Shanks RD0802.. General purpose face and copy milling. Weldon Shanks order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D L L2 Ap1 max Z max ramp angle max RPM coolant supply kg 2021331 12391010000 12 4 16 90 42 4,0 1 2.0° 33000 Yes 0,10 2021332 12391010400 12 4 16 130 82 4,0 1 2.0° 33000 Yes 0,10 2021333 12391010600 16 8 16 90 42 4,0 2 7.5° 28000 Yes 0,10 2021334 12391011000 16 8 20 132 82 4,0 2 7.5° 28000 Yes 0,20 2021335 12391011400 16 8 25 183 127 4,0 2 7.5° 28000 Yes 0,40 Spare Parts D1 max insert screw c Nm Torx driver 12 12148001300 3,0 12148086600 16 12148001300 3,0 12148086600 NOTE All spare parts except the insert screws must be ordered separately. M74 Widia Copy Mills
