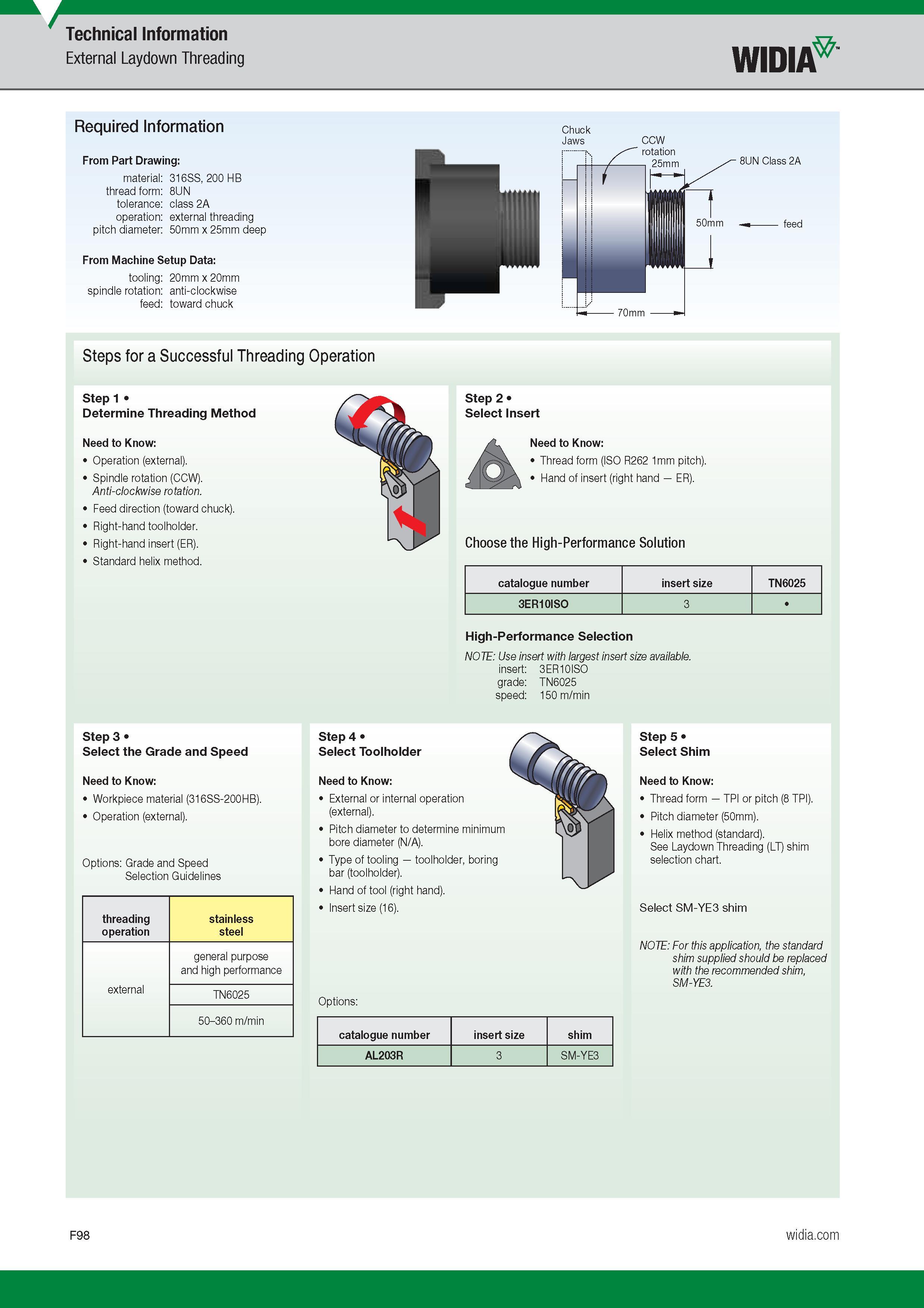

External Laydown Threading Widia Required Information From Part Drawing material 316SS, 200 HB thread form 8UN tolerance class 2A operation external threading pitch diameter 50mm x 25mm deep From Machine Setup Data tooling 20mm x 20mm spindle rotation anti-clockwise feed toward chuck Chuck Jaws CCW 8UN Class 2A feed Steps for a Successful Threading Operation Step 1 Determine Threading Method Need to Know Operation (external). Spindle rotation (CCW). Anti-clockwise rotation. Feed direction (toward chuck). Right-hand toolholder. Right-hand insert (ER). Standard helix method. Step 2 Select Insert Need to Know Thread form (ISO R262 1mm pitch). Hand of insert (right hand ER). Choose the High-Performance Solution Catalogue number Обозначение инструмента по каталогу insert size TN6025 3ER10IS0 3 High-Performance Selection NOTE Use insert with largest insert size available. insert 3ER10IS0 grade TN6025 speed 150 m/min Step 3 Select the Grade and Speed Need to Know Workpiece material (316SS-200HB). Operation (external). Options Grade and Speed Selection Guidelines threading stainless operation steel general purpose and high performance external TN6025 50-360 m/min Step 4 Select Toolholder Need to Know External or internal operation (external). Pitch diameter to determine minimum bore diameter (N/A). Type of tooling toolholder, boring bar (toolholder). Hand of tool (right hand). I nsert size (16). Options Catalogue number Обозначение инструмента по каталогу insert size shim AL203R 3 SM-YE3 Step 5 Select Shim Need to Know Thread form TPI or pitch (8 TPI). Pitch diameter (50mm). Helix method (standard). See Laydown Threading (LT) shim selection chart. Select SM-YE3 shim NOTE For this application, the standard shim supplied should be replaced with the recommended shim, SM-YE3. F98 Technical Information
