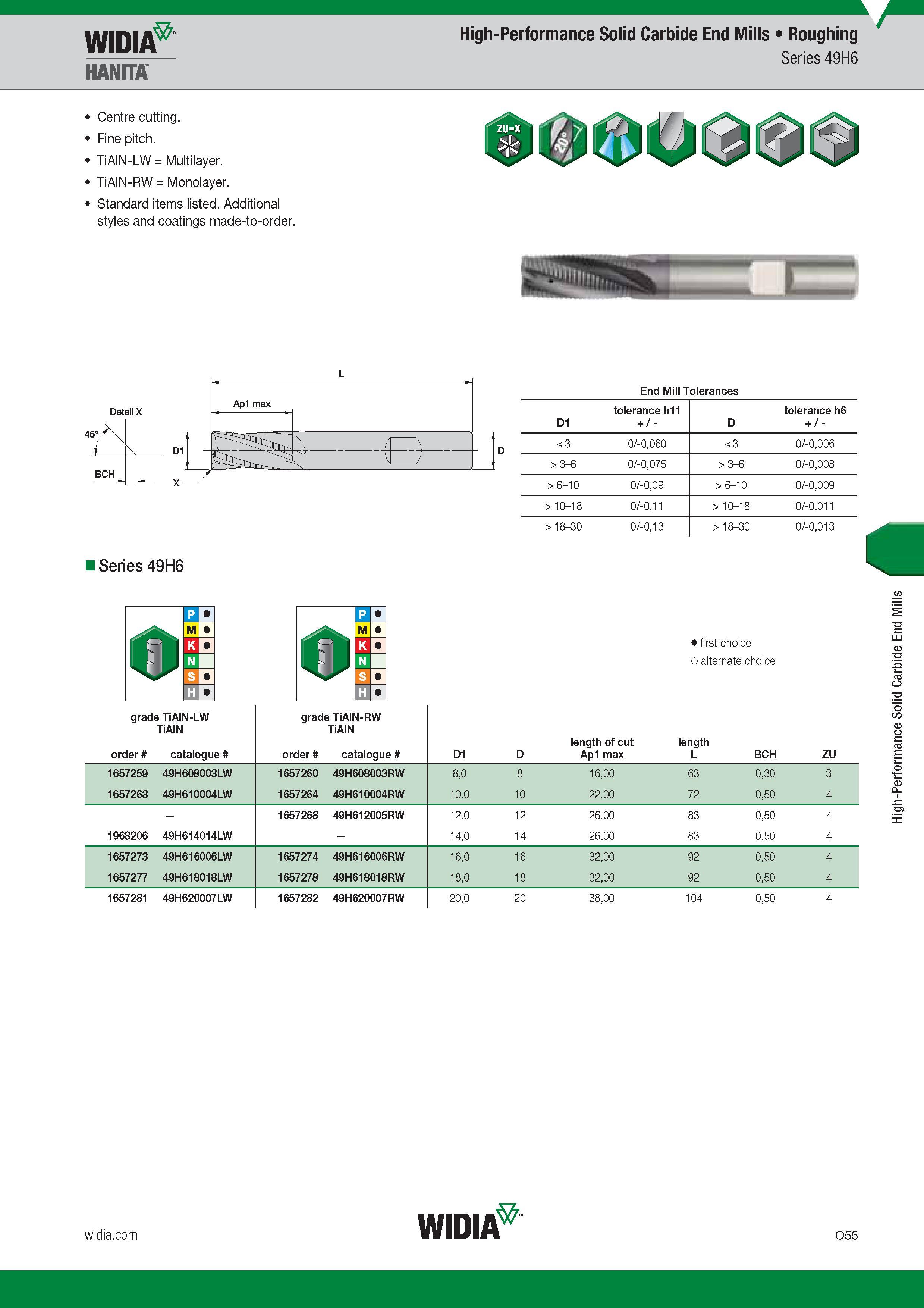

High-Performance Solid Carbide End Mills Widia Hanita Roughing Series 49H6 Centre cutting Fine pitch TiAlN-LW Multilayer TiAlN-RW Monolayer Standar

High-Performance Solid Carbide End Mills Widia Hanita Roughing Series 49H6 Centre cutting. Fine pitch. TiAlN-LW Multilayer. TiAlN-RW Monolayer. Standard items listed. Additional styles and coatings made-to-order. Detail X T BCH Series 49H6 End Mill Tolerances D1 tolerance h11 + / - D tolerance h6 + / - s 3 0/-0,060 s 3 0/-0,006 3-6 0/-0,075 3-6 0/-0,008 6-10 0/-0,09 6-10 0/-0,009 10-18 0/-0,11 10-18 0/-0,011 18-30 0/-0,13 >18-30 0/-0,013 First and alternate choice Основной и альтернативный выбор grade TiAlN-LW TiAlN order catalogue grade TiAlN-RW TiAlN order catalogue D1 D length of cut Ap1 max length L BCH ZU 1657259 49H608003LW 1657260 49H608003RW 8,0 8 16,00 63 0,30 3 1657263 49H610004LW 1657264 49H610004RW 10,0 10 22,00 72 0,50 4 - 1657268 49H612005RW 12,0 12 26,00 83 0,50 4 1968206 49H614014LW - 14,0 14 26,00 83 0,50 4 1657273 49H616006LW 1657274 49H616006RW 16,0 16 32,00 92 0,50 4 1657277 49H618018LW 1657278 49H618018RW 18,0 18 32,00 92 0,50 4 1657281 49H620007LW 1657282 49H620007RW 20,0 20 38,00 104 0,50 4 High-Performance Solid Carbide End Mills
