935 Каталог WIDIA 2017 Режущий инструмент Пластины Резцы Фрезы Сверла Метчики Стр.M31

Каталог Widia 2017 Металлорежущий инструмент Стр. M31 0935 ENG Lab2u

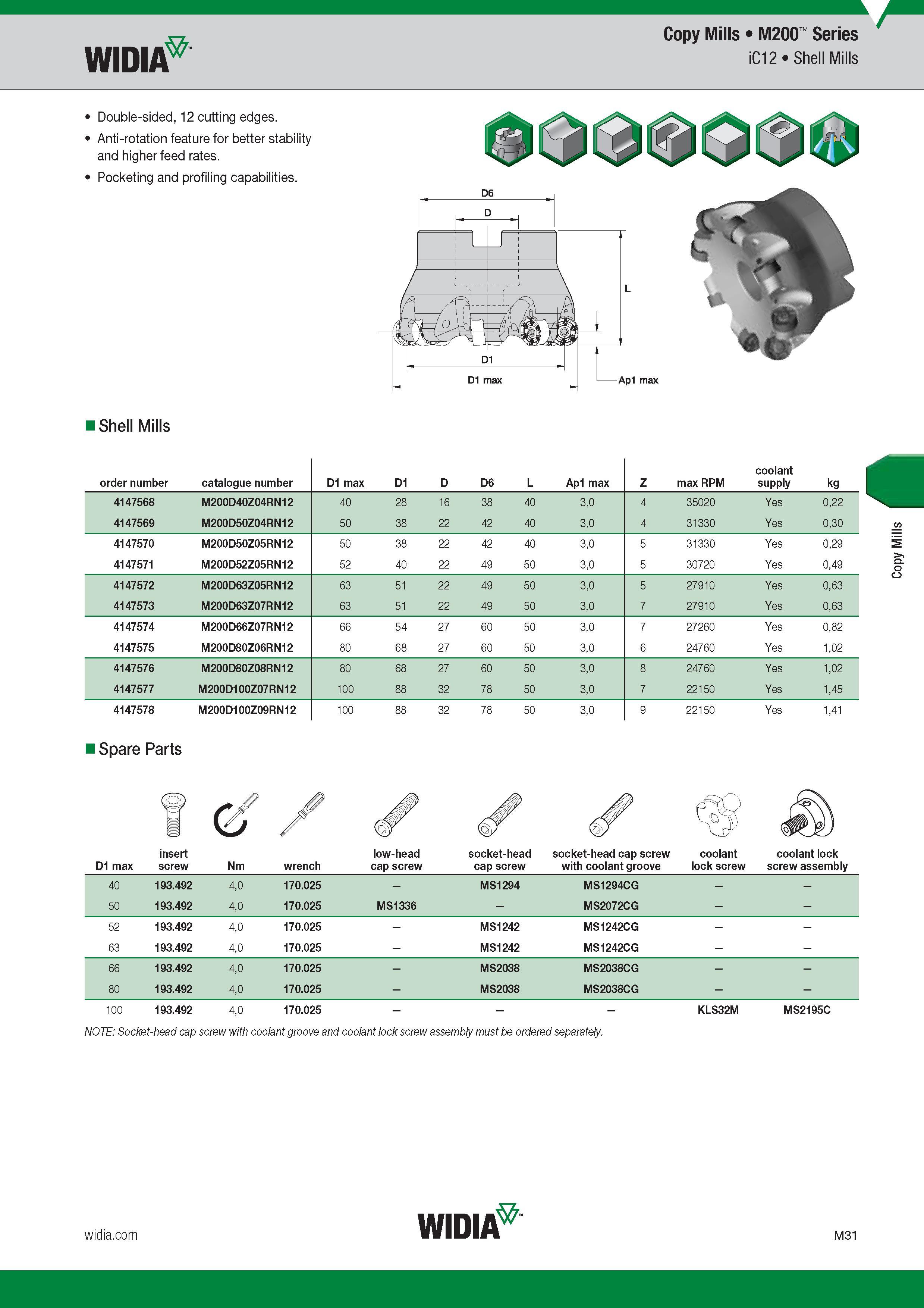

Widia Copy Mills M200 Series iC12 Shell Mills Double-sided, 12 cutting edges. Anti-rotation feature for better stability and higher feed rates. Pocketing and profiling capabilities. Ap1 max Shell Mills Запасные части к инструменту Spare Parts D1 max insert screw Nm wrench low-head cap screw socket-head cap screw socket-head cap screw with coolant groove coolant lock screw coolant lock screw assembly 40 193.492 4,0 170.025 - MS1294 MS1294CG 50 193.492 4,0 170.025 MS1336 - MS2072CG 52 193.492 4,0 170.025 - MS1242 MS1242CG 63 193.492 4,0 170.025 - MS1242 MS1242CG 66 193.492 4,0 170.025 - MS2038 MS2038CG 80 193.492 4,0 170.025 - MS2038 MS2038CG 100 193.492 4,0 170.025 - KLS32M MS2195C NOTE Socket-head cap screw with coolant groove and coolant lock screw assembly must be ordered separately. Widia M31 Copy Mills
