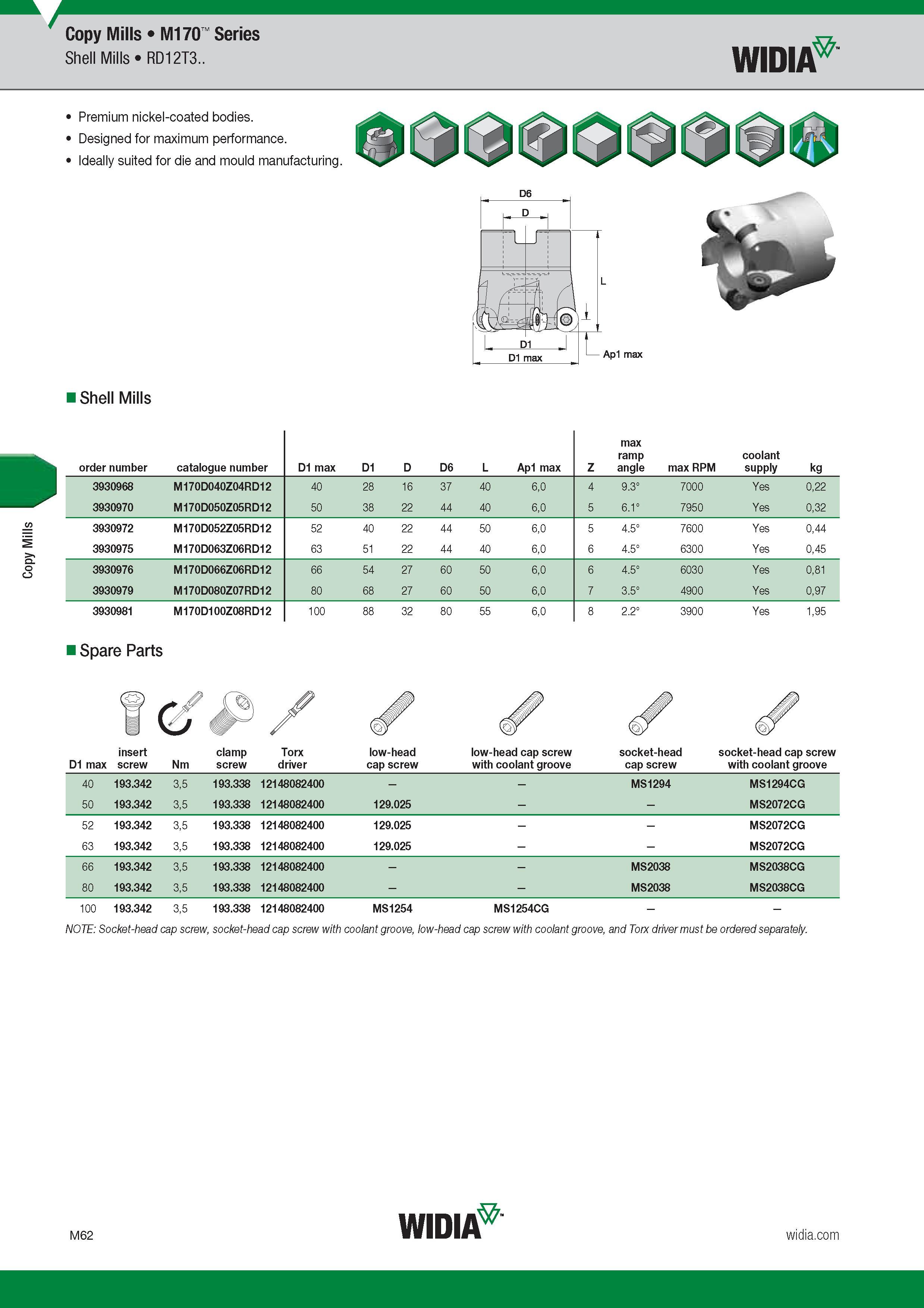

Copy Mills Copy Mills M170 Series Shell Mills RD12T3.. Widia Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mould manufacturing. Shell Mills Номер для заказа продукции Order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D D6 L Ap1 max Z max ramp angle Обороты на шпинделе станка Максимальное значение coolant supply kg 3930968 M170D040Z04RD12 40 28 16 37 40 6,0 4 9.3° 7000 Yes 0,22 3930970 M170D050Z05RD12 50 38 22 44 40 6,0 5 6.1° 7950 Yes 0,32 3930972 M170D052Z05RD12 52 40 22 44 50 6,0 5 4.5° 7600 Yes 0,44 3930975 M170D063Z06RD12 63 51 22 44 40 6,0 6 4.5° 6300 Yes 0,45 3930976 M170D066Z06RD12 66 54 27 60 50 6,0 6 4.5° 6030 Yes 0,81 3930979 M170D080Z07RD12 80 68 27 60 50 6,0 7 3.5° 4900 Yes 0,97 3930981 M170D100Z08RD12 100 88 32 80 55 6,0 8 2.2° 3900 Yes 1,95 Запасные части к инструменту Spare Parts D1 max insert screw Nm clamp screw Torx driver low-head cap screw low-head cap screw with coolant groove socket-head cap screw socket-head cap screw with coolant groove 40 193.342 3,5 193.338 12148082400 MS1294 MS1294CG 50 193.342 3,5 193.338 12148082400 129.025 MS2072CG 52 193.342 3,5 193.338 12148082400 129.025 MS2072CG 63 193.342 3,5 193.338 12148082400 129.025 MS2072CG 66 193.342 3,5 193.338 12148082400 MS2038 MS2038CG 80 193.342 3,5 193.338 12148082400 MS2038 MS2038CG 100 193.342 3,5 193.338 12148082400 MS1254 MS1254CG NOTE Socket-head cap screw, socket-head cap screw with coolant groove, low-head cap screw with coolant groove, and Torx driver must be ordered separately. M62 Widia
