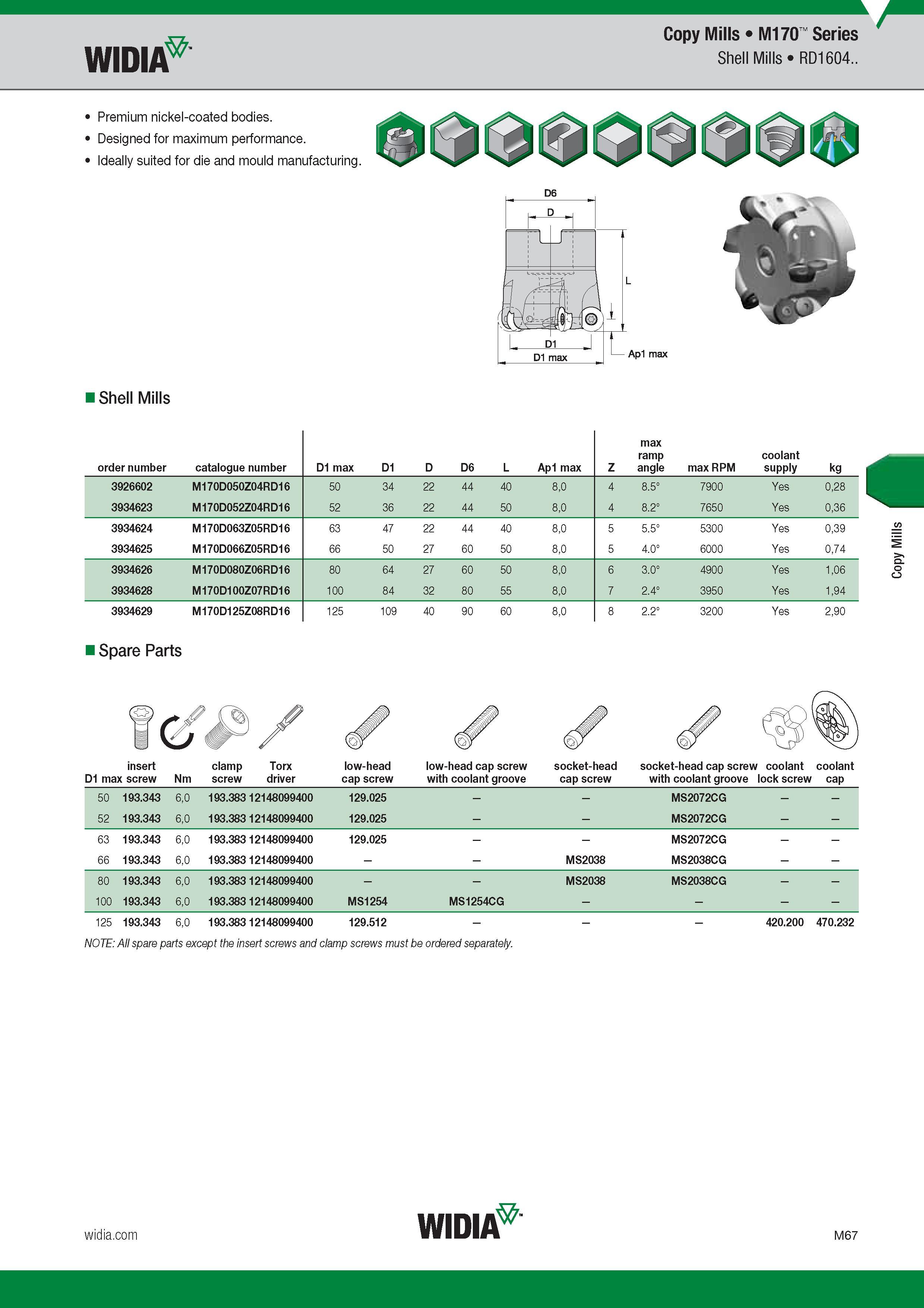

Widia Copy Mills M170 Series Shell Mills RD1604.. Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mould manufacturing. Shell Mills Номер для заказа продукции Order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D D6 L Ap1 max Z max ramp angle Обороты на шпинделе станка Максимальное значение coolant supply kg 3926602 M170D050Z04RD16 50 34 22 44 40 8,0 4 8.5° 7900 Yes 0,28 3934623 M170D052Z04RD16 52 36 22 44 50 8,0 4 8.2° 7650 Yes 0,36 3934624 M170D063Z05RD16 63 47 22 44 40 8,0 5 5.5° 5300 Yes 0,39 3934625 M170D066Z05RD16 66 50 27 60 50 8,0 5 4.0° 6000 Yes 0,74 3934626 M170D080Z06RD16 80 64 27 60 50 8,0 6 3.0° 4900 Yes 1,06 3934628 M170D100Z07RD16 100 84 32 80 55 8,0 7 2.4° 3950 Yes 1,94 3934629 M170D125Z08RD16 125 109 40 90 60 8,0 8 2.2° 3200 Yes 2,90 Запасные части к инструменту Spare Parts insert D1 max screw Nm clamp Torx screw driver low-head cap screw low-head cap screw with coolant groove socket-head cap screw socket-head cap screw with coolant groove coolant lock screw coolant cap 50 193.343 6,0 193.383 12148099400 129.025 MS2072CG 52 193.343 6,0 193.383 12148099400 129.025 MS2072CG 63 193.343 6,0 193.383 12148099400 129.025 MS2072CG 66 193.343 6,0 193.383 12148099400 MS2038 MS2038CG 80 193.343 6,0 193.383 12148099400 MS2038 MS2038CG 100 193.343 6,0 193.383 12148099400 MS1254 MS1254CG 125 193.343 6,0 193.383 12148099400 129.512 - 420.200 470.232 NOTE All Запасные части к инструменту Spare Parts except the insert screws and clamp screws must be ordered separately. Widia M67 Copy Mills
