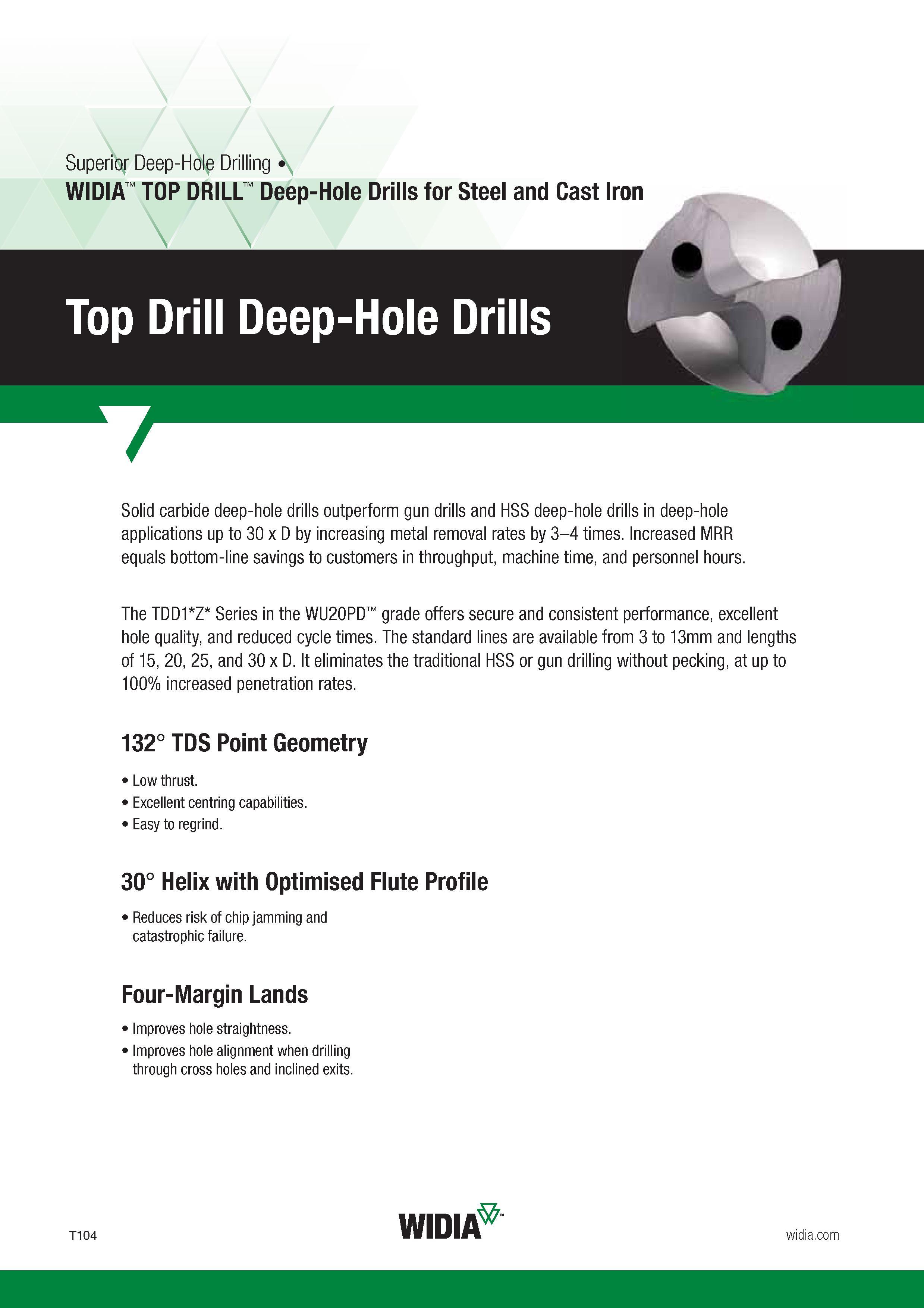

Superior Deep-Hole Drilling Widia TOP DRILL Deep-Hole Drills for Steel and Cast Iron Top Drill Deep-Hole Drills 1 r J 1 Solid carbide deep-hole drills outperform gun drills and HSS deep-hole drills in deep-hole applications up to 30 x D by increasing metal removal rates by 3-4 times. Increased MRR equals bottom-line savings to customers in throughput, machine time, and personnel hours. The TDD1 Z Series in the WU20PD grade offers secure and consistent performance, excellent hole quality, and reduced cycle times. The standard lines are available from 3 to 13mm and lengths of 15, 20, 25, and 30 x D. It eliminates the traditional HSS or gun drilling without pecking, at up to 100% increased penetration rates. 132° TDS Point Geometry Low thrust. Excellent centring capabilities. Easy to regrind. 30° Helix with Optimised Flute Profile Reduces risk of chip jamming and catastrophic failure. Four-Margin Lands Improves hole straightness. Improves hole alignment when drilling through cross holes and inclined exits.
