1417 Каталог WIDIA 2017 Режущий инструмент Пластины Резцы Фрезы Сверла Метчики Стр.T49

Каталог Widia 2017 Металлорежущий инструмент Стр. T49 1417 ENG Lab2u

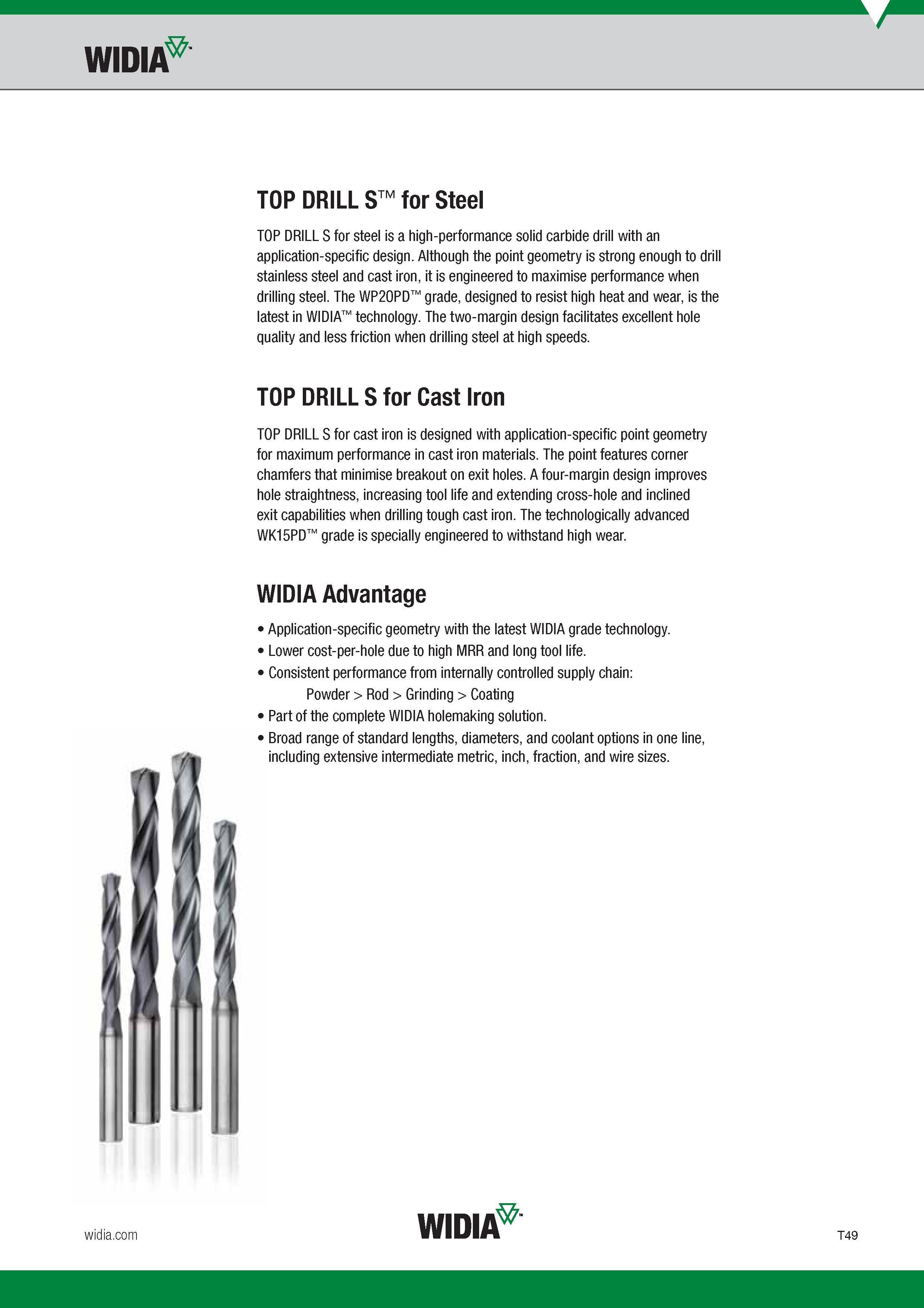

Widia TOP DRILL S for Steel TOP DRILL S for steel is a high-performance solid carbide drill with an application-specific design. Although the point geometry is strong enough to drill stainless steel and cast iron, it is engineered to maximise performance when drilling steel. The WP20PD grade , designed to resist high heat and wear, is the latest in Widia technology. The two-margin design facilitates excellent hole quality and less friction when drilling steel at high speeds. TOP DRILL S for Cast Iron TOP DRILL S for cast iron is designed with application-specific point geometry for maximum performance in cast iron materials. The point features corner chamfers that minimise breakout on exit holes. A four-margin design improves hole straightness, increasing tool life and extending cross-hole and inclined exit capabilities when drilling tough cast iron. The technologically advanced WK15PD grade is specially engineered to withstand high wear. Widia Advantage Application-specific geometry with the latest Widia grade technology. Lower cost-per-hole due to high MRR and long tool life. Consistent performance from internally controlled supply chain Powder Rod Grinding Coating Part of the complete Widia holemaking solution. Broad range of standard lengths, diameters, and coolant options in one line,
