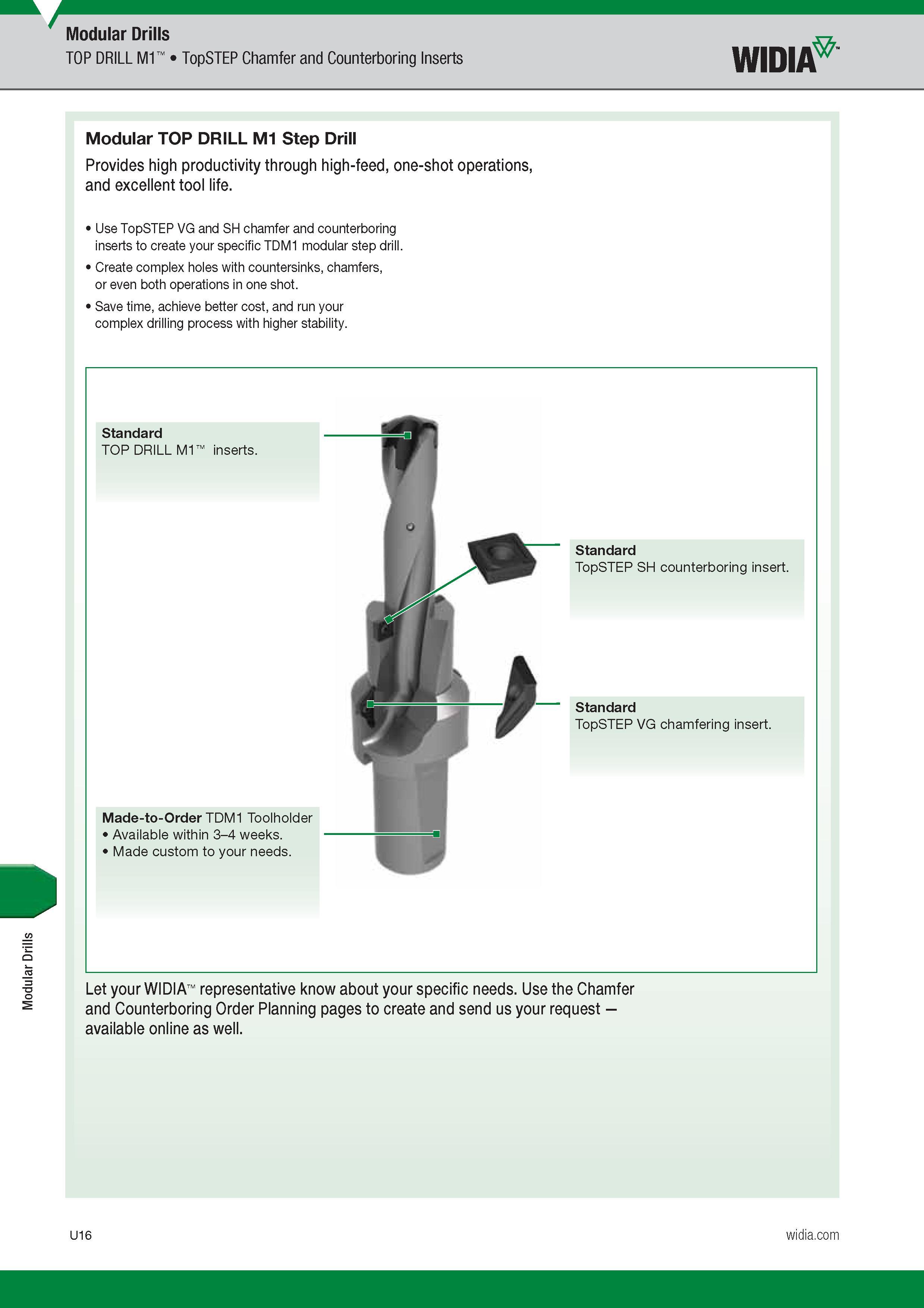

Modular Drills Modular Drills TOP DRILL M1 TopSTEP Chamfer and Counterboring Inserts Widia Modular TOP DRILL M1 Step Drill Provides high productivity through high-feed, one-shot operations, and excellent tool life. Use TopSTEP VG and SH chamfer and counterboring inserts to create your specific TDM1 modular step drill. Create complex holes with countersinks, chamfers, or even both operations in one shot. Save time, achieve better cost, and run your complex drilling process with higher stability. Standard TOP DRILL M1 inserts. Made-to-Order TDM1 Toolholder Available within 3-4 weeks. Made custom to your needs. Standard TopSTEP SH counterboring insert. Standard TopSTEP VG chamfering insert. Let your Widia representative know about your specific needs. Use the Chamfer and Counterboring Order Planning pages to create and send us your request -available online as well.
