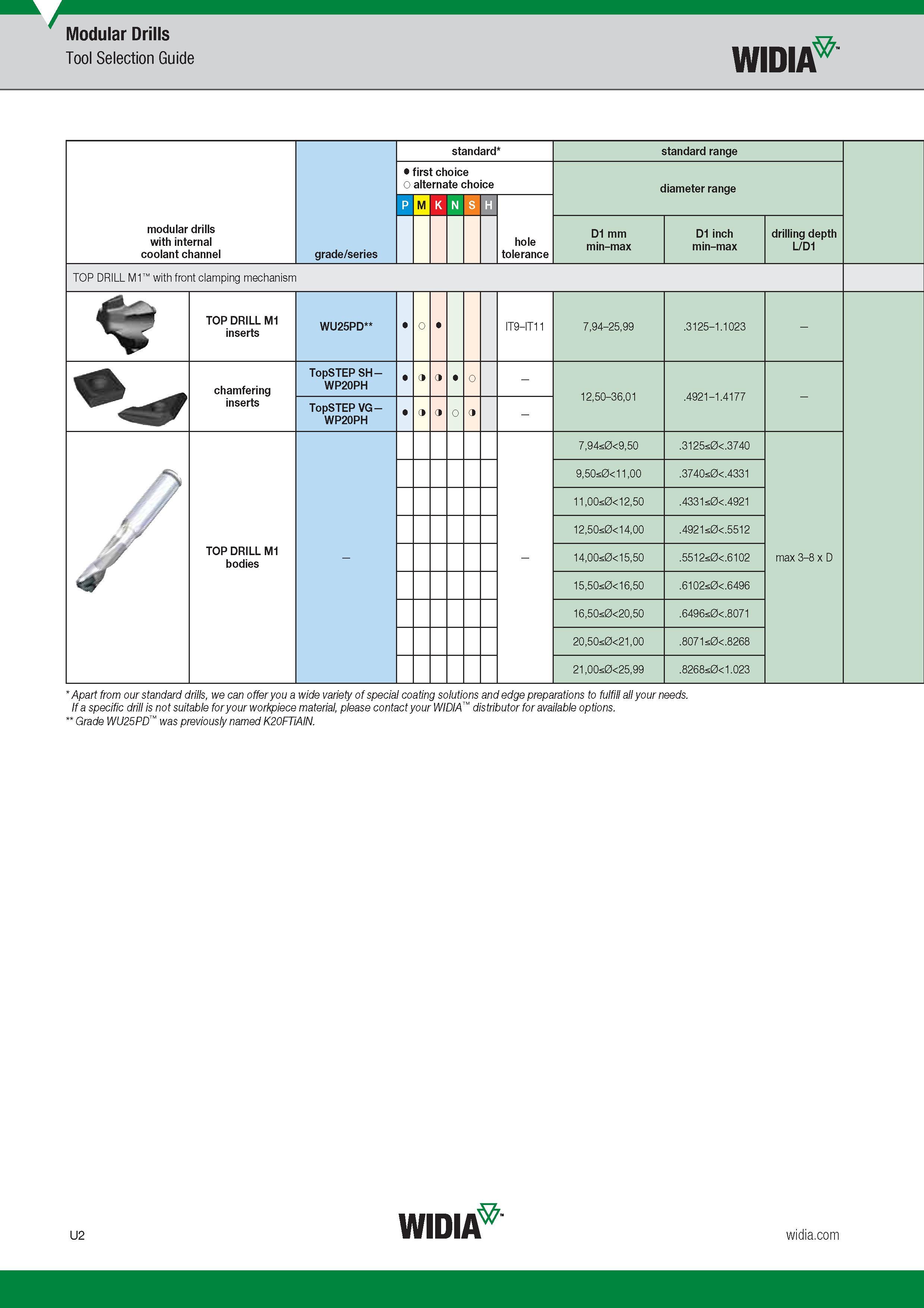

Modular Drills Tool Selection Guide Widia standard standard range Лучший и альтернативный выбор First and alternate choice diameter range P M K N S H modular drills with internal coolant channel grade /series hole tolerance D1 mm min-max D1 inch min-max drilling depth L/D1 TOP DRILL M1 with front clamping mechanism TOP DRILL M1 inserts WU25PD o IT9-IT11 7,94-25,99 .3125-1.1023 - chamfering TopSTEP SH-WP20PH 3 3 o - 12,50-36,01 .4921-1.4177 inserts TopSTEP VG-WP20PH o (1 - 7,94s0<9,50 .3125s0<.3740 9,50s0<11,00 .3740s0<.4331 11,00s0<12,50 .4331s0<.4921 /if 12,50s0<14,00 .4921s0<.5512 jst TOP DRILL M1 bodies 14,00s0<15,50 .5512s0<.6102 max 3-8 x D 4 15,50s0<16,50 .6102s0<.6496 16,50s0<20,50 .6496s0<.8071 20,50s0<21,00 .8071s0<.8268 21,00s0<25,99 .8268s0<1.023 Apart from our standard drills, we can offer you a wide variety of special coating solutions and edge preparations to fulfill all your needs. If a specific drill is not suitable for your workpiece material, please contact your Widia distributor for available options. Grade WU25PD was previously named K20FTiAlN.
