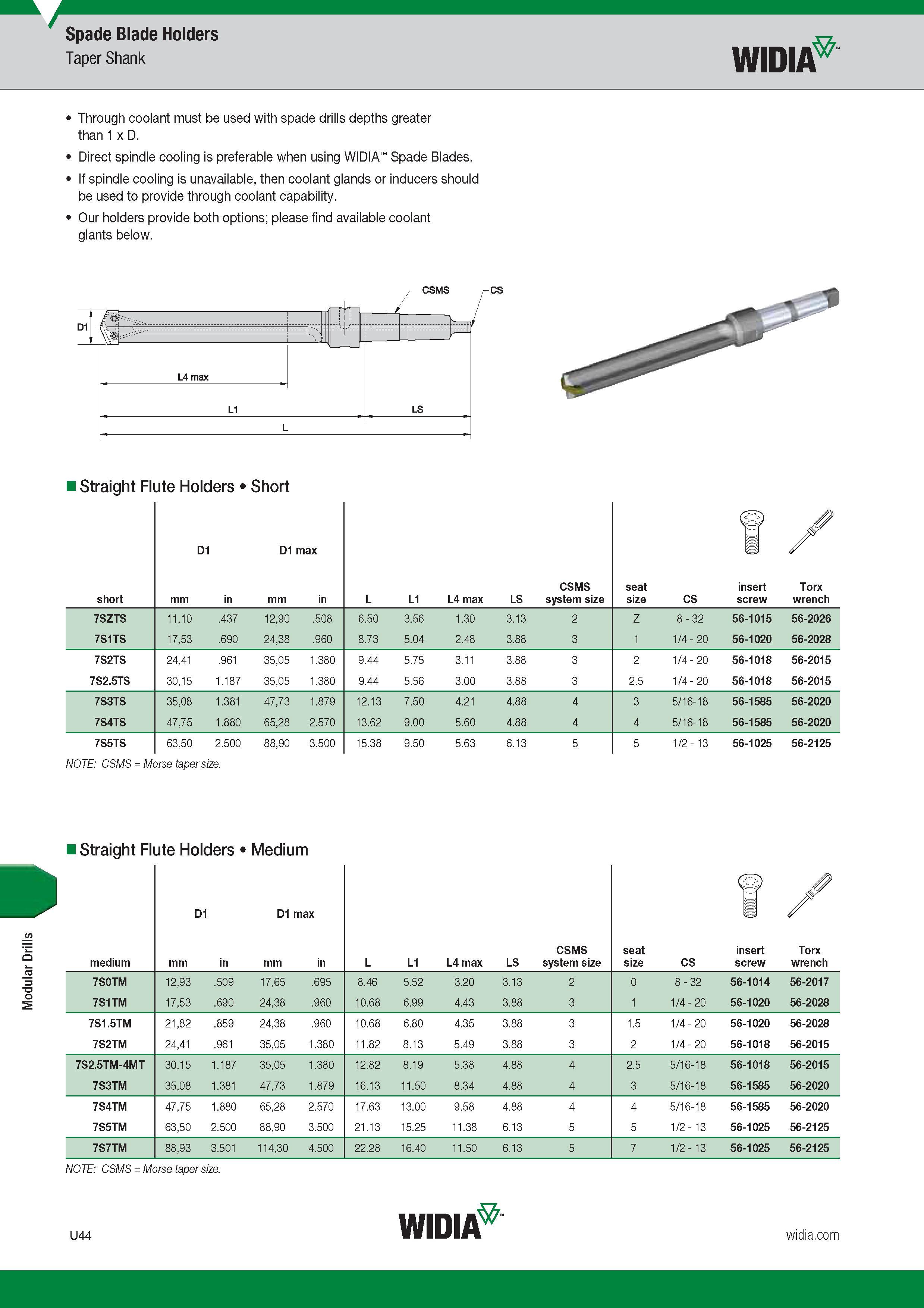

Modular Drills Spade Blade Holders Taper Shank Widia Through coolant must be used with spade drills depths greater than 1 x D. Direct spindle cooling is preferable when using Widia Spade Blades. I f spindle cooling is unavailable, then coolant glands or inducers should be used to provide through coolant capability. Our holders provide both options; please find available coolant glants below. CSMS rCS LS Straight Flute Holders Short short D1 mm in D1 max mm in L L1 L4 max LS CSMS system size seat size CS insert screw Torx wrench 7SZTS 11,10 .437 12,90 .508 6.50 3.56 1.30 3.13 2 Z 8 - 32 56-1015 56-2026 7S1TS 17,53 .690 24,38 .960 8.73 5.04 2.48 3.88 3 1 1/4 - 20 56-1020 56-2028 7S2TS 24,41 .961 35,05 1.380 9.44 5.75 3.11 3.88 3 2 1/4 - 20 56-1018 56-2015 7S2.5TS 30,15 1.187 35,05 1.380 9.44 5.56 3.00 3.88 3 2.5 1/4 - 20 56-1018 56-2015 7S3TS 35,08 1.381 47,73 1.879 12.13 7.50 4.21 4.88 4 3 5/16-18 56-1585 56-2020 7S4TS 47,75 1.880 65,28 2.570 13.62 9.00 5.60 4.88 4 4 5/16-18 56-1585 56-2020 7S5TS 63,50 2.500 88,90 3.500 15.38 9.50 5.63 6.13 5 5 1/2 - 13 56-1025 56-2125 NOTE CSMS Morse taper size. Straight Flute Holders Medium NOTE CSMS Morse taper size. U44 Widia
