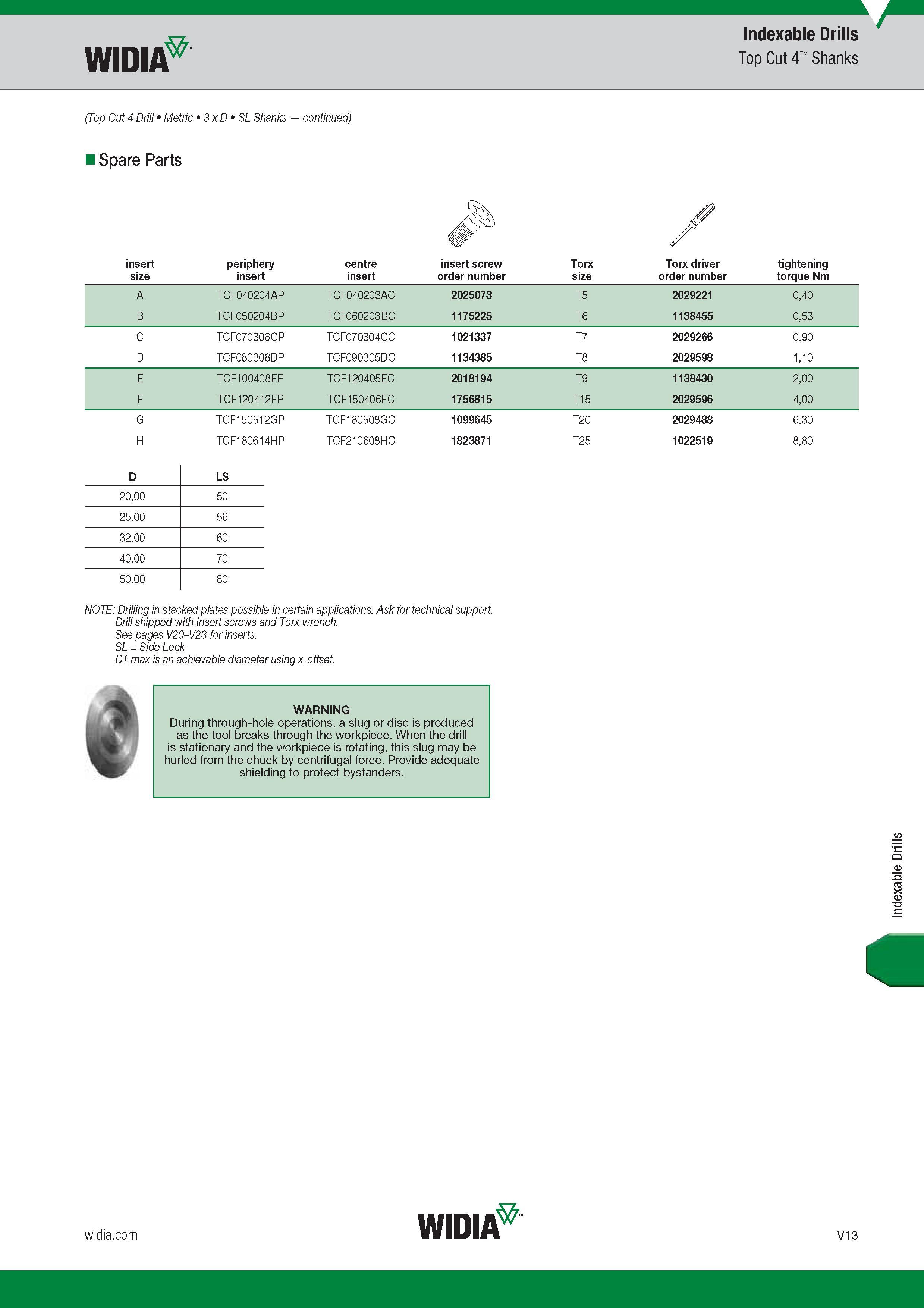

Widia Indexable Drills Top Cut 4 Shanks (Top Cut 4 Drill Metric 3 x D SL Shanks ) Запасные части к инструменту Spare Parts insert size periphery insert centre insert insert screw Номер для заказа продукции Order number Torx size Torx driver Номер для заказа продукции Order number tightening torque Nm A TCF040204AP TCF040203AC 2025073 T5 2029221 0,40 B TCF050204BP TCF060203BC 1175225 T6 1138455 0,53 C TCF070306CP TCF070304CC 1021337 T7 2029266 0,90 D TCF080308DP TCF090305DC 1134385 T8 2029598 1,10 E TCF100408EP TCF120405EC 2018194 T9 1138430 2,00 F TCF120412FP TCF150406FC 1756815 T15 2029596 4,00 G TCF150512GP TCF180508GC 1099645 T20 2029488 6,30 H TCF180614HP TCF210608HC 1823871 T25 1022519 8,80 D LS 20,00 50 25,00 56 32,00 60 40,00 70 50,00 80 NOTE Drilling in stacked plates possible in certain applications. Ask for technical support. Drill shipped with insert screws and Torx wrench. See pages V20-V23 for inserts. SL Side Lock D1 max is an achievable diameter using x-offset. WARNING During through-hole operations, a slug or disc is produced as the tool breaks through the workpiece. When the drill is stationary and the workpiece is rotating, this slug may be hurled from the chuck by centrifugal force. Provide adequate shielding to protect bystanders. Widia V13 Indexable Drills
