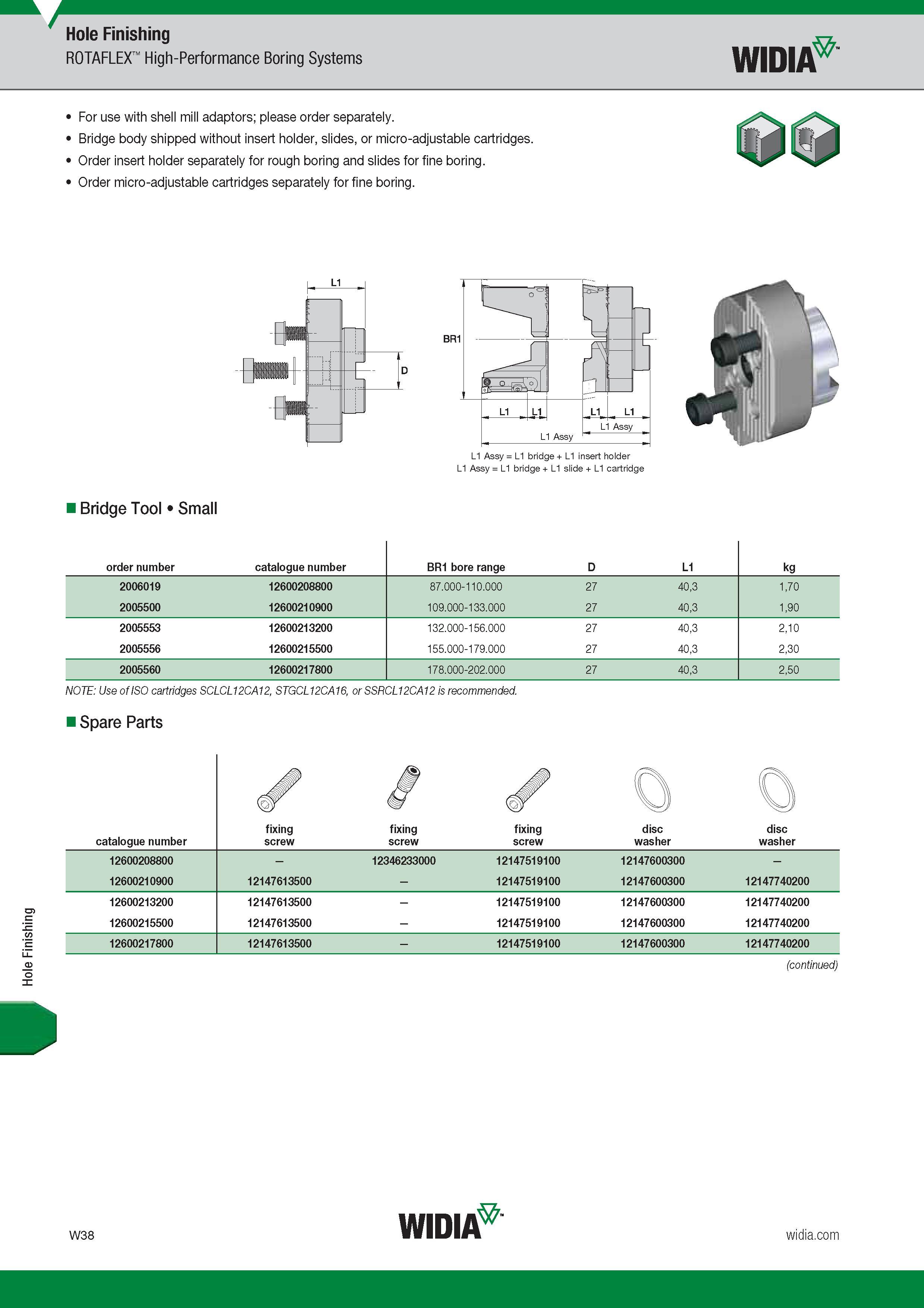

Hole Finishing Hole Finishing ROTAFLEX High-Performance Boring Systems Widia For use with shell mill adaptors; please order separately. Bridge body shipped without insert holder, slides, or micro-adjustable cartridges. Order insert holder separately for rough boring and slides for fine boring. Order micro-adjustable cartridges separately for fine boring. pm Qwiiil ijm. -E L1 Assy L1 bridge + L1 slide + L1 cartridge Bridge Tool Small Номер для заказа продукции Order number Catalogue number Обозначение инструмента по каталогу BR1 bore range D L1 kg 2006019 12600208800 87.000-110.000 27 40,3 1,70 2005500 12600210900 109.000-133.000 27 40,3 1,90 2005553 12600213200 132.000-156.000 27 40,3 2,10 2005556 12600215500 155.000-179.000 27 40,3 2,30 2005560 12600217800 178.000-202.000 27 40,3 2,50 NOTE Use of ISO cartridges SCLCL12CA12, STGCL12CA16, or SSRCL12CA12 is recommended. Запасные части к инструменту Spare Parts Catalogue number Обозначение инструмента по каталогу fixing screw fixing screw fixing screw disc washer disc washer 12600208800 - 12346233000 12147519100 12147600300 - 12600210900 12147613500 - 12147519100 12147600300 12147740200 12600213200 12147613500 - 12147519100 12147600300 12147740200 12600215500 12147613500 - 12147519100 12147600300 12147740200 12600217800 12147613500 - 12147519100 12147600300 12147740200
