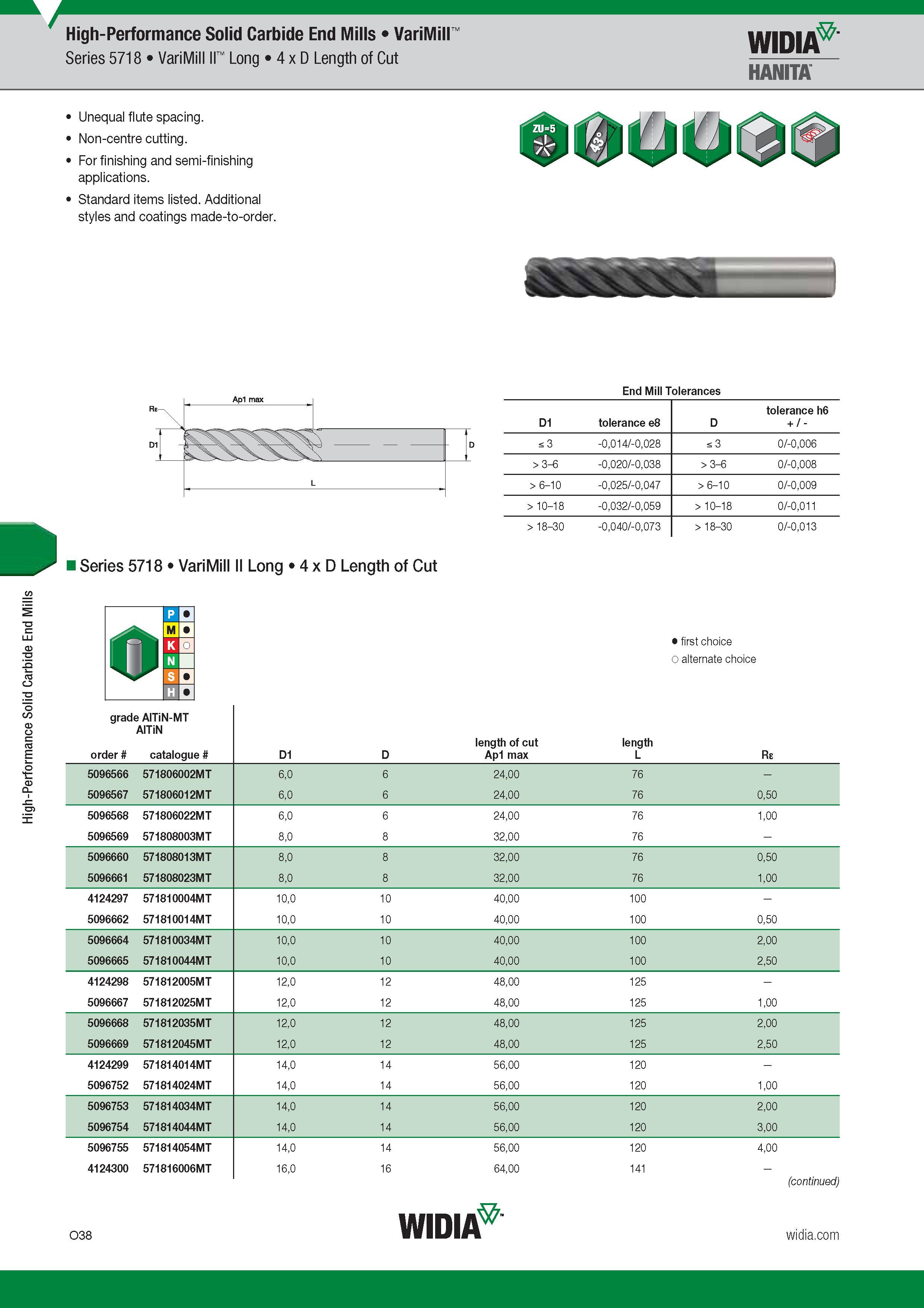

Solid Carbide End Mills Widia 5718 VariMill II Long 4 x D Length of Cut Unequal flute spacing Non-centre cutting For finishing and semi-finishing a

Solid Carbide End Mills Widia 5718 VariMill II Long 4 x D Length of Cut Unequal flute spacing. Non-centre cutting. For finishing and semi-finishing applications. Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances D1 tolerance e8 D tolerance h6 + / - 3 -0,014/-0,028 s 3 0/-0,006 3-6 -0,020/-0,038 3-6 0/-0,008 6-10 -0,025/-0,047 6-10 0/-0,009 10-18 -0,032/-0,059 10-18 0/-0,011 >18-30 -0,040/-0,073 >18-30 0/-0,013 Series 5718 VariMill II Long 4 x D Length of Cut First and alternate choice Основной и альтернативный выбор grade AlTiN-MT AlTiN order catalogue D1 D length of cut Ap1 max length L Re 5096566 571806002MT 6,0 6 24,00 76 - 5096567 571806012MT 6,0 6 24,00 76 0,50 5096568 571806022MT 6,0 6 24,00 76 1,00 5096569 571808003MT 8,0 8 32,00 76 - 5096660 571808013MT 8,0 8 32,00 76 0,50 5096661 571808023MT 8,0 8 32,00 76 1,00 4124297 571810004MT 10,0 10 40,00 100 - 5096662 571810014MT 10,0 10 40,00 100 0,50 5096664 571810034MT 10,0 10 40,00 100 2,00 5096665 571810044MT 10,0 10 40,00 100 2,50 4124298 571812005MT 12,0 12 48,00 125 - 5096667 571812025MT 12,0 12 48,00 125 1,00 5096668 571812035MT 12,0 12 48,00 125 2,00 5096669 571812045MT 12,0 12 48,00 125 2,50 4124299 571814014MT 14,0 14 56,00 120 - 5096752 571814024MT 14,0 14 56,00 120 1,00 5096753 571814034MT 14,0 14 56,00 120 2,00 5096754 571814044MT 14,0 14 56,00 120 3,00 5096755 571814054MT 14,0 14 56,00 120 4,00 4124300 571816006MT 16,0 16 64,00 141 - O38 Widia Solid Carbide End Mills High-Performance VariMill Series
