WIDIA | Каталог WIDIA 2017 Металлорежущий инструмент (Всего 1972 стр.) |
|||||
|

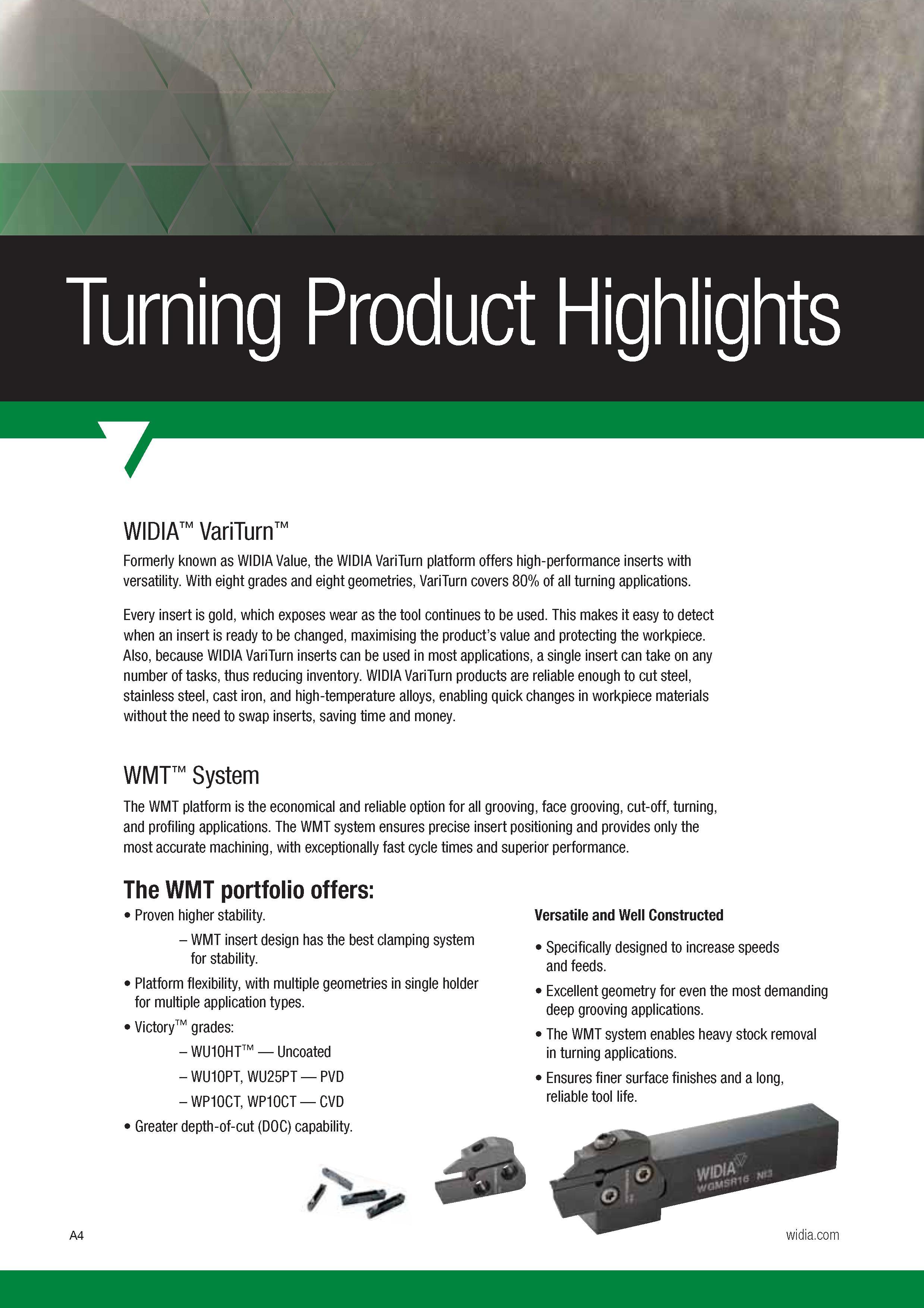

16 Каталог WIDIA 2017 Режущий инструмент Пластины Резцы Фрезы Сверла Метчики Стр.A4 |
|||||
the Widia VariTurn platform offers high-performance inserts with versatility With eight grade s and eight geometries, VariTurn covers 80% of all tuthe Widia VariTurn platform offers high-performance inserts with versatility. With eight grade s and eight geometries, VariTurn covers 80% of all turning applications. Every insert is gold, which exposes wear as the tool continues to be used. This makes it easy to detect when an insert is ready to be changed, maximising the product’s value and protecting the workpiece. Also, because Widia VariTurn inserts can be used in most applications, a single insert can take on any number of tasks, thus reducing inventory. Widia VariTurn products are reliable enough to cut steel, stainless steel, cast iron, and high-temperature alloys, enabling quick changes in workpiece materials without the need to swap inserts, saving time and money. WMT System The WMT platform is the economical and reliable option for all grooving, face grooving, cut-off, turning, and profiling applications. The WMT system ensures precise insert positioning and provides only the most accurate machining, with exceptionally fast cycle times and superior performance. The WMT portfolio offers Proven higher stability. - WMT insert design has the best clamping system for stability. Platform flexibility, with multiple geometries in single holder for multiple application types. Victory grade s - WU10HT Uncoated - WU10PT, WU25PT PVD - WP10CT, WP10CT CVD Greater depth-of-cut (DOC) capability. Versatile and Well Constructed Specifically designed to increase speeds and feeds. Excellent geometry for even the most demanding deep grooving applications. The WMT system enables heavy stock removal in turning applications. Ensures finer surface finishes and a long, reliable tool life. A4 I Turning Product Highlights 7 Widia VariTurn Formerly known as Widia Value, |
|||||
