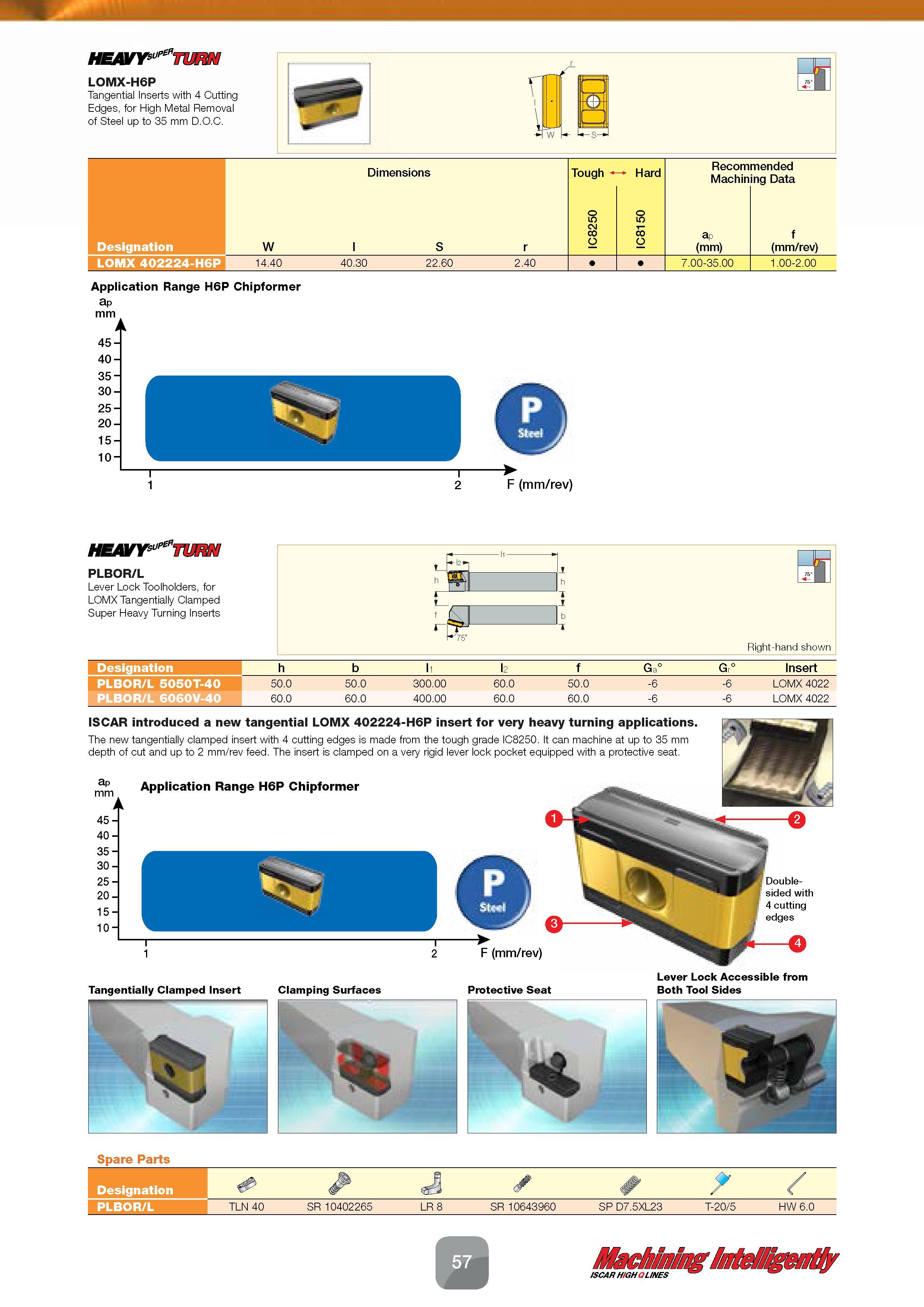

Область применения и основные элементы конструкции тангенциально закрепляемых режущих пластин Iscar LOMX-H6P предназначенных для тяжелого точения

Область применения и основные элементы конструкции тангенциально закрепляемых режущих пластин Iscar LOMX-H6P предназначенных для тяжелого точения

Область применения и основные элементы конструкции тангенциально закрепляемых режущих пластин Iscar LOMX-H6P предназначенных для тяжелого точения Tangential Inserts with 4 Cutting Edges, for High Metal Removal of Steel up to 35 mm D.O.C. n Ei Dimensions Recommended Machining Data Designation W l S r IC8250 IC8150 ap (mm) f (mm/rev) LOMX 402224-H6P 14.40 40.30 22.60 2.40 7.00-35.00 1.00-2.00 Application Range H6P Chipformer ap 45- 40- 35- 30- 25- 20- 15- 10- F (mm/rev) W S mm 1 HEA¥Yup£PTURN PLBOR/L Lever Lock Toolholders, for LOMX Tangentially Clamped Super Heavy Turning Inserts Ei Right-hand shown Designation h b ll l2 f Ga° Gr° Insert PLBOR/L 5050T-40 50.0 50.0 300.00 60.0 50.0 -6 -6 LOMX 4022 PLBOR/L 6060V-40 60.0 60.0 400.00 60.0 60.0 -6 -6 LOMX 4022 ISCAR introduced a new tangential LOMX 402224-H6P insert for very heavy turning applications. The new tangentially clamped insert with 4 cutting edges is made from the tough grade IC8250. It can machine at up to 35 mm depth of cut and up to 2 mm/rev feed. The insert is clamped on a very rigid lever lock pocket equipped with a protective seat. ap mm A 45 40353025201510- Application Range H6P Chipformer Tangentially Clamped Insert Clamping Surfaces F (mm/rev) Protective Seat Lever Lock Accessible from Both Tool Sides Spare Parts Designation J s y / PLBOR/L TLN 40 SR 10402265 LR 8 SR 10643960 SP D7.5XL23 T-20/5 HW 6.0 ISCAR HGH LINES 2
