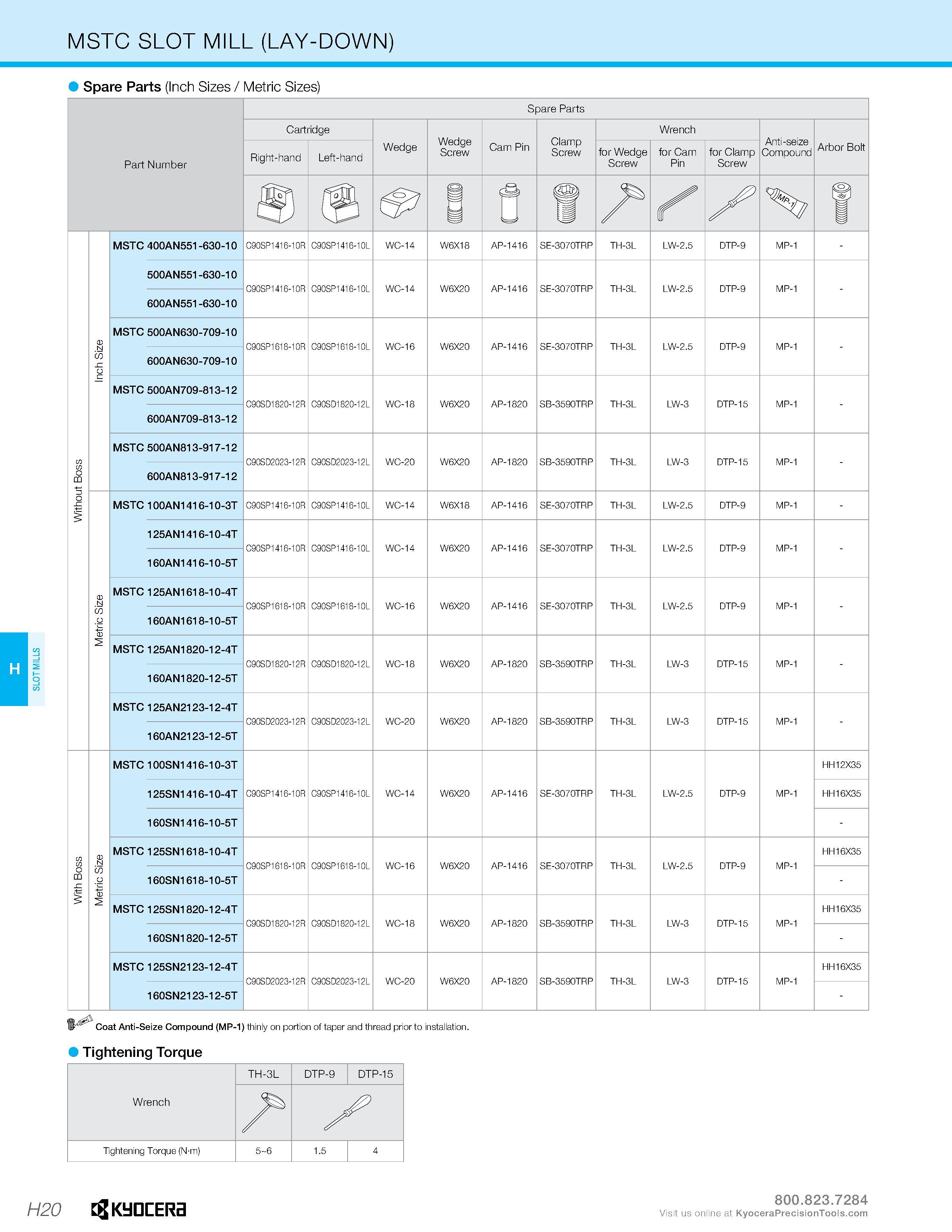

SLOT MILLS MSTC SLOT MILL (LAY-DOWN) Spare Parts (Inch Sizes / Metric Sizes) Part Number Spare Parts Cartridge Wedge Wedge Screw Cam Pin Clamp Screw Wrench Anti-seize Compound Arbor Bolt Right-hand Left-hand for Wedge Screw for Cam Pin for Clamp Screw s (B 0 Ilf S Without Boss e N o c MSTC 400AN551-630-10 C90SP1416-10R C90SP1416-10L WC-14 W6X18 AP-1416 SE-3070TRP TH-3L LW-2.5 DTP-9 MP-1 - 500AN551-630-10 C90SP1416-10R C90SP1416-10L WC-14 W6X20 AP-1416 SE-3070TRP TH-3L LW-2.5 DTP-9 MP-1 - 600AN551-630-10 MSTC 500AN630-709-10 C90SP1618-10R C90SP1618-10L WC-16 W6X20 AP-1416 SE-3070TRP TH-3L LW-2.5 DTP-9 MP-1 - 600AN630-709-10 MSTC 500AN709-813-12 C90SD1820-12R C90SD1820-12L WC-18 W6X20 AP-1820 SB-3590TRP TH-3L LW-3 DTP-15 MP-1 - 600AN709-813-12 MSTC 500AN813-917-12 C90SD2023-12R C90SD2023-12L WC-20 W6X20 AP-1820 SB-3590TRP TH-3L LW-3 DTP-15 MP-1 - 600AN813-917-12 0 N , O et 2 MSTC 100AN1416-10-3T C90SP1416-10R C90SP1416-10L WC-14 W6X18 AP-1416 SE-3070TRP TH-3L LW-2.5 DTP-9 MP-1 - 125AN1416-10-4T C90SP1416-10R C90SP1416-10L WC-14 W6X20 AP-1416 SE-3070TRP TH-3L LW-2.5 DTP-9 MP-1 - 160AN1416-10-5T MSTC 125AN1618-10-4T C90SP1618-10R C90SP1618-10L WC-16 W6X20 AP-1416 SE-3070TRP TH-3L LW-2.5 DTP-9 MP-1 - 160AN1618-10-5T MSTC 125AN1820-12-4T C90SD1820-12R C90SD1820-12L WC-18 W6X20 AP-1820 SB-3590TRP TH-3L LW-3 DTP-15 MP-1 - 160AN1820-12-5T MSTC 125AN2123-12-4T C90SD2023-12R C90SD2023-12L WC-20 W6X20 AP-1820 SB-3590TRP TH-3L LW-3 DTP-15 MP-1 - 160AN2123-12-5T With Boss 0 N O et 2 MSTC 100SN1416-10-3T C90SP1416-10R C90SP1416-10L WC-14 W6X20 AP-1416 SE-3070TRP TH-3L LW-2.5 DTP-9 MP-1 HH12X35 125SN1416-10-4T HH16X35 160SN1416-10-5T - MSTC 125SN1618-10-4T C90SP1618-10R C90SP1618-10L WC-16 W6X20 AP-1416 SE-3070TRP TH-3L LW-2.5 DTP-9 MP-1 HH16X35 160SN1618-10-5T - MSTC 125SN1820-12-4T C90SD1820-12R C90SD1820-12L WC-18 W6X20 AP-1820 SB-3590TRP TH-3L LW-3 DTP-15 MP-1 HH16X35 160SN1820-12-5T - MSTC 125SN2123-12-4T C90SD2023-12R C90SD2023-12L WC-20 W6X20 AP-1820 SB-3590TRP TH-3L LW-3 DTP-15 MP-1 HH16X35 160SN2123-12-5T - Coat Anti-Seize Compound (MP-1) thinly on portion of taper and thread prior to installation. Tightening Torque Wrench TH-3L DTP-9 DTP-15 Tightening Torque (N-m) 5 6 1.5 4 H20 Kyocera
