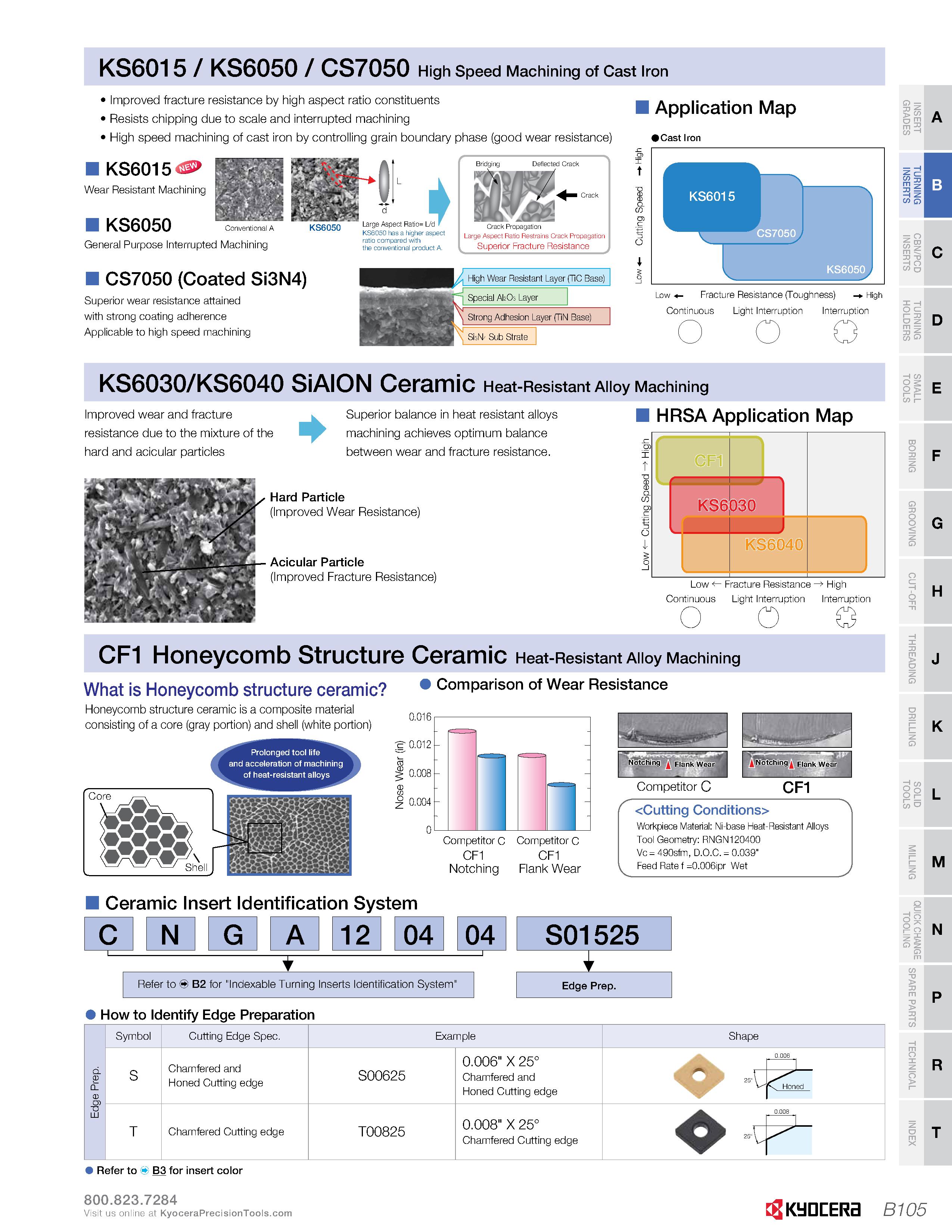

KS6015 / KS6050 / CS7050 High Speed Machining of Cast Iron 1 Improved fracture resistance by high aspect ratio constituents 1 Resists chipping due to scale and interrupted machining 1 High speed machining of cast iron by controlling grain boundary phase (good wear resistance) KS6015 SS > Wear Resistant Machining KS6050 Conventional A General Purpose Interrupted Machining CS7050 (Coated Si3N4) Superior wear resistance attained with strong coating adherence Applicable to high speed machining Large Aspect Ratio= Lv'd t KS6050 has a higher aspect ratio compared with the conventional product A. Deflected Crack Crack Propagation Large Aspect Ratio Restrains Crack Propagation Superior Fracture Resistance High Wear Resistant Layer (TiC Base) Special AfcOs Layer Strong Adhesion Layer (TiN Base) SisN- Sub Strate Application Map Cast Iron Low Fracture Resistance (Toughness) - High Continuous Light Interruption Interruption O cz I- T> O m = KS6030/KS6040 SiAlON Ceramic Heat-Resistant Alloy Machining HRSA Application Map Improved wear and fracture resistance due to the mixture of the hard and acicular particles Superior balance in heat resistant alloys machining achieves optimum balance between wear and fracture resistance. Hard Particle (Improved Wear Resistance) Acicular Particle (Improved Fracture Resistance) Low Fracture Resistance > High Continuous Light Interruption Interruption CF1 Honeycomb Structure Ceramic Heat-Resistant Alloy Machining Comparison of Wear Resistance What is Honeycomb structure ceramic Honeycomb structure ceramic is a composite material consisting of a core (gray portion) and shell (white portion) Prolonged tool life and acceleration of machining of heat-resistant alloys 0.016 p ; 0.012 -0.008 -0.004 -0 - Notching Flank Wear Flank Wear Competitor C CF1 Competitor C Competitor C CF1 CF1 Notching Flank Wear Cutting Conditions> Workpiece Material: Ni-base Heat-Resistant Alloys Tool Geometry: RNGN120400 Vc = 490sfm, D.O.C. = 0.039" Feed Rate f =0.006ipr Wet Ceramic Insert Identification System C N G A 12 04 04 S01525 Refer to B2 for "Indexable Turning Inserts Identification System" How to Identify Edge Preparation ▼ Edge Prep. H K M N Symbol Cutting Edge Spec. Chamfered and Honed Cutting Chamfered Cutting edge Example Shape S00625 T00825 0.006" X 25° Chamfered and Honed Cutting edge 0.008" X 25° Chamfered Cutting Refer to B3 for insert color Visit us online at Kyocera B105
