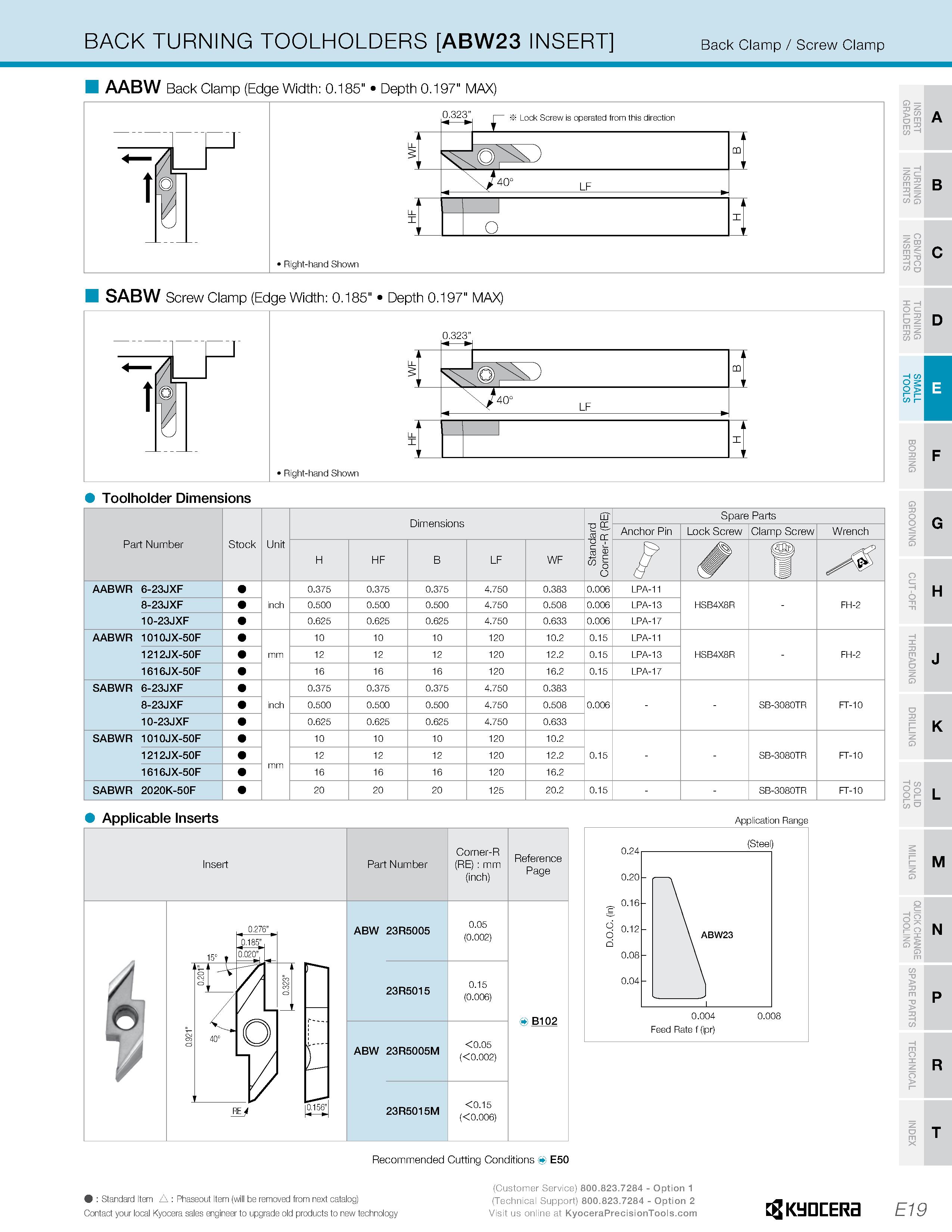

BACK TURNING TOOLHOLDERS ABW23 INSERT Back Clamp / Screw Clamp AABW Back Clamp (Edge Width: 0.185" Depth 0.197" MAX) O m A SS A “ Right-hand Shown C/> Q B SABW Screw Clamp (Edge Width: 0.185" Depth 0.197" MAX) Right-hand Shown Toolholder Dimensions Part Number Stock Unit Dimensions Standard Corner-R (RE) Spare Parts Anchor Pin Lock Screw Clamp Screw Wrench H HF B LF WF r u AABWR 6-23JXF inch 0.375 0.375 0.375 4.750 0.383 0.006 LPA-11 HSB4X8R - FH-2 8-23JXF 0.500 0.500 0.500 4.750 0.508 0.006 LPA-13 10-23JXF 0.625 0.625 0.625 4.750 0.633 0.006 LPA-17 AABWR 1010JX-50F mm 10 10 10 120 10.2 0.15 LPA-11 HSB4X8R - FH-2 1212JX-50F 12 12 12 120 12.2 0.15 LPA-13 1616JX-50F 16 16 16 120 16.2 0.15 LPA-17 SABWR 6-23JXF inch 0.375 0.375 0.375 4.750 0.383 0.006 - - SB-3080TR FT-10 8-23JXF 0.500 0.500 0.500 4.750 0.508 10-23JXF 0.625 0.625 0.625 4.750 0.633 SABWR 1010JX-50F mm 10 10 10 120 10.2 0.15 - - SB-3080TR FT-10 1212JX-50F 12 12 12 120 12.2 1616JX-50F 16 16 16 120 16.2 SABWR 2020K-50F 20 20 20 125 20.2 0.15 - - SB-3080TR FT-10 O CZ I- T> O m = H K Applicable Inserts Application Insert REy Corner-R Part Number (RE): mm (inch) ABW 23R5005 0.05 (0.002) 23R5015 0.15 (0.006) ABW 23R5005M 0.05 ( 0.002) 23R5015M 0.15 ( 0.006) Reference Page ft B102 M N Recommended Cutting Conditions E50 : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at Kyocera E19
