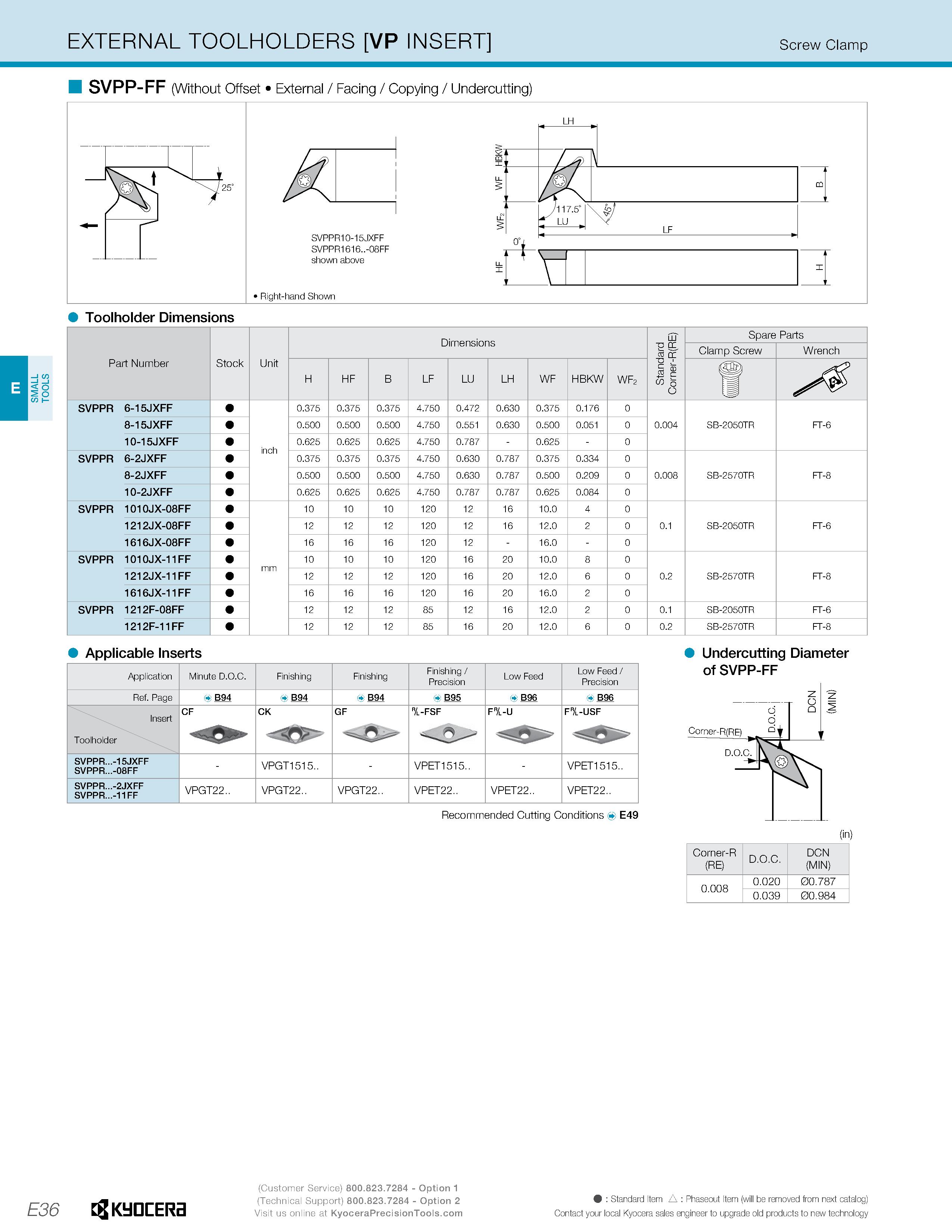

SMALL TOOLS EXTERNAL TOOLHOLDERS VP INSERT Screw Clamp H SVPP-FF (Without Offset External / Facing / Copying / Undercutting) SVPPR10-15JXFF SVPPR1616..-08FF shown above Right-hand Shown Toolholder Dimensions Part Number Stock Unit Dimensions Standard Corner-R(RE) Spare Parts Clamp Screw Wrench H HF B LF LU LH WF HBKW wf2 u SVPPR 6-15JXFF inch 0.375 0.375 0.375 4.750 0.472 0.630 0.375 0.176 0 0.004 SB-2050TR FT-6 8-15JXFF 0.500 0.500 0.500 4.750 0.551 0.630 0.500 0.051 0 10-15JXFF 0.625 0.625 0.625 4.750 0.787 - 0.625 - 0 SVPPR 6-2JXFF 0.375 0.375 0.375 4.750 0.630 0.787 0.375 0.334 0 0.008 SB-2570TR FT-8 8-2JXFF 0.500 0.500 0.500 4.750 0.630 0.787 0.500 0.209 0 10-2JXFF 0.625 0.625 0.625 4.750 0.787 0.787 0.625 0.084 0 SVPPR 1010JX-08FF mm 10 10 10 120 12 16 10.0 4 0 0.1 SB-2050TR FT-6 1212JX-08FF 12 12 12 120 12 16 12.0 2 0 1616JX-08FF 16 16 16 120 12 - 16.0 - 0 SVPPR 101OJX-11 FF 10 10 10 120 16 20 10.0 8 0 0.2 SB-2570TR FT-8 1212JX-11 FF 12 12 12 120 16 20 12.0 6 0 1616JX-11 FF 16 16 16 120 16 20 16.0 2 0 SVPPR 1212F-08FF 12 12 12 85 12 16 12.0 2 0 0.1 SB-2050TR FT-6 1212F-11 FF 12 12 12 85 16 20 12.0 6 0 0.2 SB-2570TR FT-8 Applicable Inserts Application Minute D.O.C. Finishing Finishing Finishing / Precision Low Feed Low Feed / Precision Ref. Page B94 B94 B94 B95 B96 B96 Insert OF CK GF r/l-FSF Fr/l-U Fr/l-USF Toolholder SVPPR...-15JXFF SVPPR...-08FF - VPGT1515.. - VPET1515.. - VPET1515.. SVPPR...-2JXFF SVPPR...-11 FF VPGT22.. VPGT22.. VPGT22.. VPET22.. VPET22.. VPET22.. Recommended Cutting Conditions fe E49 Undercutting Diameter of SVPP-FF Corner-R (RE) D.O.C. DCN (MIN) 0.008 0.020 00.787 0.039 00.984 E36 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 Visit us online at : Standard Item A : Phaseout Item (will be removed from next catalog) Contact your local Kyocera sales engineer to upgrade old products to new technology
