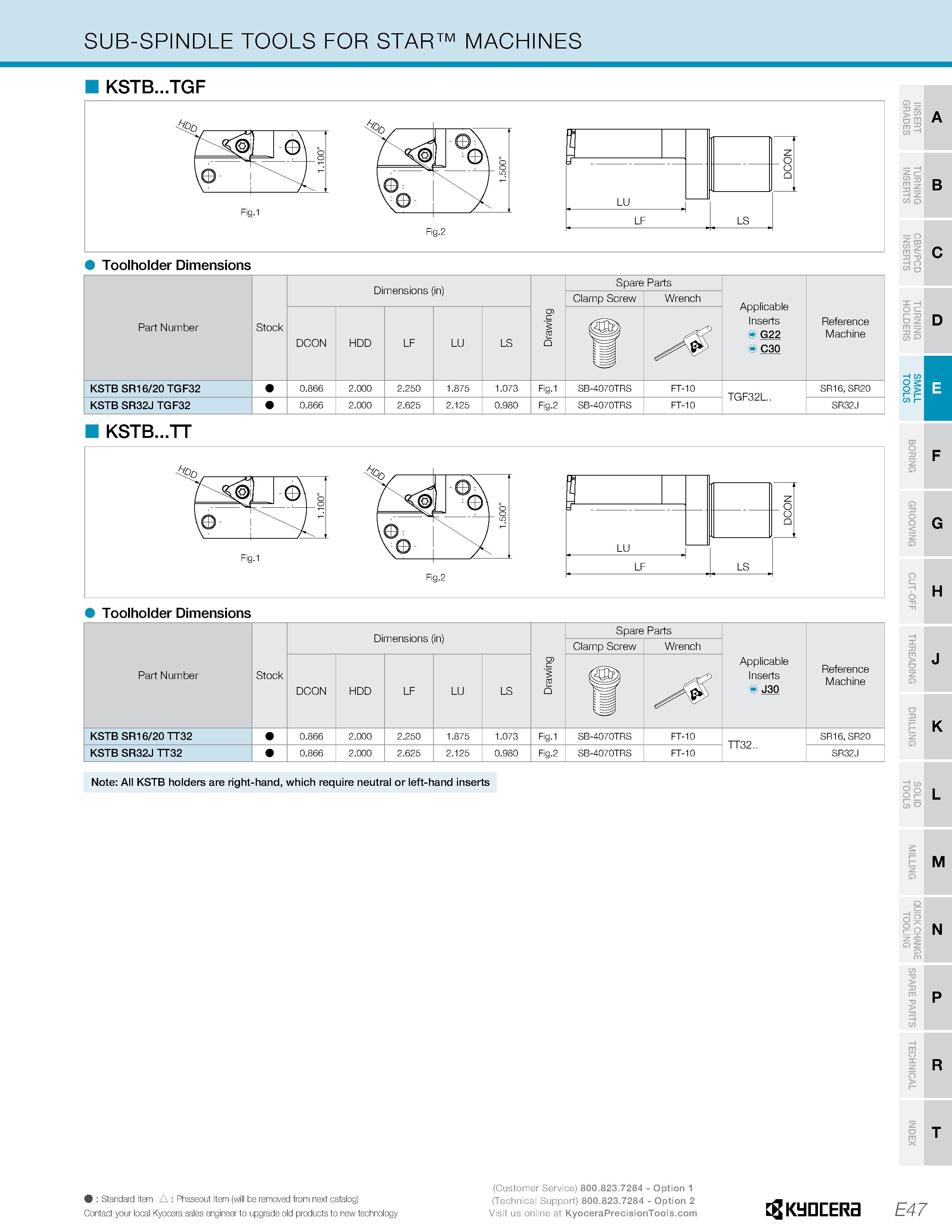

SUB-SPINDLE TOOLS FOR STAR MACHINES KSTB...TGF LU LF LS A DO "O B C D Toolholder Dimensions Part Number Stock Dimensions (in) Drawing Spare Parts Applicable Inserts G22 C30 Reference Machine Clamp Screw Wrench DCON HDD LF LU LS KSTB SR16/20 TGF32 0.866 2.000 2.250 1.875 1.073 Fig.1 SB-4070TRS FT-10 TGF32L.. SR16, SR20 KSTB SR32J TGF32 0.866 2.000 2.625 2.125 0.980 Fig.2 SB-4070TRS FT-10 SR32J KSTB...TT 0 1 N Q LU LF LS Toolholder Dimensions Part Number Stock Dimensions (in) Drawing Spare Parts Applicable Inserts J30 Reference Machine Clamp Screw Wrench DCON HDD LF LU LS Hi KSTB SR16/20 TT32 0.866 2.000 2.250 1.875 1.073 Fig.1 SB-4070TRS FT-10 TT32.. SR16, SR20 KSTB SR32J TT32 0.866 2.000 2.625 2.125 0.980 Fig.2 SB-4070TRS FT-10 SR32J o cz - o > I N Q G H K Note: All KSTB holders are right-hand, which require neutral or left-hand inserts M N p R T F J L (Customer Service) - Option 1 : Standard Item A : Phaseout Item (will be removed from next catalog) (Technical Support) - Option 2 Contact your local Kyocera sales engineer to upgrade old products to new technology Visit us online at Kyocera E47
