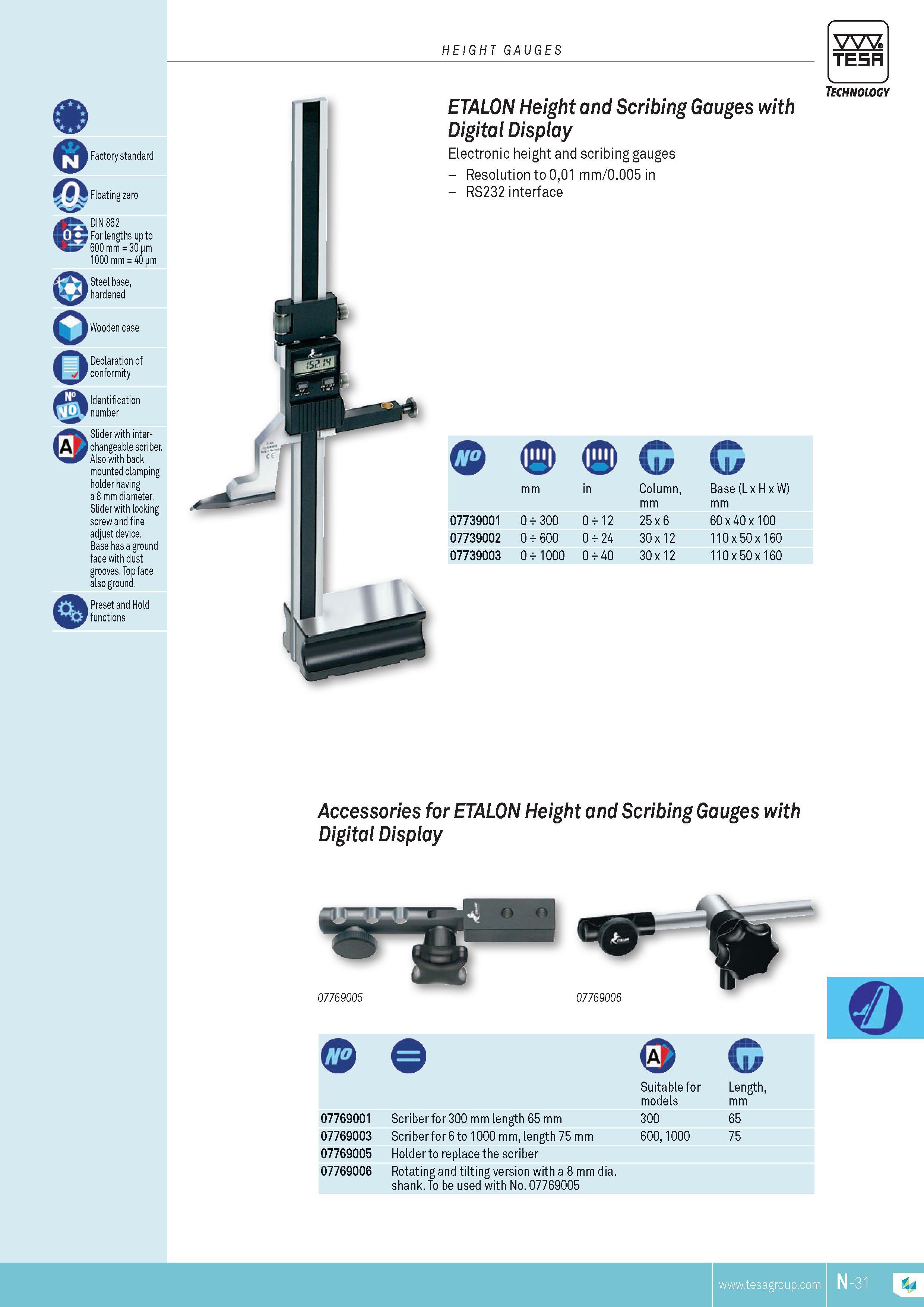

HEIGHT GAUGES TESA Factory standard Floating zero DIN 862 For lengths up to 600 mm 30 pm 1000 mm 40 pm Steel base hardened Wooden case Declaration of conformity Identification number Slider with interchangeable scriber. Also with back mounted clamping holder having a 8 mm diameter. Slider with locking screw and fine adjust device. Base has a ground face with dust grooves. Top face also ground. Preset and Hold functions ETALON Height and Scribing Gauges with Digital Display Electronic height and scribing gauges Resolution to 001 mm 0.005 in RS232 interface Technology Q B B Q C mm in Column mm Base (L x H x W) mm 07739001 O I- 3 0 12 25 x 6 60 x 40 x 100 07739002 o I- 6 0 24 30 x 12 110 x 50 x 160 07739003 0 1000 0 40 30 x 12 110 x 50 x 160 Accessories for ETALON Height and Scribing Gauges with Digital Display Suitable for Length models mm 07769001 Scriber for 300 mm length 65 mm 300 65 07769003 Scriber for 6 to 1000 mm length 75 mm 600 1000 75 07769005 Holder to replace the scriber 07769006 Rotating and tilting version with a 8 mm dia. shank. To be used with No. 07769005
