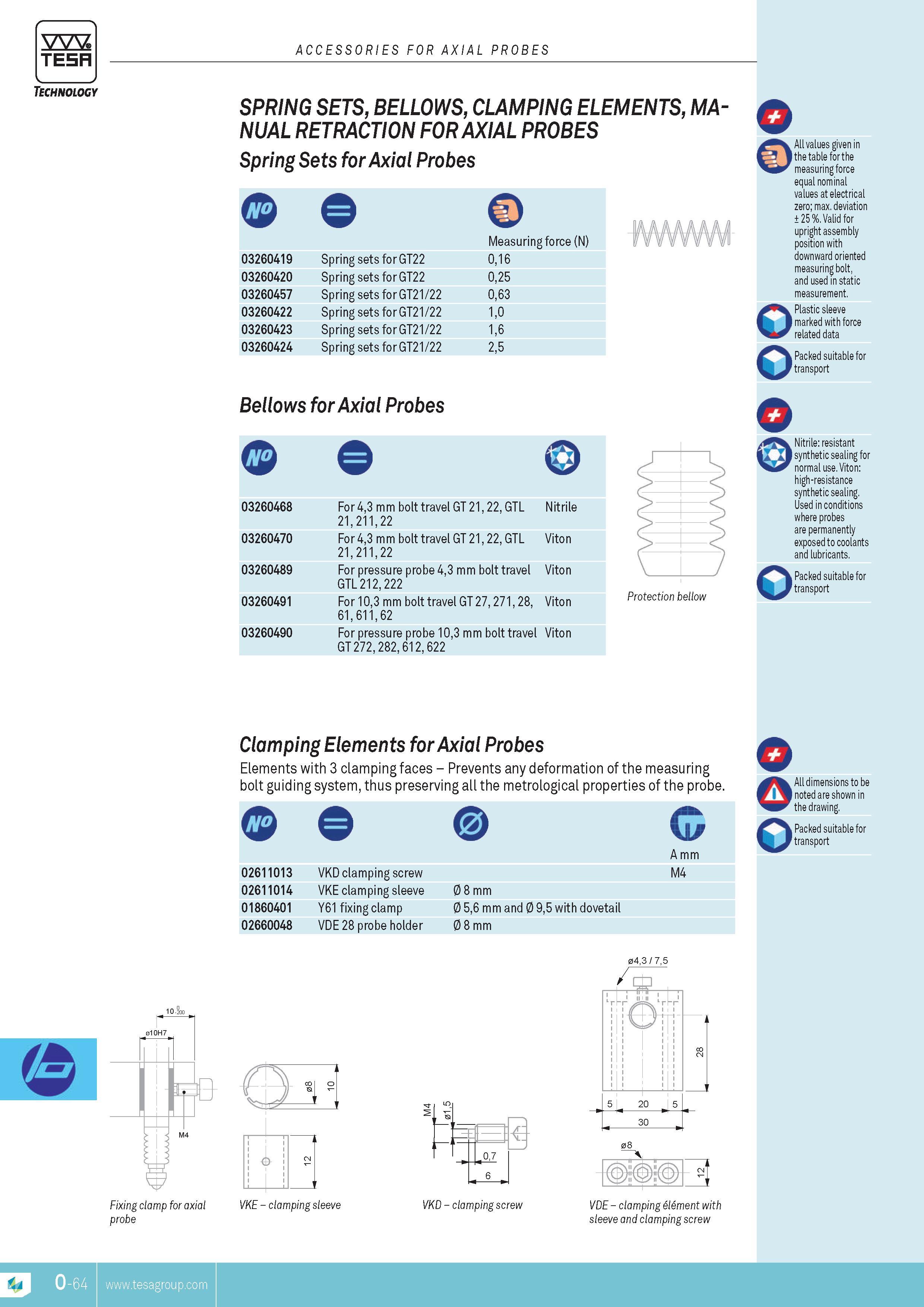

TESA ACCESSORIES FOR AXIAL PROBES Technology SPRING SETS BELLOWS CLAMPING ELEMENTS MANUAL RETRACTION FOR AXIAL PROBES Spring Sets for Axial Probes Measuring force ( 016 025 063 10 16 25 03260419 Spring sets for GT22 03260420 Spring sets for GT22 03260457 Spring sets for GT21 22 03260422 Spring sets for GT21 22 03260423 Spring sets for GT21 22 03260424 Spring sets for GT21 22 bellows for Axial probes 03260468 For 43 mm bolt travel GT 21 22 GTL Nitrile 2121122 03260470 For 43 mm bolt travel GT 21 22 GTL Viton 2121122 03260489 For pressure probe 43 mm bolt travel Viton GTL 212 222 03260491 For 103 mm bolt travel GT 27 271 28 Viton 6161162 03260490 For pressure probe 103 mm bolt travel Viton GT 272 282 612 622 Protection bellow G All values given in the table for the measuring force equal nominal values at electrical zero; max. deviation 25 %. Valid for upright assembly position with downward oriented measuring bolt and used in static MEASUREMENT. plastic sleeve marked with force related data packed suitable for transport nitrile resistant synthetic sealing for normal use. Viton high-resistance synthetic sealing. Used in conditions where probes are permanently exposed to coolants and lubricants. packed suitable for transport clamping Elements for Axial probes Elements with 3 clamping faces Prevents any deformation of the measuring bolt guiding system thus preserving all the metrological properties of the probe. e G A mm 02611013 VKD clamping screw M4 02611014 VKE clamping sleeve 0 8 mm 01860401 Y61 fixing clamp 0 56 mm and 0 95 with dovetail 02660048 VDE 28 probe holder 0 8 mm All dimensions to be noted are shown in the drawing. Packed suitable for transport S 4- .07 6 probe VKD clamping screw ii 4 VDE clamping element with sleeve and clamping screw 043 75
