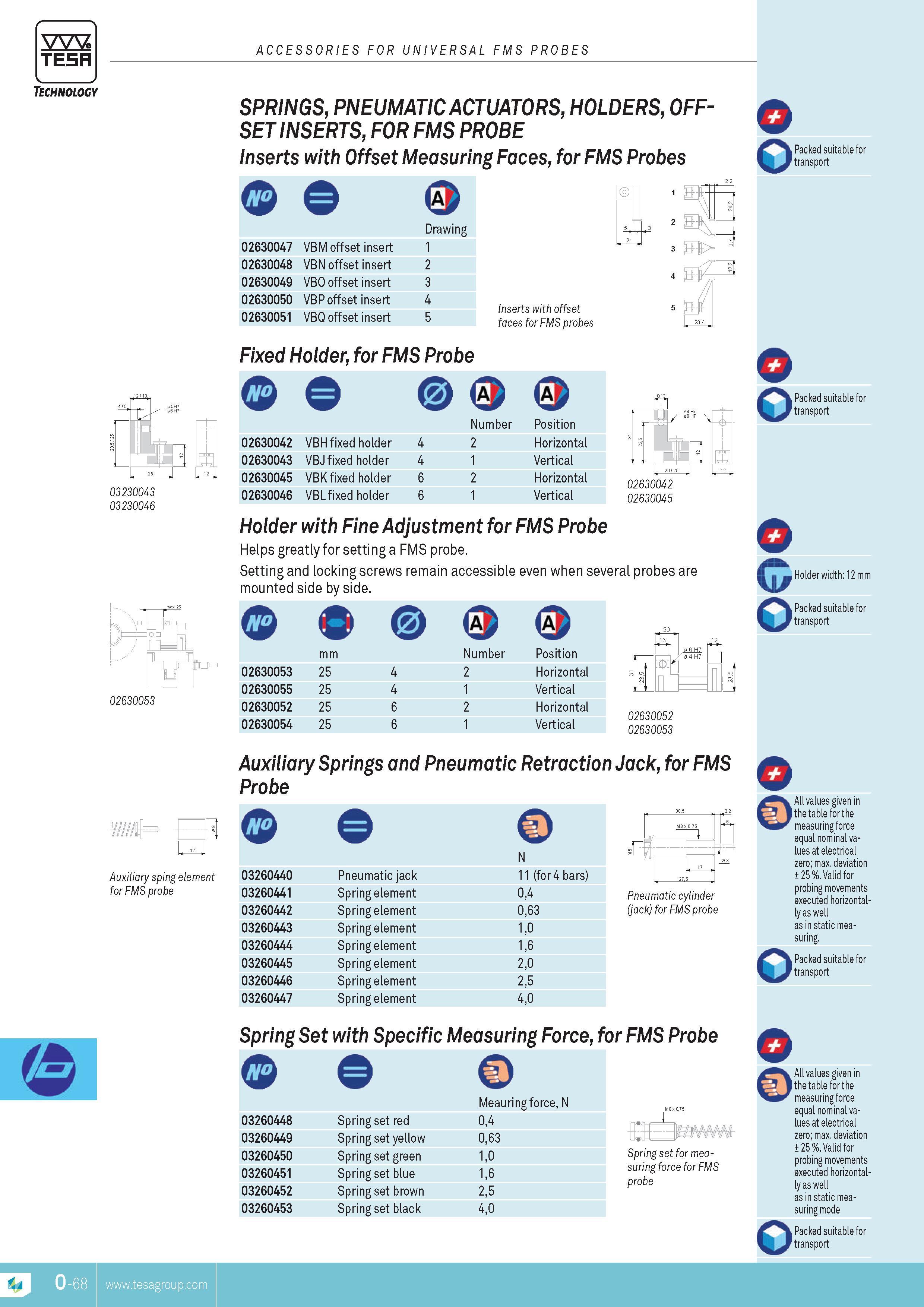

TESA ACCESSORIES FOR UNIVERSAL FMS PROBES Technology 1 Xr wt 2 J 03230043 03230046 02630053 Auxiliary sping element for FMS probe springs pneumatic actuators holders offset INSERTS for FMS proBE Inserts with offset Measuring Faces for FMS probes 02630047 02630048 02630049 02630050 02630051 VBM offset insert VBN offset insert VBO offset insert VBP offset insert VBQ offset insert Drawing 1 2 3 4 5 Inserts with offset faces for FMS probes Fixed Holder for FMS probe 0 02630042 VBH fixed holder 4 02630043 VBJ fixed holder 4 02630045 VBK fixed holder 6 02630046 VBLfixed holder 6 Number 2 1 2 1 Position Horizontal Vertical Horizontal Vertical 02630042 02630045 Holder with Fine Adjustment for FMS probe Helps greatly for setting a FMS probe. Setting and locking screws remain accessible even when several probes are mounted side by side. Q mm Number Position 02630053 25 4 2 Horizontal 02630055 25 4 1 Vertical 02630052 25 6 2 Horizontal 02630054 25 6 1 Vertical 02630052 02630053 Auxiliary Springs and pneumatic Retraction Jack for FMS probe ( O 03260440 Pneumatic jack 03260441 Spring element 03260442 Spring element 03260443 Spring element 03260444 Spring element 03260445 Spring element 03260446 Spring element 03260447 Spring element N 11 (for 4 bars) 04 063 10 16 20 25 40 Pneumatic cylinder (jack) for FMS probe Spring Set with Specific Measuring Force for FMS probe Q 0 03260448 03260449 03260450 03260451 03260452 03260453 Spring set red Spring set yellow Spring set green Spring set blue Spring set brown Spring set black Meauring force N 04 063 10 16 25 40 Spring set for measuring force for FMS probe Packed suitable for transport o Packed suitable for transport o G Holder width 12 mm Packed suitable for transport All values given in the table for the measuring force equal nominal values at electrical zero; max. deviation 25 %. Valid for probing movements executed horizontally as well as in static measuring. Packed suitable for transport All values given in the table for the measuring force equal nominal values at electrical zero; max. deviation 25 %. Valid for probing movements executed horizontally as well as in static measuring mode Packed suitable for transport O-68 TESA 2 3 4
