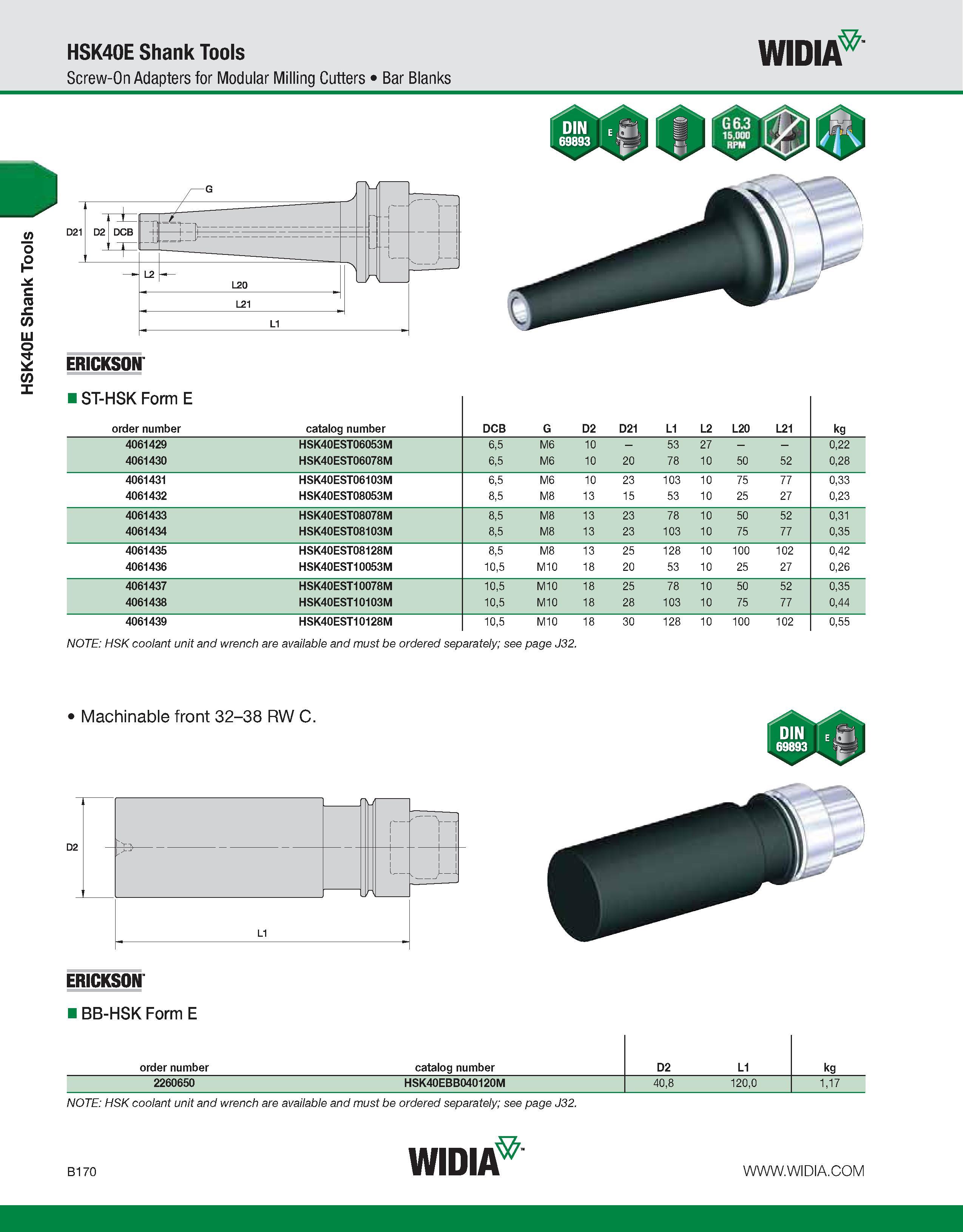

HSK40E Shank Tools HSK40E Shank Tools Screw-On Adapters for Modular Milling Cutters Bar Blanks WIDIA D21 D2 DCB :e L20 L21 ERICKSON ST-HSK Form E order number catalog number DCB G D2 D21 L1 L2 L20 L21 kg 4061429 HSK40EST06053M 6,5 M6 10 - 53 27 0,22 4061430 HSK40EST06078M 6,5 M6 10 20 78 10 50 52 0,28 4061431 HSK40EST06103M 6,5 M6 10 23 103 10 75 77 0,33 4061432 HSK40EST08053M 8,5 M8 13 15 53 10 25 27 0,23 4061433 HSK40EST08078M 8,5 M8 13 23 78 10 50 52 0,31 4061434 HSK40EST08103M 8,5 M8 13 23 103 10 75 77 0,35 4061435 HSK40EST08128M 8,5 M8 13 25 128 10 100 102 0,42 4061436 HSK40EST10053M 10,5 M10 18 20 53 10 25 27 0,26 4061437 HSK40EST10078M 10,5 M10 18 25 78 10 50 52 0,35 4061438 HSK40EST10103M 10,5 M10 18 28 103 10 75 77 0,44 4061439 HSK40EST10128M 10,5 M10 18 30 128 10 100 102 0,55 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. Machinable front 32-38 RW C. D2 r- r L. L ERICKSON BB-HSK Form E order number catalog number D2 L1 kg 2260650 HSK40EBB040120M 40,8 120,0 1,17 NOTE: HSK coolant unit and wrench are available and must be ordered separately; see page J32. B170 WIDIA
