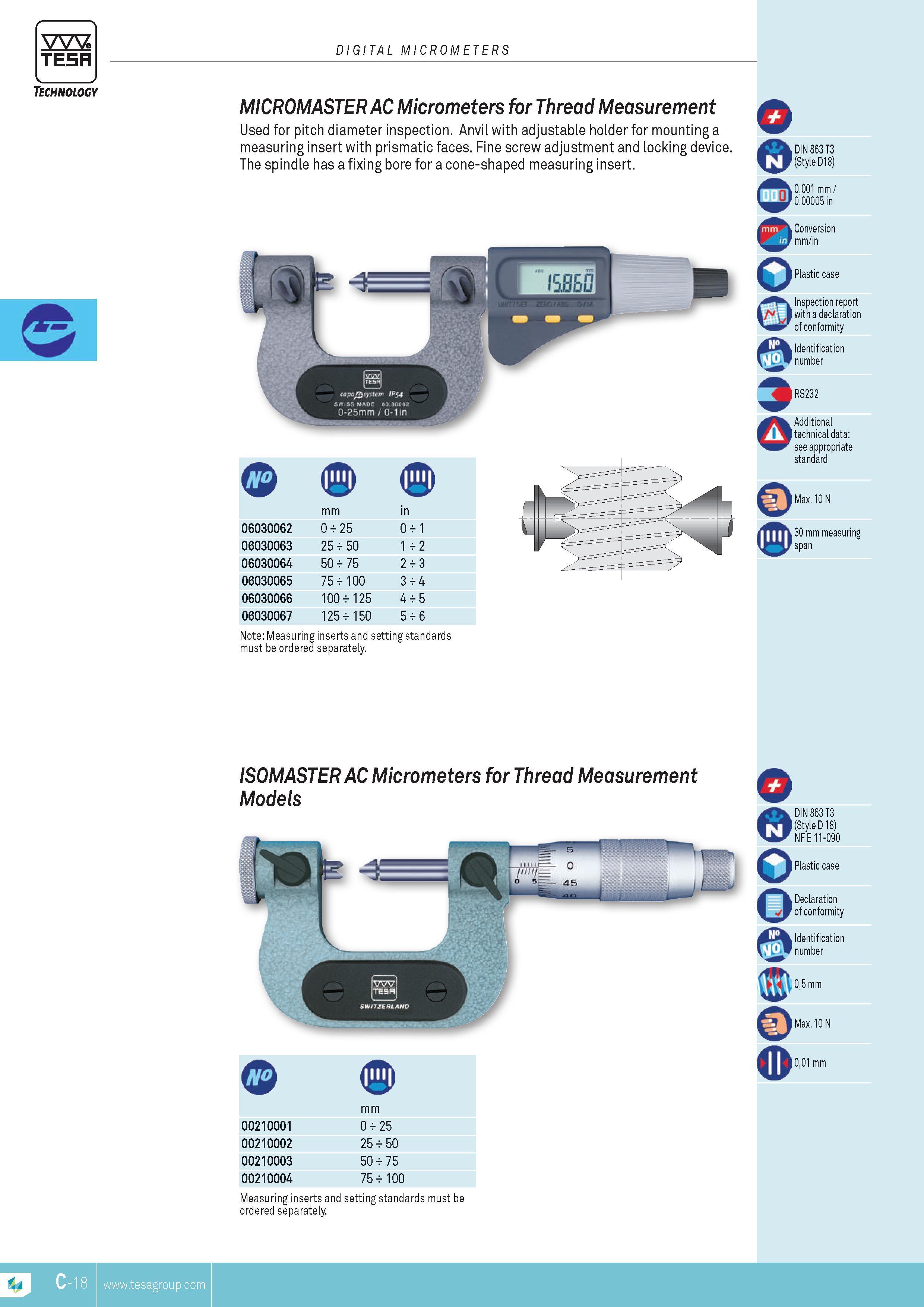

Micrometers TESA for Thread MEASUREMENT Used for pitch diameter inspection Anvil with adjustable holder for mounting a measuring insert with prismatic faces. Fine screw adjustment and locking device. The spindle has a fixing bore for a cone-shaped measuring insert. Qi 0 mm in 06030062 0 25 0 1 06030063 25 50 1 2 06030064 50 75 2 3 06030065 75 100 3 4 06030066 100 125 4 5 06030067 125 150 5 6 Note Measuring inserts and setting standards must be ordered separately. isomastER Ac Micrometers for thread MEASUREMENT Models Q) mm 00210001 0 25 00210002 25 50 00210003 50 75 00210004 75 100 O a 0 Inspection report with a declaration of conformity Identification number DIN 863 T3 (Style D18) 0001 mm 0.00005 in Conversion mm in Plastic case RS232 Additional technical data see appropriate standard Max. 10 N 30 mm measuring span o a o DIN 863 T3 (Style D 18) NFE 11-090 Plastic case Declaration of conformity Identification number o 05 mm Max. 10 N 001 mm Measuring inserts and setting standards must be ordered separately. C-18 TESA Technology DIGITAL MICROMETERS MicRoMAsTER Ac
