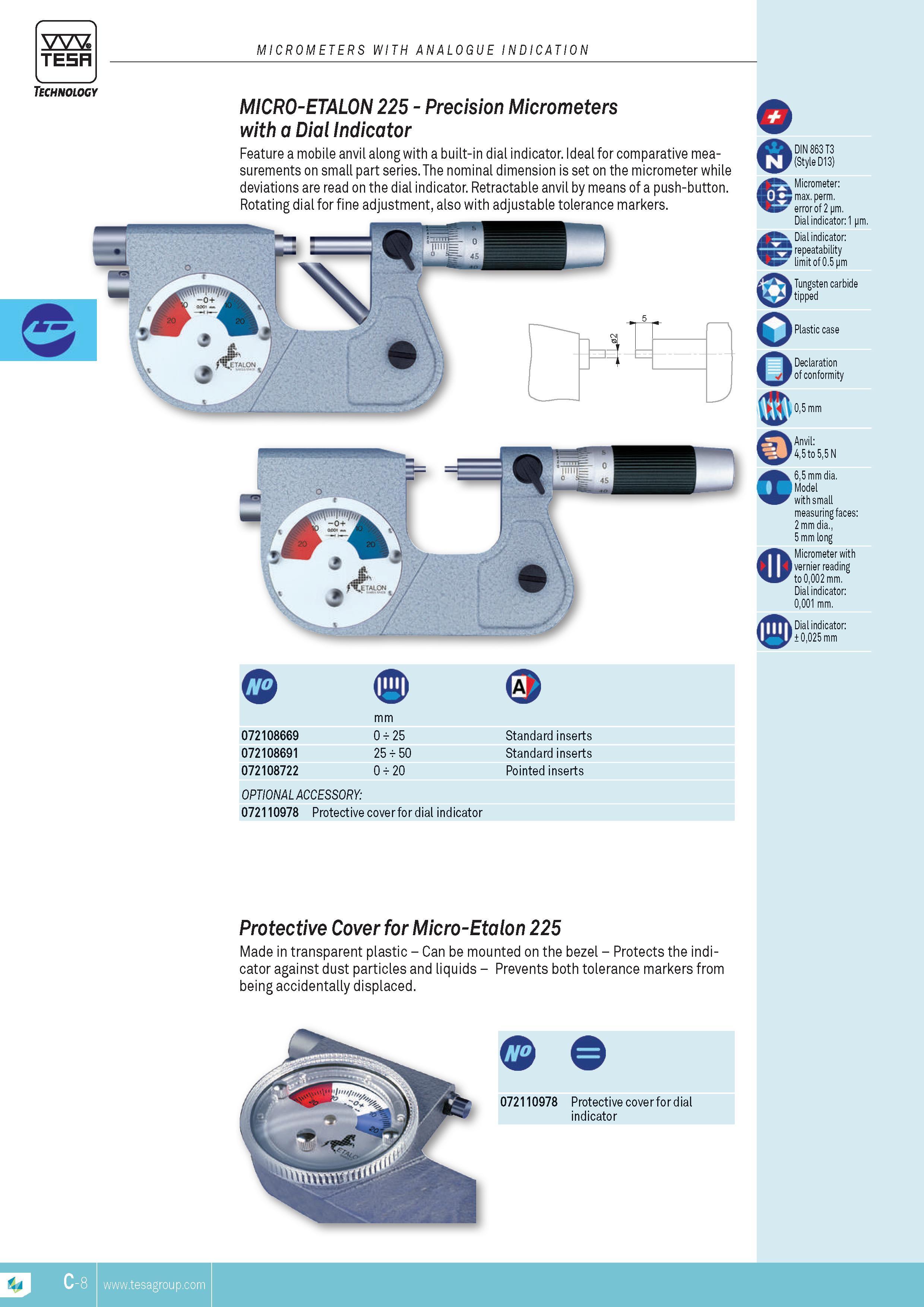

MICROMETERS WITH ANALOGUE INDICATION TESA MIcRO-ETALON 225 Precision Micrometers with a Dial Indicator Feature a mobile anvil along with a built-in dial indicator. Ideal for comparative MEASUREMENTs on small part series. The nominal dimension is set on the micrometer while deviations are read on the dial indicator. Retractable anvil by means of a push-button. Rotating dial for fine adjustment also with adjustable tolerance markers. 0 DIN 863 T3 (Style D13) E Micrometer max. perm. error of 2 pm. Dial indicator 1 pm. Dial indicator repeatability limit of 0.5 pm Tungsten carbide tipped Plastic case Declaration of conformity 05 mm Anvil 4.5 to 55 N 6.5 mm dia. Model with small measuring faces 2 mm dia. 5 mm long Micrometer with vernier reading to 0002 mm. Dial indicator 0001 mm. Dial indicator 0025 mm 072108669 0 25 Standard inserts 072108691 25 50 Standard inserts 072108722 0 20 Pointed inserts OPTIONAL ACCESSORY 072110978 Protective cover for dial indicator Protective Cover for Micro-Etalon 225 Made in transparent plastic Can be mounted on the bezel Protects the indicator against dust particles and liquids Prevents both tolerance markers from being accidentally displaced. 072110978 Protective cover for dial indicator C-8 TESA
