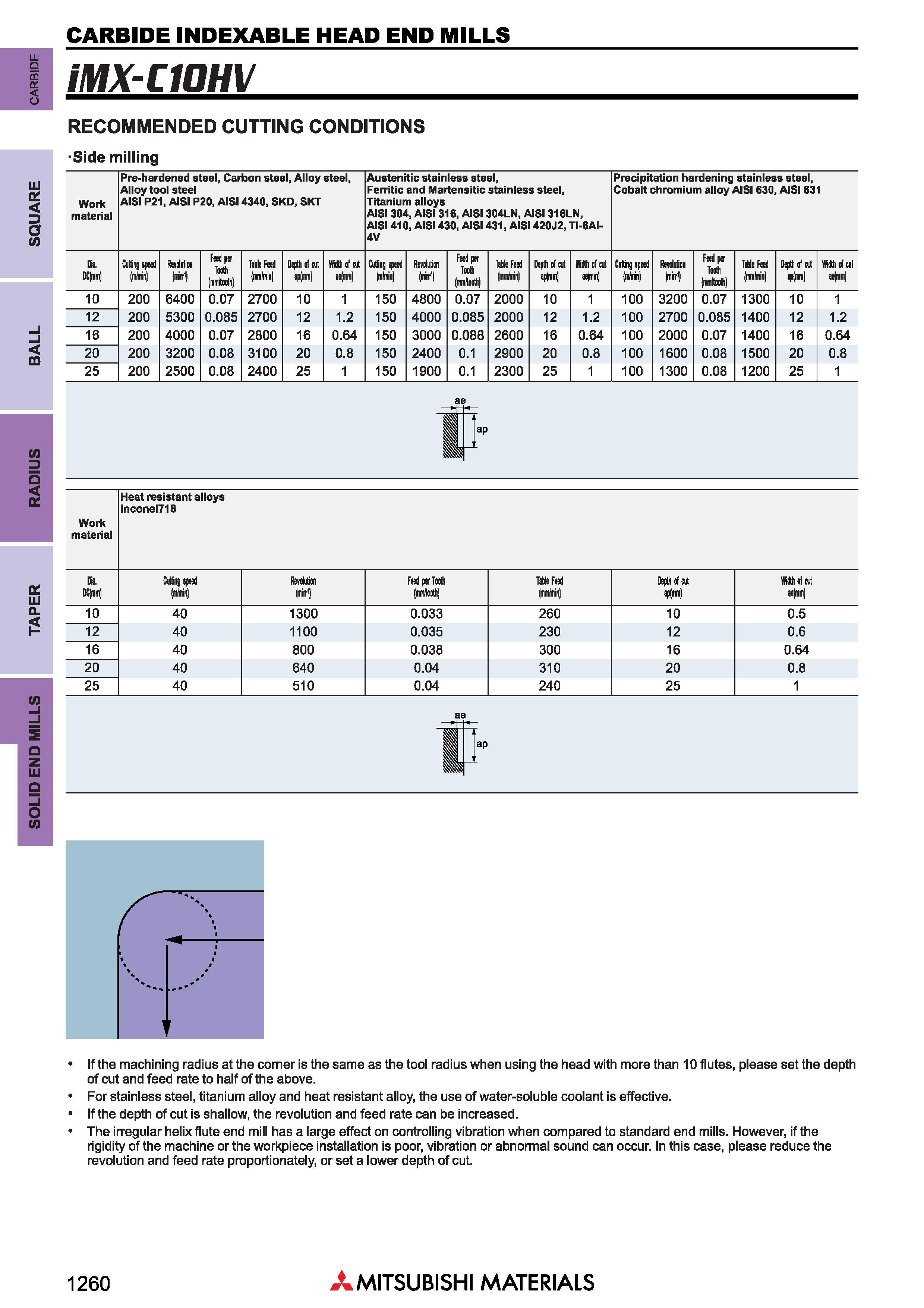

TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi по металлу со сменными режущими твердосплавными головками CARBIDE INDEXABLE HEAD END MILLS _ iMX-CIOHV Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS Side milling Work material Pre-hardened steel, Cartoon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic stainless steel, Titanium alloys AISI 304, AISI 316, AISI 304LN, AISI 316LN, AISI 410, AISI 430, AISI 431, AISI 420J2, Ti-6AI-4V Precipitation hardening stainless steel, Cobalt chromium alloy AISI 630, AISI 631 Dil. DCH Cutting speed (minin Revolution (niir1 Feed per Tooth (mm/tooth Table Feed (nan/min) Depth of cut ip(mm Dili of cut ioH Cutting feed (mMn Revdution (mir' Feed per Tooth tnniM TaUe Feed tynmjmin Depth tf cut epH Width if cut hH Cutting epeed minin RewMin (miir1) Feed per Tooth mmM Table Feed (mmMn Depth of cut Width tf cut aefmrn 10 200 6400 0.07 2700 10 1 150 4800 0.07 2000 10 1 100 3200 0.07 1300 10 1 12 200 5300 0.085 2700 12 1.2 150 4000 0.085 2000 12 1.2 100 2700 0.085 1400 12 1.2 16 200 4000 0.07 2800 16 0.64 150 3000 0.088 2600 16 0.64 100 2000 0.07 1400 16 0.64 20 200 3200 0.08 3100 20 0.8 150 2400 0.1 2900 20 0.8 100 1600 0.08 1500 20 0.8 25 200 2500 0.08 2400 25 1 150 1900 0.1 2300 25 1 100 1300 0.08 1200 25 1 ae Work material Heat resistant alloys lnconel718 Dia. Cling feed Revolution Feed per Tooth We Feed Depth if cut Width if cut DCJnm (mimin (miir1) (mAoth (mmlmin ap(mm io(mm 10 40 1300 0.033 260 10 0.5 12 40 1100 0.035 230 12 0.6 16 40 800 0.038 300 16 0.64 20 40 640 0.04 310 20 0.8 25 40 510 0.04 240 25 1 ae i> If the machining radius at the comer is the same as the tool radius when using the head with more than 10 flutes, please set the depth of cut and feed rate to half of the above. For stainless steel, titanium alloy and heat resistant alloy, the use of water-soluble coolant is effective. If the depth of cut is shallow, the revolution and feed rate can be increased. The irregular helix flute end mill has a large effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. 1260 Mitsubishi Materials
