Cartridges Overview Widia Each unique clamping system offers product options to fill your specific toolholder needs Find the illustration that fits

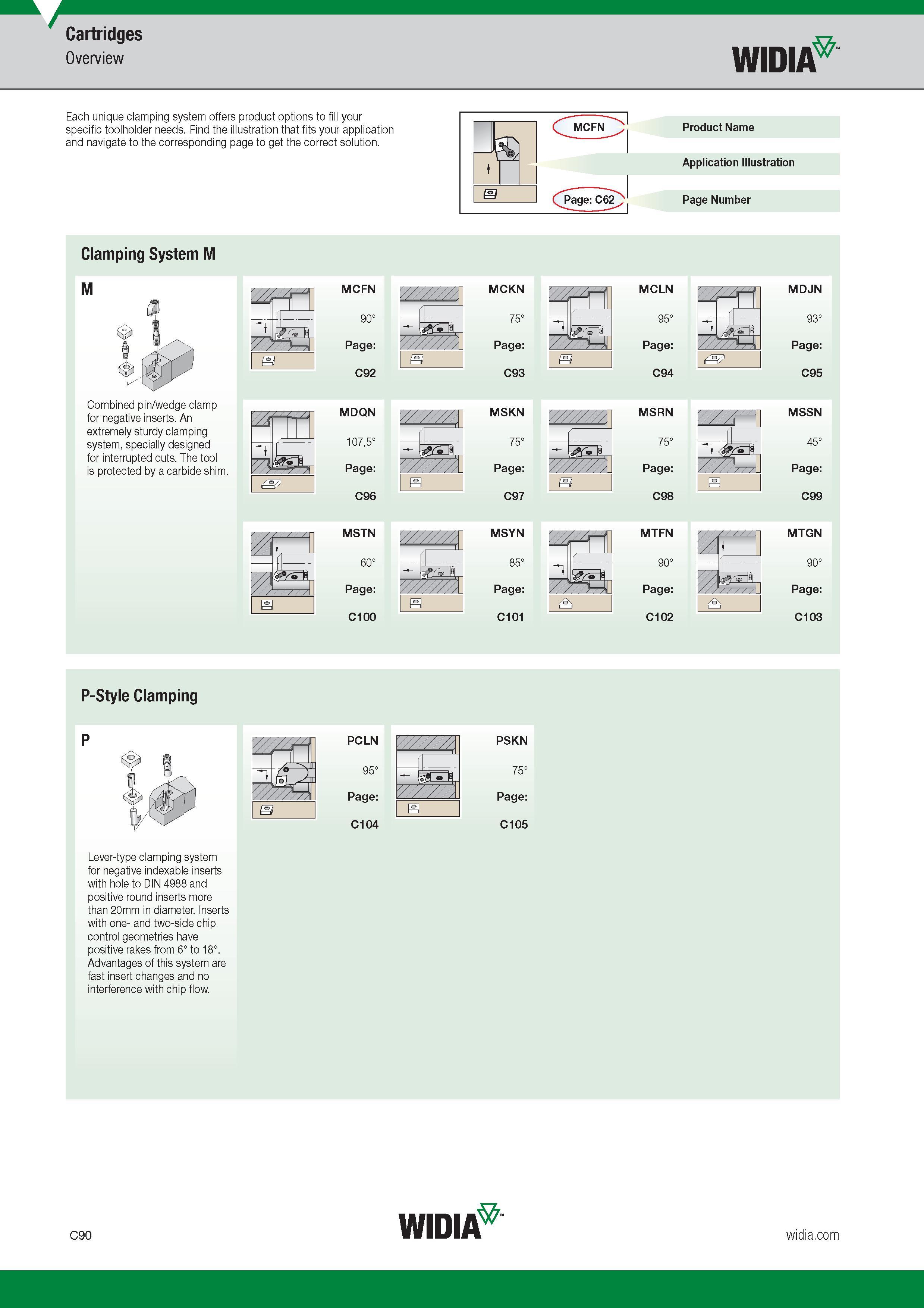

Cartridges Overview Widia Each unique clamping system offers product options to fill your specific toolholder needs. Find the illustration that fits your application and navigate to the corresponding page to get the correct solution. Product Name Application Illustration Page Number Clamping System M M Combined pin/wedge clamp for negative inserts. An extremely sturdy clamping system, specially designed for interrupted cuts. The tool is protected by a carbide shim. MCFN 90° Page C92 MDQN 107,5° Page C96 MCKN 75° Page C93 MSKN 75° Page C97 MCLN 95° Page C94 MSRN 75° Page C98 MDJN 93° Page C95 MSSN 45° Page C99 MSTN 60° Page C100 MSYN 85° Page C101 MTFN 90° Page C102 MTGN 90° Page C103 P-Style Clamping P Lever-type clamping system for negative indexable inserts with hole to DIN 4988 and positive round inserts more than 20mm in diameter. Inserts with one- and two-side chip control geometries have positive rakes from 6° to 18°. Advantages of this system are fast insert changes and no interference with chip flow. PCLN 95° Page C104 PSKN 75° Page C105 C90 Widia
