916 Каталог WIDIA 2017 Режущий инструмент Пластины Резцы Фрезы Сверла Метчики Стр.M12

Каталог Widia 2017 Металлорежущий инструмент Стр. M12 0916 ENG Lab2u

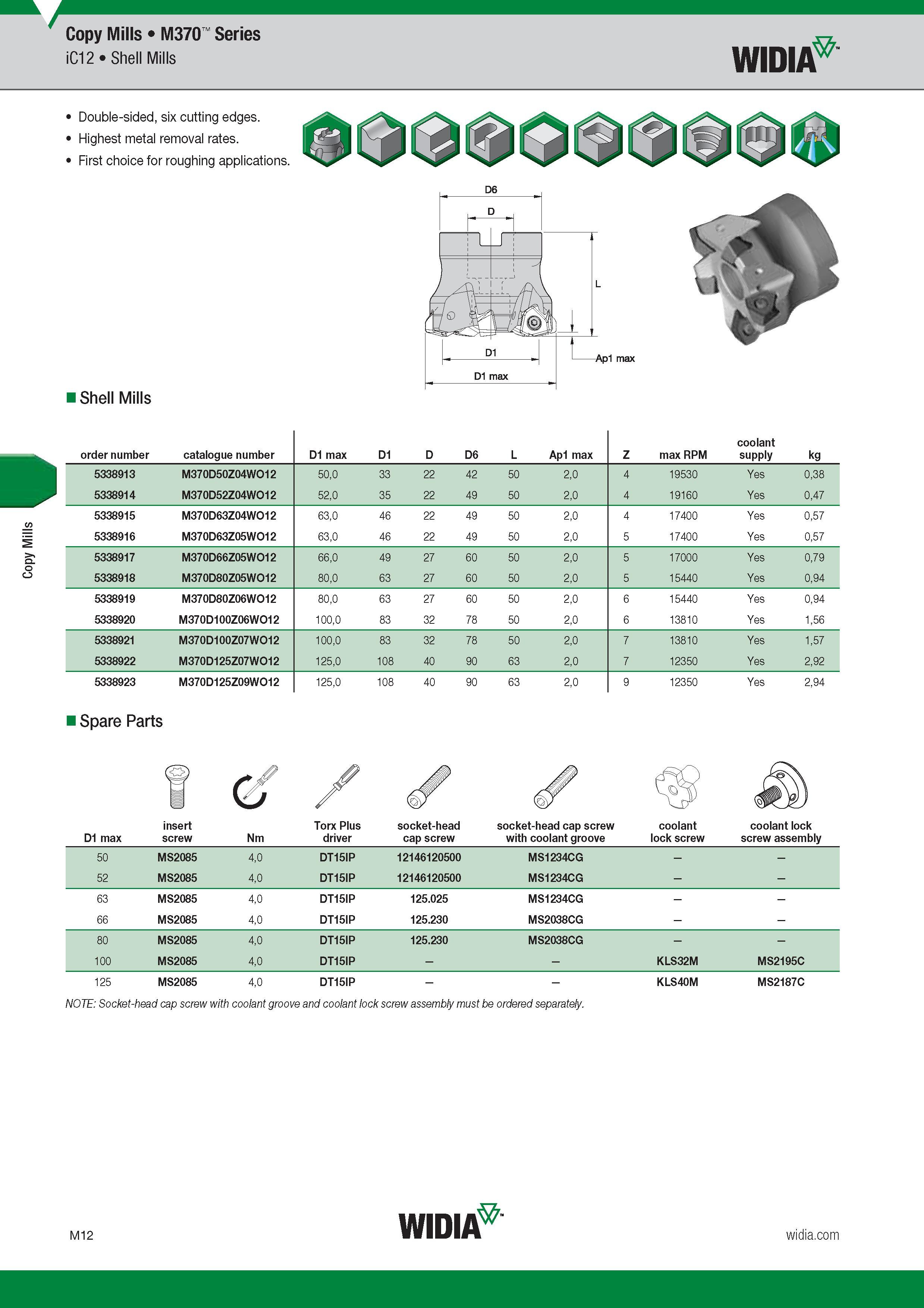

Copy Mills Copy Mills M370 Series iC12 Shell Mills Widia Double-sided, six cutting edges. Highest metal removal rates. First choice for roughing applications. Shell Mills Запасные части к инструменту Spare Parts G D1 max insert screw Nm Torx Plus driver socket-head cap screw socket-head cap screw with coolant groove coolant lock screw coolant lock screw assembly 50 MS2085 4,0 DT15IP 12146120500 MS1234CG 52 MS2085 4,0 DT15IP 12146120500 MS1234CG 63 MS2085 4,0 DT15IP 125.025 MS1234CG 66 MS2085 4,0 DT15IP 125.230 MS2038CG 80 MS2085 4,0 DT15IP 125.230 MS2038CG 100 MS2085 4,0 DT15IP KLS32M MS2195C 125 MS2085 4,0 DT15IP KLS40M MS2187C NOTE Socket-head cap screw with coolant groove and coolant lock screw assembly must be ordered separately. M12 Widia
