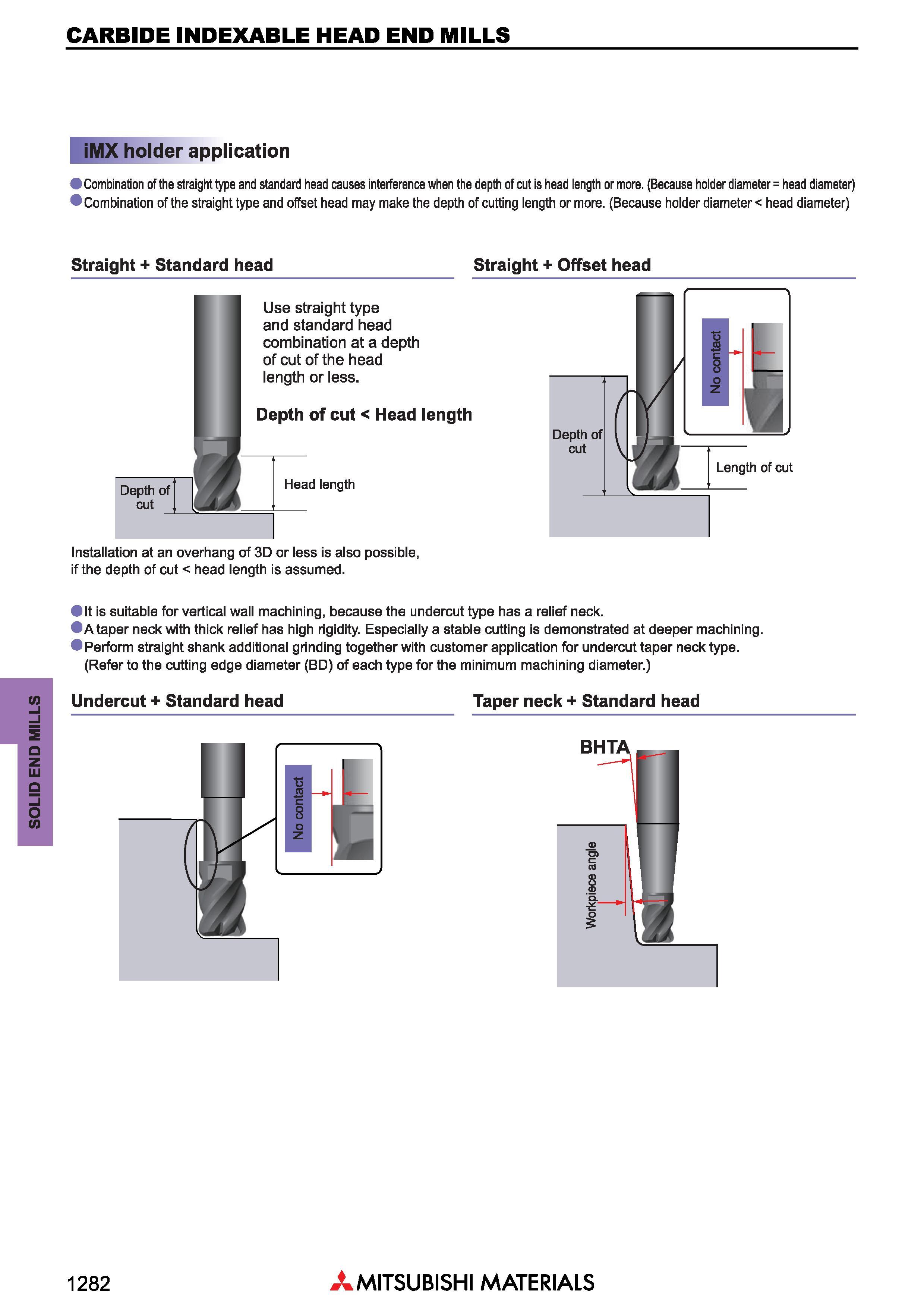

Концевые фрезы Mitsubishi по металлу со сменными режущими твердосплавными головками CARBIDE INDEXABLE HEAD END MILLS _ iMX holder application Combination of the straight type and standard head causes interference when the depth of cut is head length or more. (Because holder diameter = head diameter) Combination of the straight type and offset head may make the depth of cutting length or more. (Because holder diameter < head diameter) Straight + Standard head Straight + Offset head Use straight type and standard head combination at a depth of cut of the head length or less. Depth of cut < Head length Depth of cut Head length Installation at an overhang of 3D or less is also possible, if the depth of cut < head length is assumed. It is suitable for vertical wall machining, because the undercut type has a relief neck. A taper neck with thick relief has high rigidity. Especially a stable cutting is demonstrated at deeper machining. Perform straight shank additional grinding together with customer application for undercut taper neck type. (Refer to the cutting edge diameter (BD) of each type for the minimum machining diameter.) Undercut + Standard head Taper neck + Standard head BHTA 1282 Mitsubishi Materials
