Сборные расточные резцы Mitsubishi со сменными твердосплавными пластинами Японский металлорежущий инструмент с антивибрационными свойствами Краткое описание

Сборные расточные резцы Mitsubishi со сменными твердосплавными пластинами Японский металлорежущий инструмент с антивибрационными свойствами Краткое описание

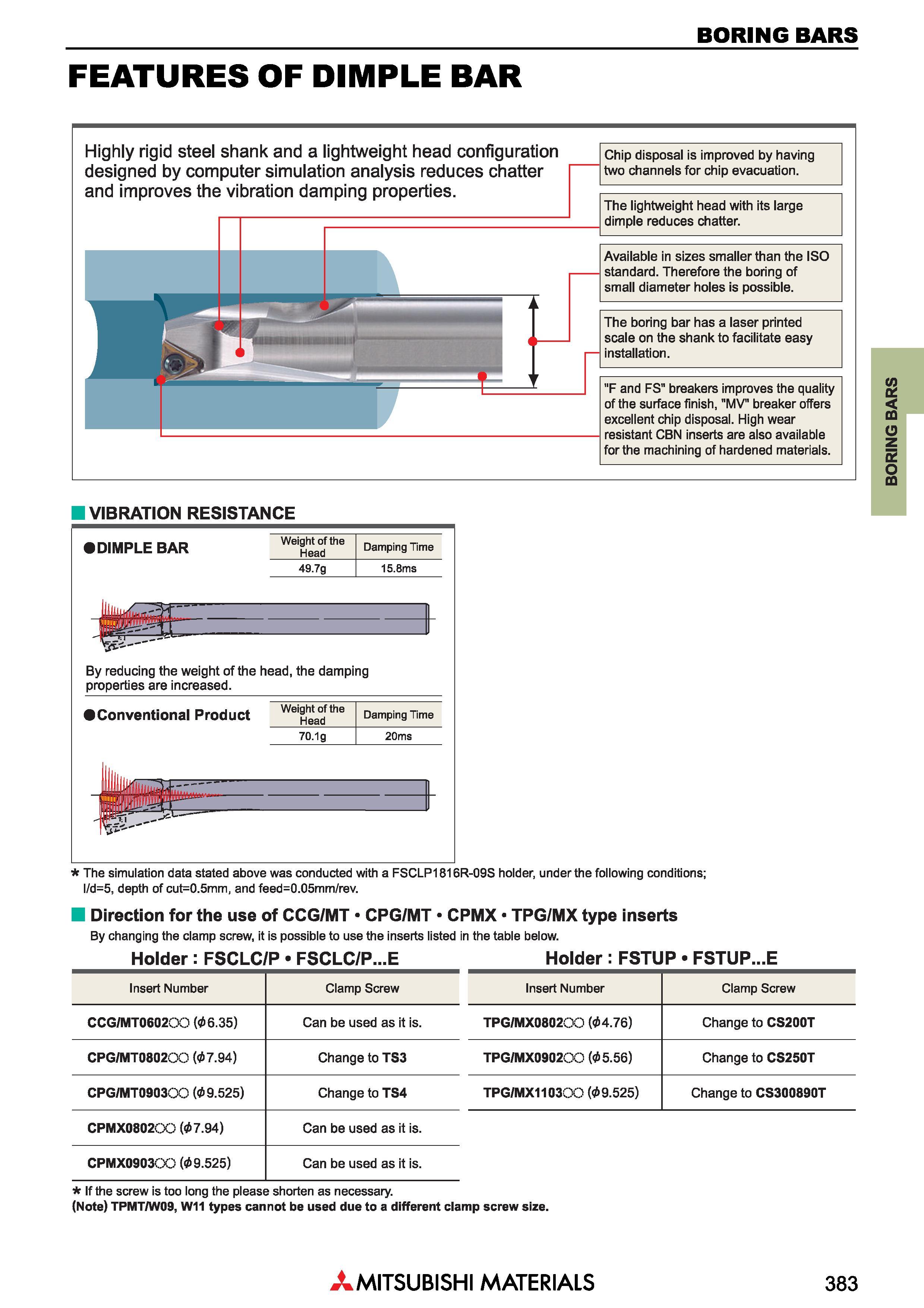

Сборные расточные резцы Mitsubishi со сменными твердосплавными пластинами Японский металлорежущий инструмент с антивибрационными свойствами Краткое описание _ BORING BARS FEATURES OF DIMPLE BAR Highly rigid steel shank and a lightweight head configuration designed by computer simulation analysis reduces chatter and improves the vibration damping properties. Chip disposal is improved by having two channels for chip evacuation. The lightweight head with its large dimple reduces chatter. Available in sizes smaller than the ISO standard. Therefore the boring of small diameter holes is possible. The boring bar has a laser printed scale on the shank to facilitate easy installation. "F and FS" breakers improves the quality of the surface finish, "MV" breaker offers excellent chip disposal. High wear resistant CBN inserts are also available for the machining of hardened materials. I VIBRATION RESISTANCE (DIMPLE BAR Weight of the Head Damping Time 49.7g 15.8ms By reducing the weight of the head, the damping properties are increased. (Conventional Product Weight of the Head Damping Time 70.1g 20ms The simulation data stated above was conducted with a FSCLP1816R-09S holder, under the following conditions; l/d=5, depth of cut=0.5mm, and feed=0.05mm/rev. Direction for the use of CCG/MT CPG/MT CPMX TPG/MX type inserts By changing the clamp screw, it is possible to use the inserts listed in the table below. Holder FSCLC/P FSCLC/P...E Holder FSTUP FSTUP...E Обозначение сменной режущей пластины Insert Number Clamp Screw CCG/MT060200 (06.35) Can be used as it is. CPG/MT080200 (07.94) Change to TS3 CPG/MT090300 ( 9.525) Change to TS4 CPMX080200 (07.94) Can be used as it is. CPMX0903GG (09.525) Can be used as it is. Обозначение сменной режущей пластины Insert Number Clamp Screw TPG/MX080200 (04.76) Change to CS200T TPG/MX090200 (05.56) Change to CS250T TPG/MX110300 (09.525) Change to CS300890T If the screw is too long the please shorten as necessary. (Note) TPMT/W09, W11 types cannot be used due to a different clamp screw size. Mitsubishi Materials 383 BORING BARS
