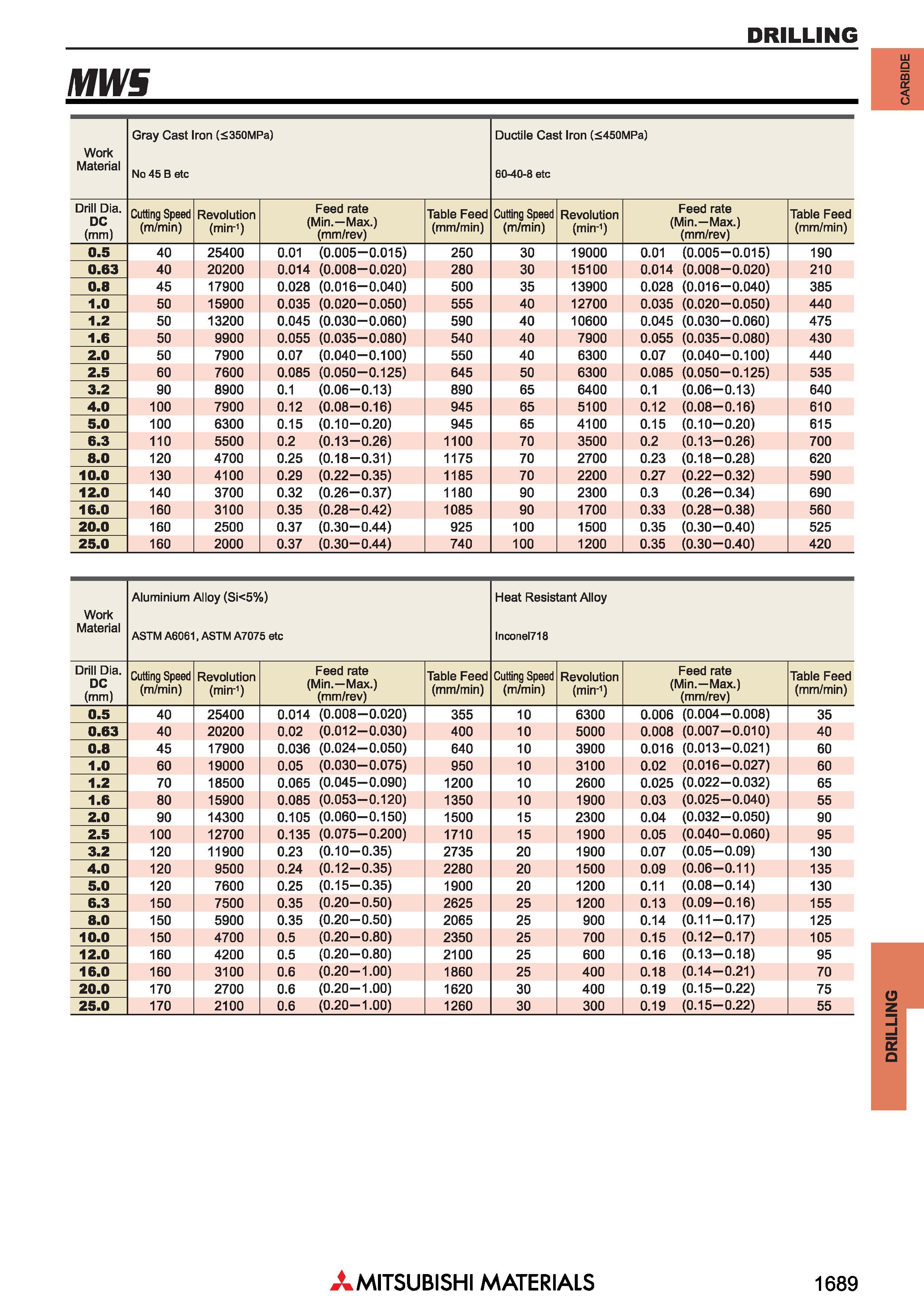

Сверла Митсубиси по металлу Японский осевой режущий инструмент для сверления отверстий DRILLING _ MWS Обрабатываемые материалы Work Material Gray Cast Iron (<350MPa) No 45 B etc Ductile Cast Iron (<450MPa) 60-40-8 etc Drill Dia. Cutting Speed Revolution Feed rate Table Feed Cutting Speed Revolution Feed rate Table Feed DC (mm) (m/min) (min-1) iviin. max.; (mm/rev) (mm/min) (m/min) (min-1) iviin. iviax.j (mm/rev) (mm/min) 0.5 40 25400 0.01 (0.005-0.015) 250 30 19000 0.01 (0.005-0.015) 190 0.63 40 20200 0.014 (0.008-0.020) 280 30 15100 0.014 (0.008-0.020) 210 0.8 45 17900 0.028 (0.016-0.040) 500 35 13900 0.028 (0.016-0.040) 385 1.0 50 15900 0.035 (0.020-0.050) 555 40 12700 0.035 (0.020-0.050) 440 1.2 50 13200 0.045 (0.030-0.060) 590 40 10600 0.045 (0.030-0.060) 475 1.6 50 9900 0.055 (0.035-0.080) 540 40 7900 0.055 (0.035-0.080) 430 2.0 50 7900 0.07 (0.040-0.100) 550 40 6300 0.07 (0.040-0.100) 440 2.5 60 7600 0.085 (0.050-0.125) 645 50 6300 0.085 (0.050-0.125) 535 3.2 90 8900 0.1 (0.06-0.13) 890 65 6400 0.1 (0.06-0.13) 640 4.0 100 7900 0.12 (0.08-0.16) 945 65 5100 0.12 (0.08-0.16) 610 5.0 100 6300 0.15 (0.10-0.20) 945 65 4100 0.15 (0.10-0.20) 615 6.3 110 5500 0.2 (0.13-0.26) 1100 70 3500 0.2 (0.13-0.26) 700 8.0 120 4700 0.25 (0.18-0.31) 1175 70 2700 0.23 (0.18-0.28) 620 10.0 130 4100 0.29 (0.22-0.35) 1185 70 2200 0.27 (0.22-0.32) 590 12.0 140 3700 0.32 (0.26-0.37) 1180 90 2300 0.3 (0.26-0.34) 690 16.0 160 3100 0.35 (0.28-0.42) 1085 90 1700 0.33 (0.28-0.38) 560 20.0 160 2500 0.37 (0.30-0.44) 925 100 1500 0.35 (0.30-0.40) 525 25.0 160 2000 0.37 (0.30-0.44) 740 100 1200 0.35 (0.30-0.40) 420 Обрабатываемые материалы Work Material Aluminium Alloy (Si<5%) ASTM A6061, ASTM A7075 etc Heat Resistant Alloy lnconel718 Drill Dia. DC (mm) Скорость резания (м/мин) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Скорость резания (м/мин) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 0.5 40 25400 0.014 (0.008-0.020) 355 10 6300 0.006 (0.004-0.008) 35 0.63 40 20200 0.02 (0.012-0.030) 400 10 5000 0.008 (0.007-0.010) 40 0.8 45 17900 0.036 (0.024-0.050) 640 10 3900 0.016 (0.013-0.021) 60 1.0 60 19000 0.05 (0.030-0.075) 950 10 3100 0.02 (0.016-0.027) 60 1.2 70 18500 0.065 (0.045-0.090) 1200 10 2600 0.025 (0.022-0.032) 65 1.6 80 15900 0.085 (0.053-0.120) 1350 10 1900 0.03 (0.025-0.040) 55 2.0 90 14300 0.105 (0.060-0.150) 1500 15 2300 0.04 (0.032-0.050) 90 2.5 100 12700 0.135 (0.075-0.200) 1710 15 1900 0.05 (0.040-0.060) 95 3.2 120 11900 0.23 (0.10-0.35) 2735 20 1900 0.07 (0.05-0.09) 130 4.0 120 9500 0.24 (0.12-0.35) 2280 20 1500 0.09 (0.06-0.11) 135 5.0 120 7600 0.25 (0.15-0.35) 1900 20 1200 0.11 (0.08-0.14) 130 6.3 150 7500 0.35 (0.20-0.50) 2625 25 1200 0.13 (0.09-0.16) 155 8.0 150 5900 0.35 (0.20-0.50) 2065 25 900 0.14 (0.11-0.17) 125 10.0 150 4700 0.5 (0.20-0.80) 2350 25 700 0.15 (0.12-0.17) 105 12.0 160 4200 0.5 (0.20-0.80) 2100 25 600 0.16 (0.13-0.18) 95 16.0 160 3100 0.6 (0.20-1.00) 1860 25 400 0.18 (0.14-0.21) 70 20.0 170 2700 0.6 (0.20-1.00) 1620 30 400 0.19 (0.15-0.22) 75 25.0 170 2100 0.6 (0.20-1.00) 1260 30 300 0.19 (0.15-0.22) 55 Mitsubishi Materials 1689 DRILLING
