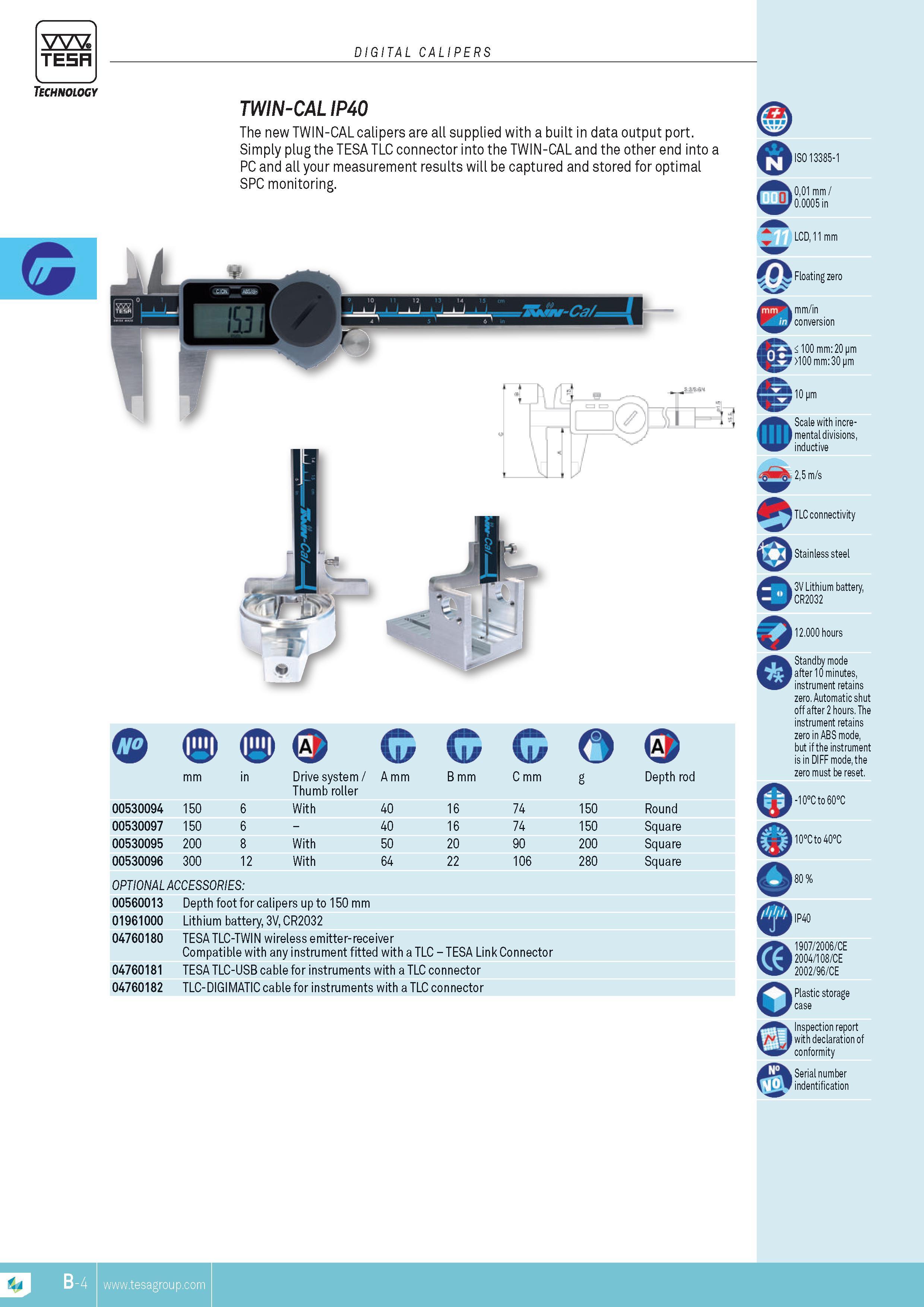

The new TWIN-CAL calipers are all supplied with a built in data output port. Simply plug the TESA TLC connector into the TWIN-CAL and the other end into a PC and all your MEASUREMENT results will be captured and stored for optimal SPC monitoring. ISO 13385-1 001 mm 0.0005 in G LCD 11 mm 00530094 00530097 00530095 00530096 mm 150 150 200 300 Drive system A mm Thumb roller 6 6 8 12 With With With 40 40 50 64 B mm 16 16 20 22 C mm 74 74 90 106 g 150 150 200 280 Depth rod Round Square Square Square OPTIONAL ACCESSORIES 00560013 Depth foot for calipers up to 150 mm 01961000 Lithium battery 3V CR2032 04760180 TESA TLC-TWIN wireless emitter-receiver Compatible with any instrument fitted with a TLC TESA Link Connector 04760181 TESA TLC-USB cable for instruments with a TLC connector 04760182 TLC-DIGIMATIC cable for instruments with a TLC connector Floating zero mm in conversion 100 mm 20 pm 100 mm 30 pm 10 pm Scale with incremental divisions inductive 25 m s & TLC connectivity Stainless steel 3V Lithium battery CR2032 Q o m 12.000 hours Standby mode after 10 minutes instrument retains zero. Automatic shut off after 2 hours. The instrument retains zero in ABS mode but if the instrument is in DIFF mode the zero must be reset. -10C to60C 10C to 40C IP40 1907 2006 CE 2004 108 CE 2002 96 CE Plastic storage case Inspection report with declaration of conformity Serial number L L' Windentification TESA TESA Technology DIGITAL CALIPERS TWIN-CAL IP40
