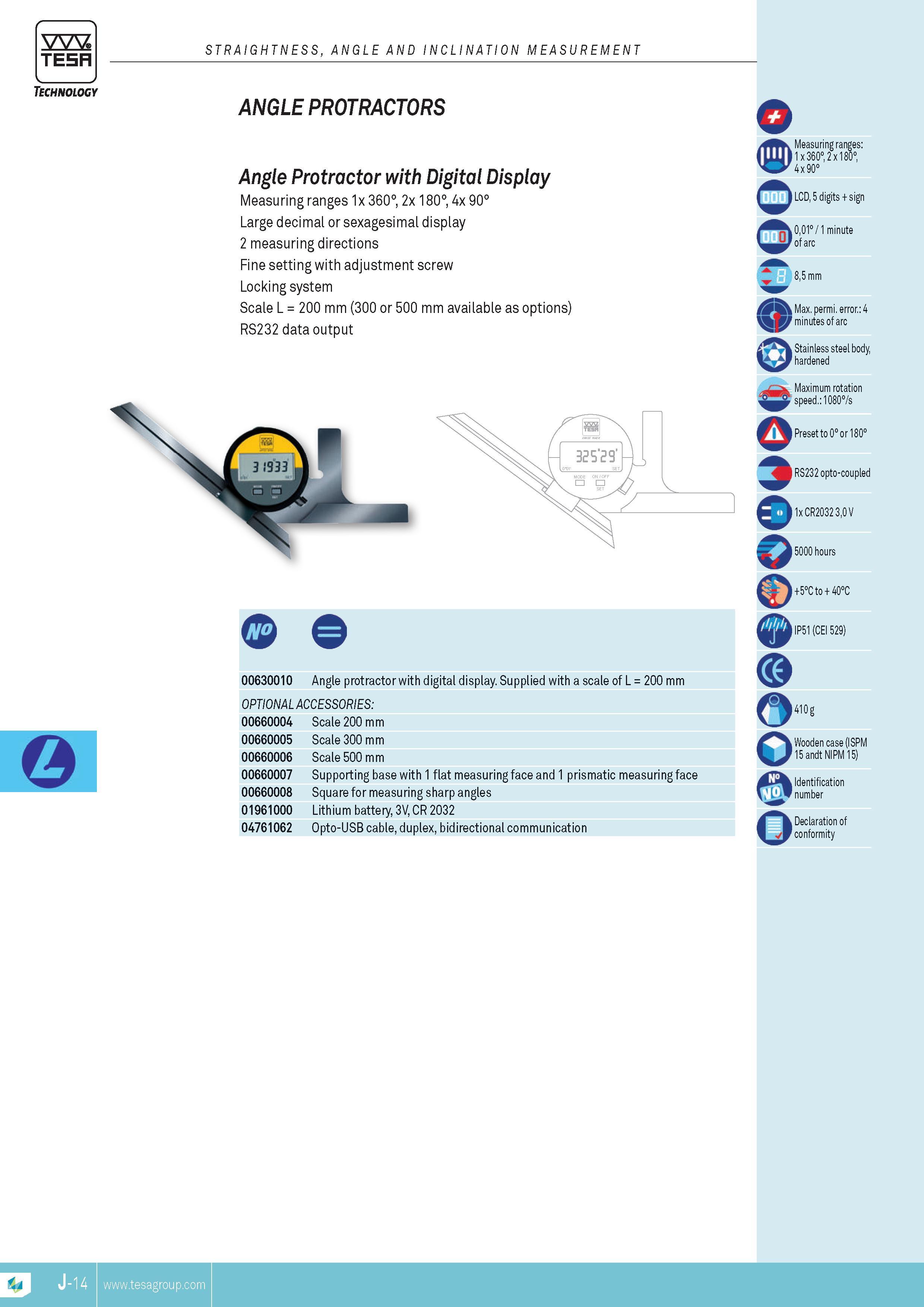

Angle Protractor with Digital Display Measuring ranges 1x 360 2x 180 4x 90 Large decimal or sexagesimal display 2 measuring directions Fine setting with adjustment screw Locking system Scale L 200 mm (300 or 500 mm available as options) RS232 data output 00630010 Angle protractor with digital display. Supplied with a scale of L 200 mm OpTIONAL ACCESSORIES 00660004 Scale 200 mm 00660005 Scale 300 mm 00660006 Scale 500 mm 00660007 Supporting base with 1 flat measuring face and 1 prismatic measuring face 00660008 Square for measuring sharp angles 01961000 Lithium battery 3V CR 2032 04761062 Opto-USB cable duplex bidirectional communication Ql & Measuring ranges 1 x3602x180 4 x 90 LCD 5 digits + sign 001 1 minute of arc 85 mm Max. permi. error. 4 minutes of arc Stainless steel body hardened Maximum rotation speed. 1080 s o 3 O 0 Preset to 0 or 180 RS232 opto-coupled 1x CR2032 30 V 5000 hours +5C to + 40C IP51 (CEI 529) 410 g Wooden case (ISPM 15 andt NIPM 15) Identification number o Declaration of conformity TESA TESA straightness angle and inclination MEASUREMENT Technology 0 ANGLE PROTRACTORS
