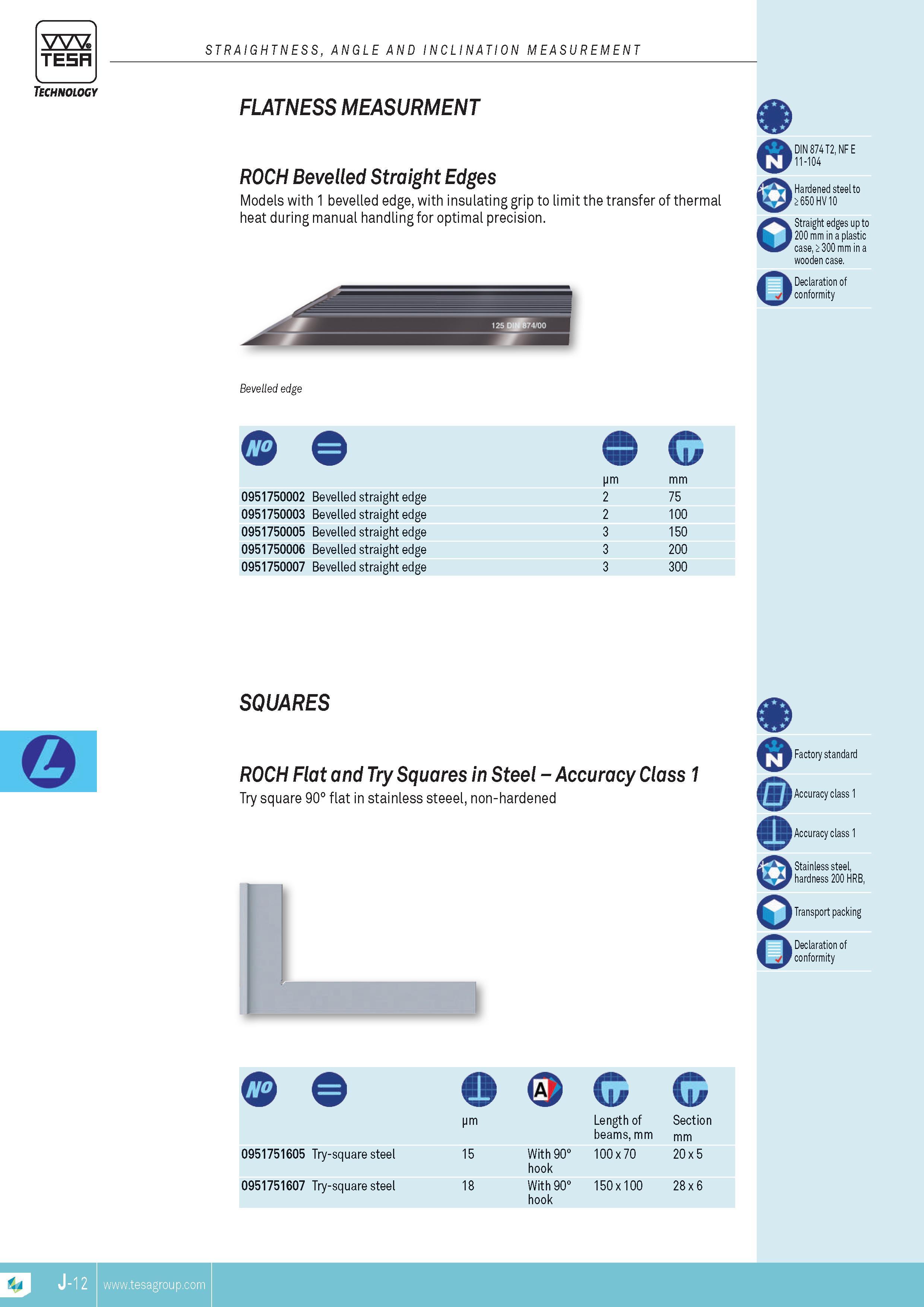

FLATNESS MEASURMENT ROCH Bevelled Straight Edges Models with 1 bevelled edge with insulating grip to limit the transfer of thermal heat during manual handling for optimal precision. o DIN 874 T2 NF E 11-104 Hardened steel to 650HV 10 Straight edges up to 200 mm in a plastic case 300 mm in a wooden case. Declaration of conformity Bevelled edge pm mm 0951750002 Bevelled straight edge 2 75 0951750003 Bevelled straight edge 2 100 0951750005 Bevelled straight edge 3 150 0951750006 Bevelled straight edge 3 200 0951750007 Bevelled straight edge 3 300 0 SQUARES ROCH Flat and Try Squares in Steel Accuracy Class 1 Try square 90 flat in stainless steeel non-hardened Factory standard Accuracy class 1 Accuracy class 1 Stainless steel hardness 200 HRB Transport packing Declaration of conformity O C G pm Length of Section beams mm 0951751605 Try-square steel 15 With 90 100 x 70 20 x 5 hook 0951751607 Try-square steel 18 With 90 150 x 100 28 x 6 hook TESA STRAIGHTNESS ANGLE AND INCLINATION MEASUREMENT Technology
