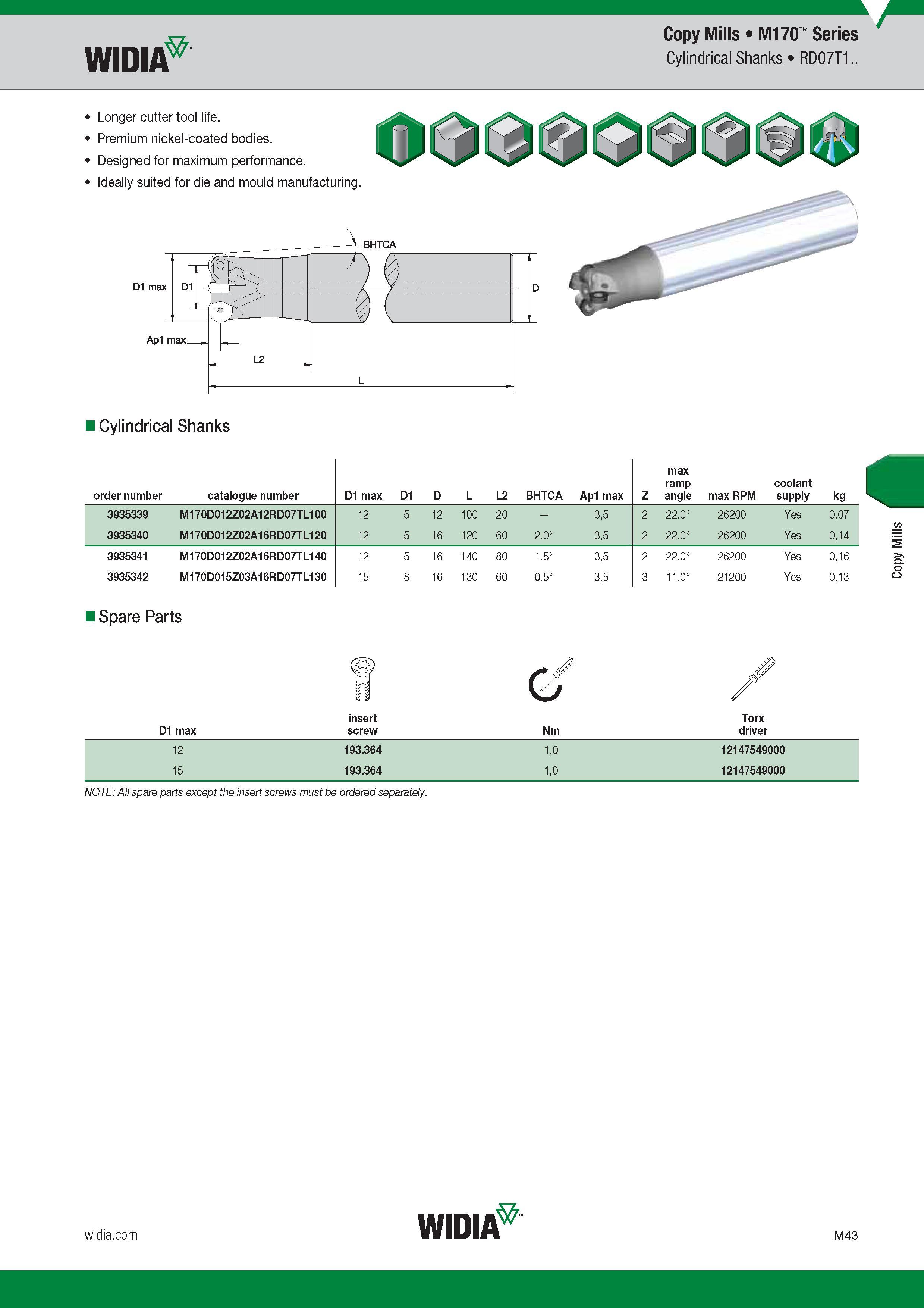

Copy Mills Widia M170 Series Cylindrical Shanks RD07T1.. Longer cutter tool life. Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mould manufacturing. D1 max Ap1 max Cylindrical Shanks order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D L L2 BHTCA Ap1 max Z max ramp angle max RPM coolant supply kg 3935339 M170D012Z02A12RD07TL100 12 5 12 100 20 - 3,5 2 22.0° 26200 Yes 0,07 3935340 M170D012Z02A16RD07TL120 12 5 16 120 60 2.0° 3,5 2 22.0° 26200 Yes 0,14 3935341 M170D012Z02A16RD07TL140 12 5 16 140 80 1.5° 3,5 2 22.0° 26200 Yes 0,16 3935342 M170D015Z03A16RD07TL130 15 8 16 130 60 0.5° 3,5 3 11.0° 21200 Yes 0,13 Spare Parts D1 max insert screw c Nm Torx driver 12 193.364 1,0 12147549000 15 193.364 1,0 12147549000 NOTE All spare parts except the insert screws must be ordered separately. Widia M43 Copy Mills
