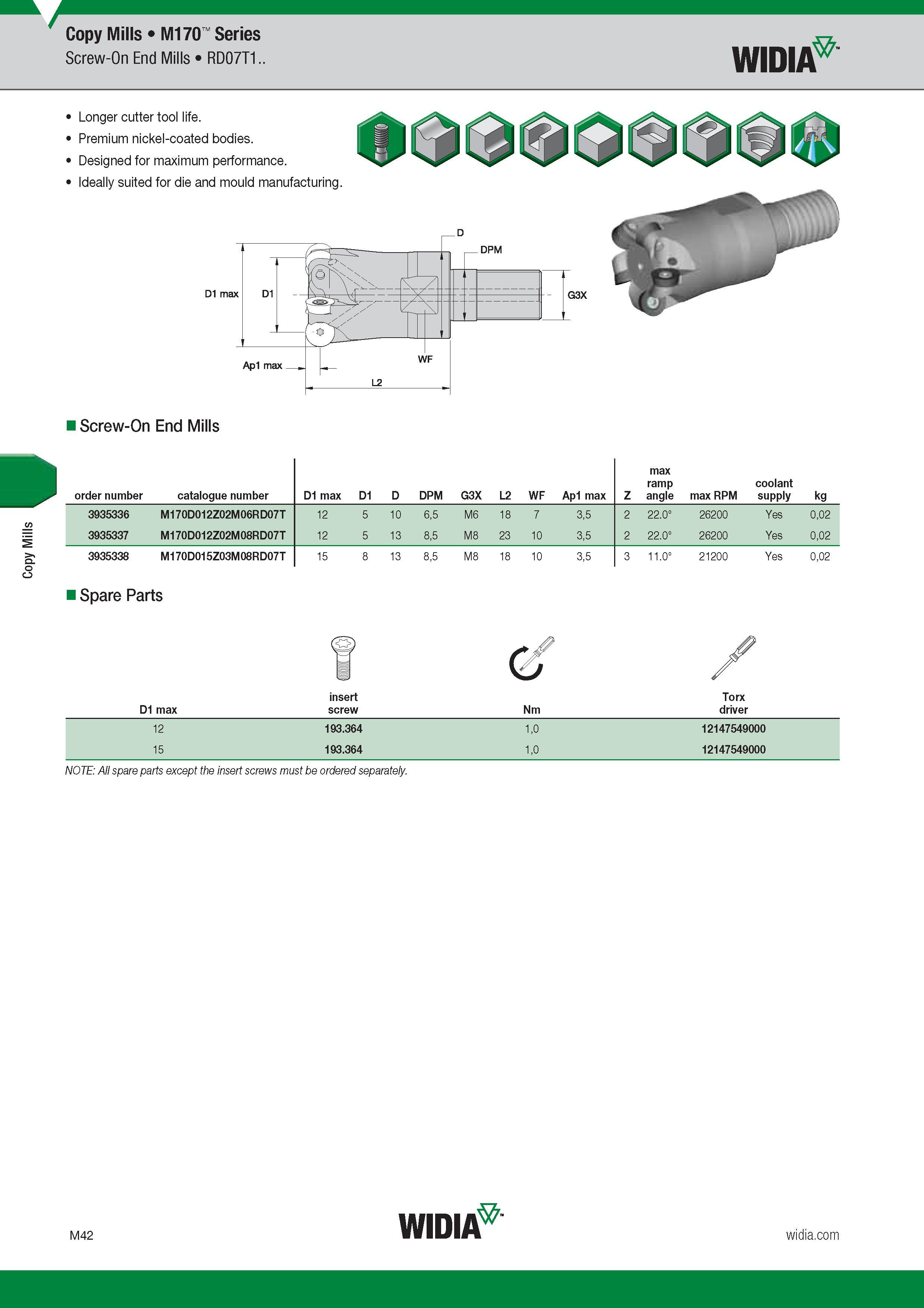

Copy Mills Widia M170 Series Screw-On End Mills RD07T1 Longer cutter tool life Premium nickel-coated bodies Designed for maximum performance Ideall

Copy Mills Widia M170 Series Screw-On End Mills RD07T1.. Longer cutter tool life. Premium nickel-coated bodies. Designed for maximum performance. Ideally suited for die and mould manufacturing. Screw-On End Mills order number Catalogue number Обозначение инструмента по каталогу D1 max D1 D DPM G3X L2 WF Ap1 max Z max ramp angle max RPM coolant supply kg 3935336 M170D012Z02M06RD07T 12 5 10 6,5 M6 18 7 3,5 2 22.0° 26200 Yes 0,02 3935337 M170D012Z02M08RD07T 12 5 13 8,5 M8 23 10 3,5 2 22.0° 26200 Yes 0,02 3935338 M170D015Z03M08RD07T 15 8 13 8,5 M8 18 10 3,5 3 11.0° 21200 Yes 0,02 Spare Parts D1 max insert screw a Nm Torx driver 12 193.364 1,0 12147549000 15 193.364 1,0 12147549000 NOTE All spare parts except the insert screws must be ordered separately. M42 Widia Copy Mills
