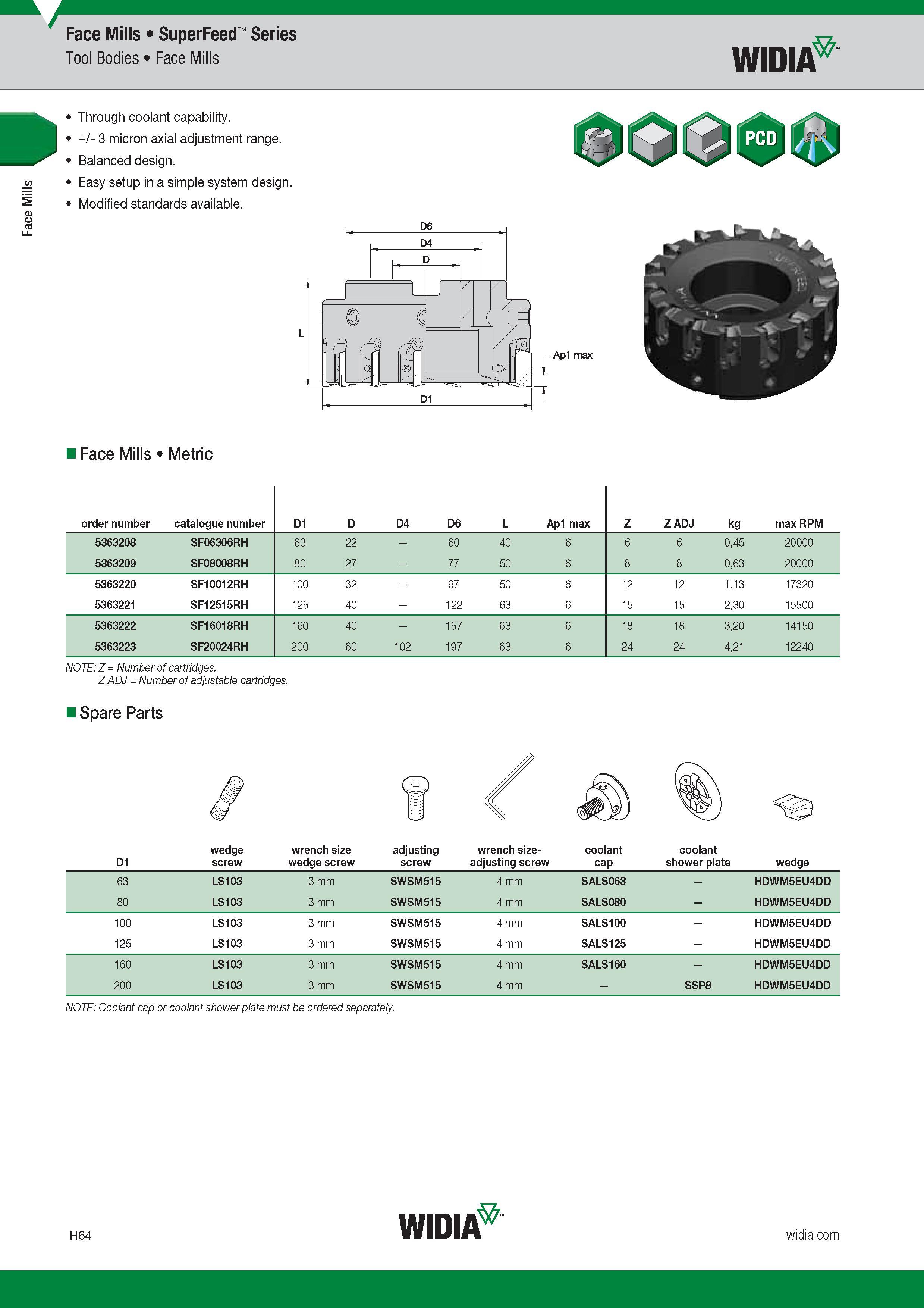

Face Mills SuperFeed Series Tool Bodies Widia Through coolant capability. +/- 3 micron axial adjustment range. Balanced design. Easy setup in a simple system design. Modified standards available. Ap1 max Face Mills Metric order number Catalogue number Обозначение инструмента по каталогу D1 D D4 D6 L Ap1 max Z Z ADJ kg max RPM 5363208 SF06306RH 63 22 - 60 40 6 6 6 0,45 20000 5363209 SF08008RH 80 27 - 77 50 6 8 8 0,63 20000 5363220 SF10012RH 100 32 - 97 50 6 12 12 1,13 17320 5363221 SF12515RH 125 40 - 122 63 6 15 15 2,30 15500 5363222 SF16018RH 160 40 - 157 63 6 18 18 3,20 14150 5363223 SF20024RH 200 60 102 197 63 6 24 24 4,21 12240 NOTE Z Number of cartridges. Z ADJ Number of adjustable cartridges. Spare Parts D1 wedge screw wrench size wedge screw adjusting screw wrench size-adjusting screw coolant cap coolant shower plate wedge 63 LS103 3 mm SWSM515 4 mm SALS063 - HDWM5EU4DD 80 LS103 3 mm SWSM515 4 mm SALS080 - HDWM5EU4DD 100 LS103 3 mm SWSM515 4 mm SALS100 - HDWM5EU4DD 125 LS103 3 mm SWSM515 4 mm SALS125 - HDWM5EU4DD 160 LS103 3 mm SWSM515 4 mm SALS160 - HDWM5EU4DD 200 LS103 3 mm SWSM515 4 mm - SSP8 HDWM5EU4DD NOTE Coolant cap or coolant shower plate must be ordered separately. H64 Widia Face Mills Face Mills
