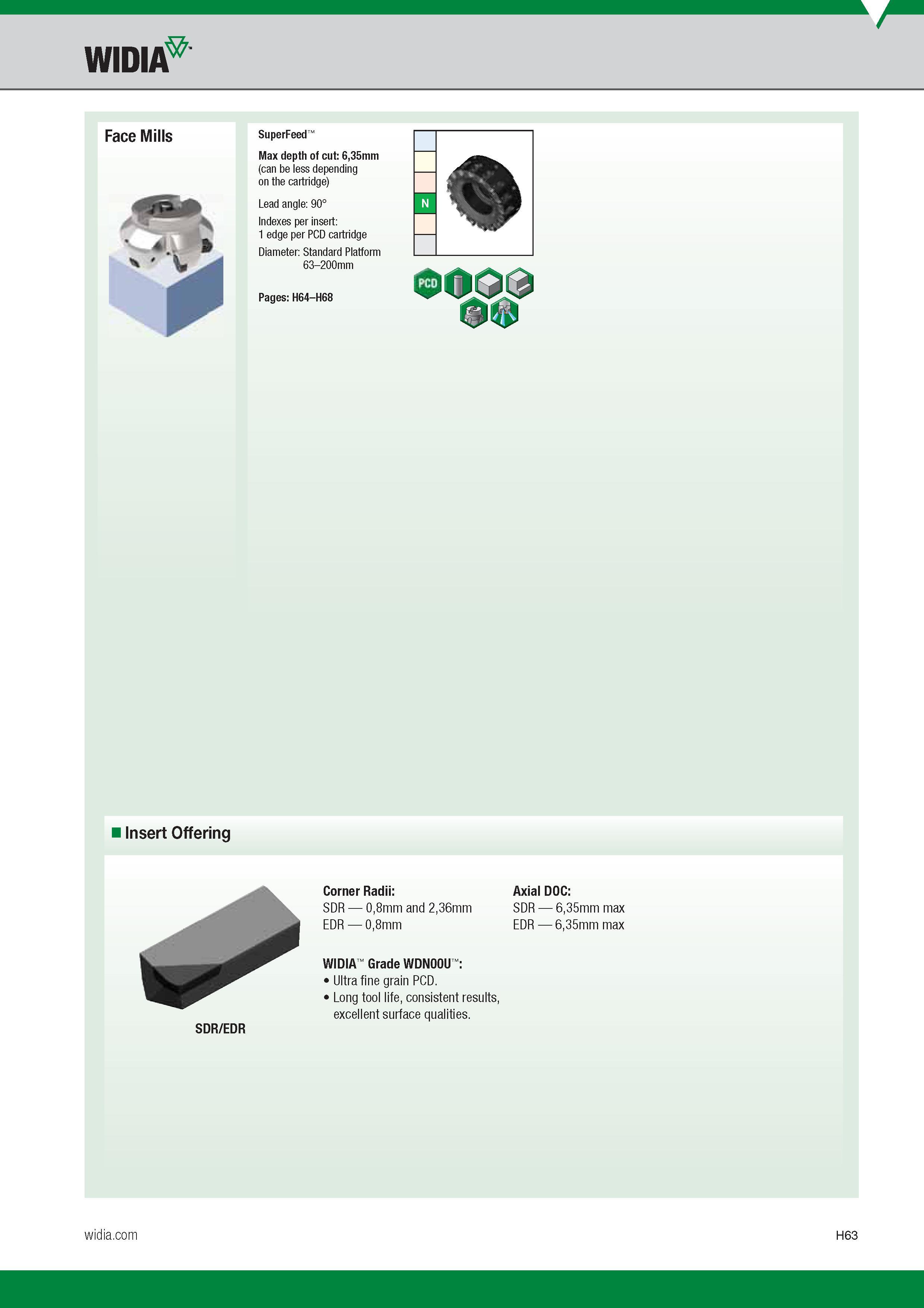

Face Mills Widia SuperFeed Max depth of cut 6,35mm (can be less depending on the cartridge) Lead angle 90° Indexes per insert 1 edge per PCD cartri

Face Mills Widia SuperFeed Max depth of cut 6,35mm (can be less depending on the cartridge) Lead angle 90° Indexes per insert 1 edge per PCD cartridge Diameter Standard Platform 63-200mm Pages H64-H68 N Insert Offering SDR/EDR Corner Radii SDR 0,8mm and 2,36mm EDR 0,8mm Widia Grade WDN00U Ultra fine grain PCD. Long tool life, consistent results, excellent surface qualities. Axial DOC SDR 6,35mm max EDR 6,35mm max
