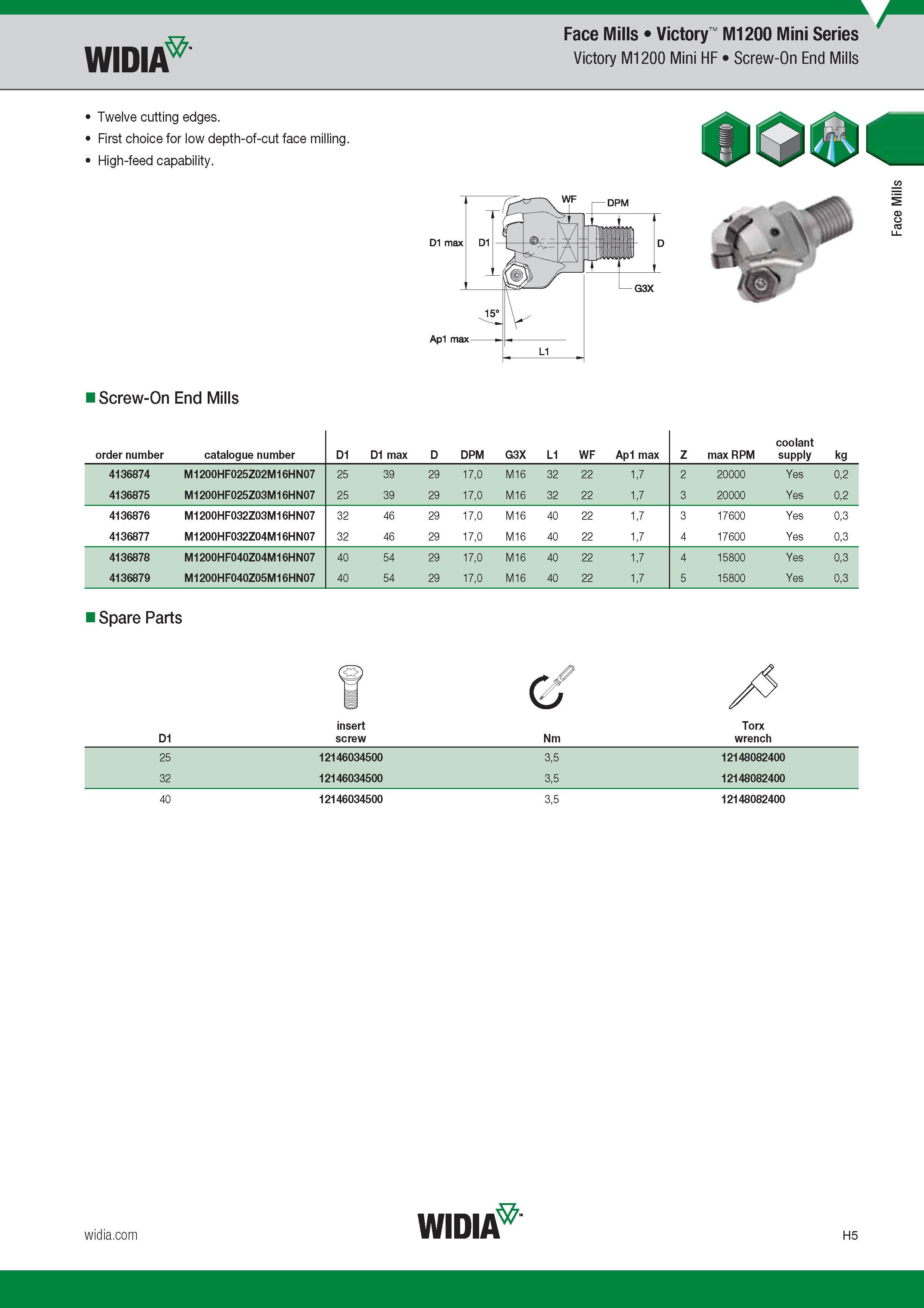

Face Mills Widia Victory M1200 Mini Series Victory M1200 Mini HF Screw-On End Mills Twelve cutting edges First choice for low depth-of-cut face mil

Face Mills Widia Victory M1200 Mini Series Victory M1200 Mini HF Screw-On End Mills Twelve cutting edges. First choice for low depth-of-cut face milling. High-feed capability. D1 max Ap1 max Screw-On End Mills order number Catalogue number Обозначение инструмента по каталогу D1 D1 max D DPM G3X L1 WF Ap1 max Z max RPM coolant supply kg 4136874 M1200HF025Z02M16HN07 25 39 29 17,0 M16 32 22 1,7 2 20000 Yes 0,2 4136875 M1200HF025Z03M16HN07 25 39 29 17,0 M16 32 22 1,7 3 20000 Yes 0,2 4136876 M1200HF032Z03M16HN07 32 46 29 17,0 M16 40 22 1,7 3 17600 Yes 0,3 4136877 M1200HF032Z04M16HN07 32 46 29 17,0 M16 40 22 1,7 4 17600 Yes 0,3 4136878 M1200HF040Z04M16HN07 40 54 29 17,0 M16 40 22 1,7 4 15800 Yes 0,3 4136879 M1200HF040Z05M16HN07 40 54 29 17,0 M16 40 22 1,7 5 15800 Yes 0,3 Spare Parts D1 insert screw c Nm Torx wrench 25 12146034500 3,5 12148082400 32 12146034500 3,5 12148082400 40 12146034500 3,5 12148082400 Face Mills
