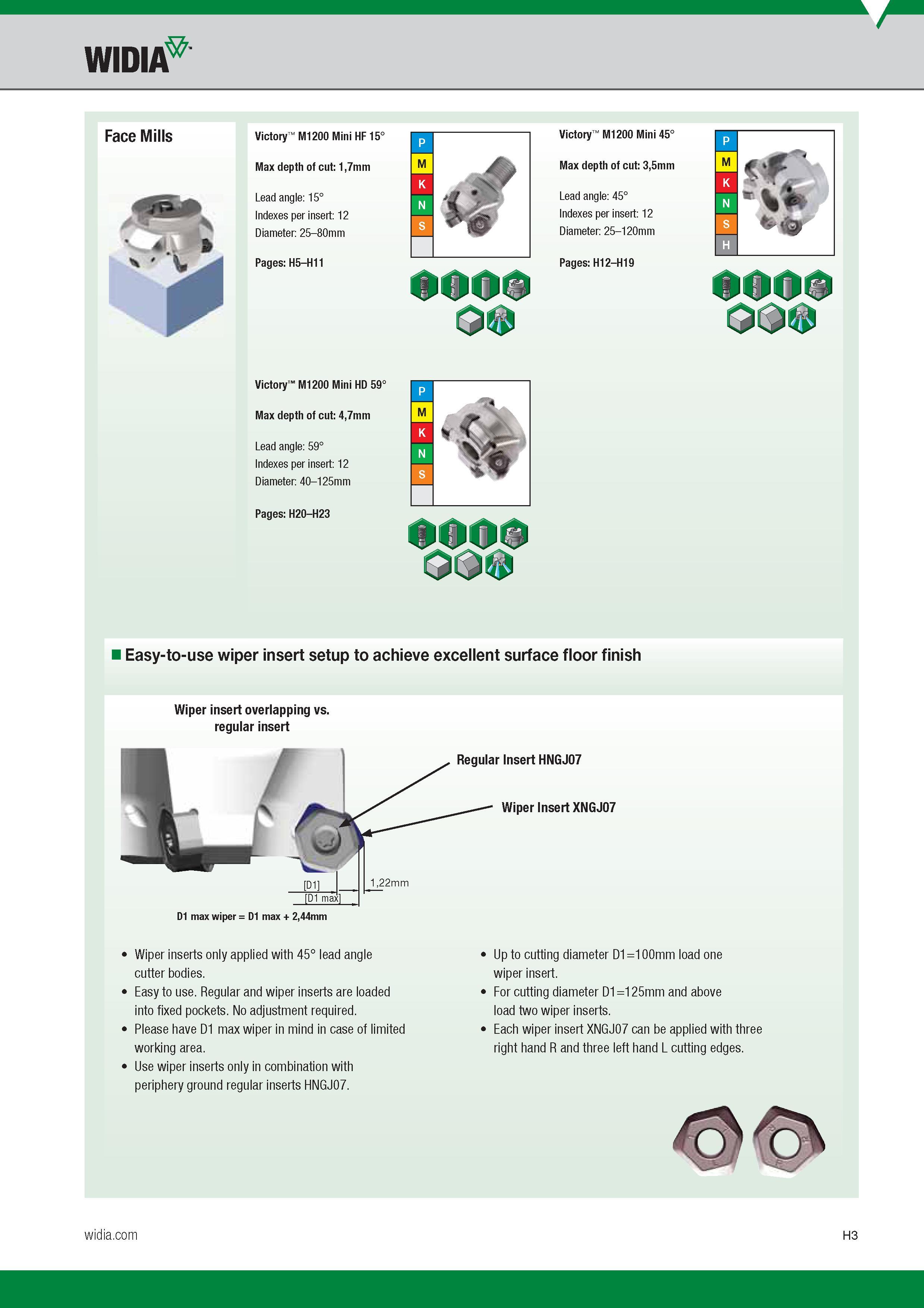

Face Mills Widia Victory M1200 MiniHF15° Max depth of cut 1,7mm Lead angle 15° Indexes per insert 12 Diameter 25-80mm Pages H5-H11 Victory M1200 Mini 45° Max depth of cut 3,5mm Lead angle 45° Indexes per insert 12 Diameter 25-120mm Pages H12-H19 Victory M1200 MiniHD 59° Max depth of cut 4,7mm Lead angle 59° Indexes per insert 12 Diameter 40-125mm Pages H20-H23 Easy-to-use wiper insert setup to achieve excellent surface floor finish Wiper insert overlapping vs. regular insert D1 max wiper D1 max + 2,44mm Wiper inserts only applied with 45° lead angle cutter bodies. Easy to use. Regular and wiper inserts are loaded into fixed pockets. No adjustment required. Please have D1 max wiper in mind in case of limited working area. Use wiper inserts only in combination with periphery ground regular inserts HNGJ07. Regular Insert HNGJ07 Wiper Insert XNGJ07 Up to cutting diameter D1=100mm load one wiper insert. For cutting diameter D1=125mm and above load two wiper inserts. Each wiper insert XNGJ07 can be applied with three right hand R and three left hand L cutting edges.
