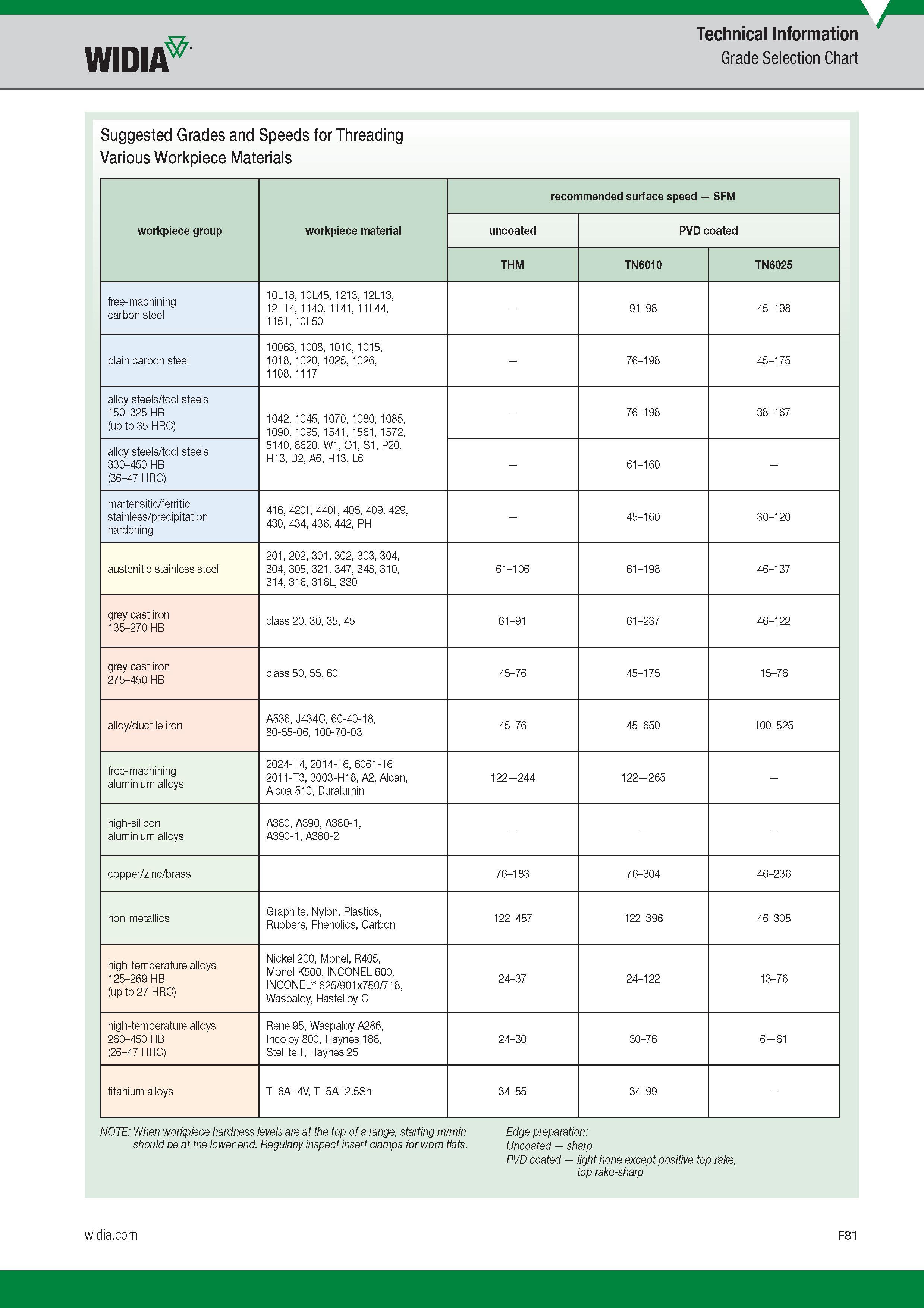

Grade Selection Chart Suggested Grades and Speeds for Threading Various Workpiece Materials workpiece group workpiece material recommended surface speed - SFM uncoated PVD coated THM TN6010 TN6025 free-machining carbon steel 10L18, 10L45, 1213, 12L13, 12L14, 1140, 1141, 11L44, 1151, 10L50 91-98 45-198 plain carbon steel 10063, 1008, 1010, 1015, 1018, 1020, 1025, 1026, 1108, 1117 76-198 45-175 alloy steels/tool steels 150-325 HB (up to 35 HRC) 1042, 1045, 1070, 1080, 1085, 1090, 1095, 1541, 1561, 1572, 5140, 8620, W1, O1, S1, P20, H13, D2, A6, H13, L6 76-198 38-167 alloy steels/tool steels 330-450 HB (36-47 HRC) 61-160 martensitic/ferritic stainless/precipitation hardening 416, 420F, 440F, 405, 409, 429, 430, 434, 436, 442, PH 45-160 30-120 austenitic stainless steel 201, 202, 301, 302, 303, 304, 304, 305, 321, 347, 348, 310, 314, 316, 316L, 330 61-106 61-198 46-137 grey cast iron 135-270 HB class 20, 30, 35, 45 61-91 61-237 46-122 grey cast iron 275-450 HB class 50, 55, 60 45-76 45-175 15-76 alloy/ductile iron A536, J434C, 60-40-18, 80-55-06, 100-70-03 45-76 45-650 100-525 free-machining aluminium alloys 2024-T4, 2014-T6, 6061-T6 2011-T3, 3003-H18, A2, Alcan, Alcoa 510, Duralumin 122 244 122 265 high-silicon aluminium alloys A380, A390, A380-1, A390-1, A380-2 copper/zinc/brass 76-183 76-304 46-236 non-metallics Graphite, Nylon, Plastics, Rubbers, Phenolics, Carbon 122-457 122-396 46-305 high-temperature alloys 125-269 HB (up to 27 HRC) Nickel 200, Monel, R405, Monel K500, INCONEL 600, INCONEL 625/901x750/718, Waspaloy, Hastelloy C 24-37 24-122 13-76 high-temperature alloys 260-450 HB (26-47 HRC) Rene 95, Waspaloy A286, Incoloy 800, Haynes 188, Stellite F, Haynes 25 24-30 30-76 6 61 titanium alloys Ti-6AI-4V, TI-5AI-2.5Sn 34-55 34-99 NOTE When workpiece hardness levels are at the top of a range, starting m/min Edge preparation should be at the lower end. Regularly inspect insert clamps for worn flats. Uncoated sharp PVD coated light hone except positive top rake, top rake-sharp Technical Information Widia
