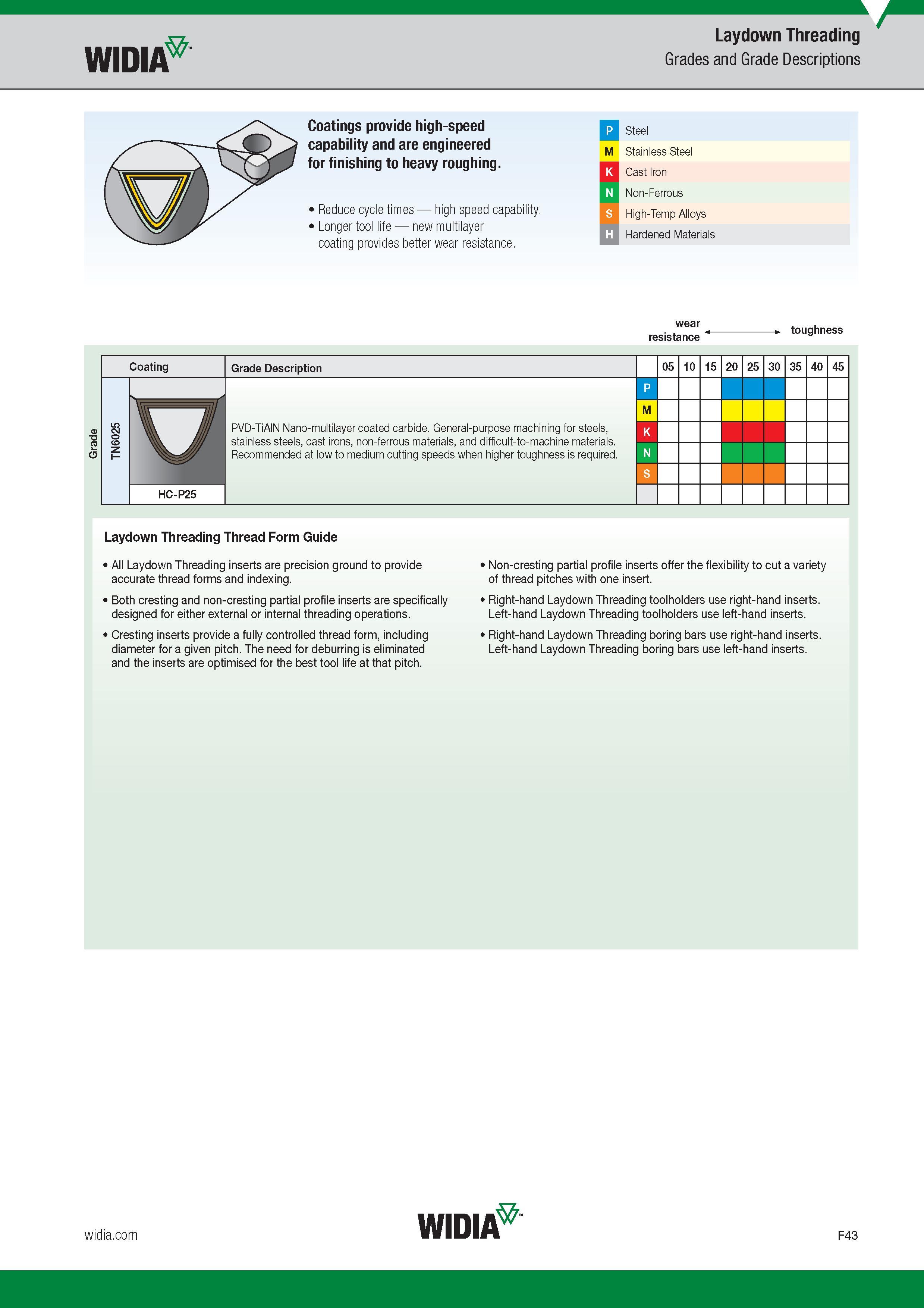

Grades and Grade Descriptions Coatings provide high-speed capability and are engineered for finishing to heavy roughing 1 Reduce cycle times high s

Grades and Grade Descriptions Coatings provide high-speed capability and are engineered for finishing to heavy roughing. 1 Reduce cycle times high speed capability. 1 Longer tool life new multilayer coating provides better wear resistance. P Steel M Stainless Steel K Cast Iron N Non-Ferrous S High-Temp Alloys H Hardened Materials wear resistance toughness Laydown Threading Thread Form Guide All Laydown Threading inserts are precision ground to provide accurate thread forms and indexing. Both cresting and non-cresting partial profile inserts are specifically designed for either external or internal threading operations. Cresting inserts provide a fully controlled thread form, including diameter for a given pitch. The need for deburring is eliminated and the inserts are optimised for the best tool life at that pitch. Non-cresting partial profile inserts offer the flexibility to cut a variety of thread pitches with one insert. Right-hand Laydown Threading toolholders use right-hand inserts. Left-hand Laydown Threading toolholders use left-hand inserts. Right-hand Laydown Threading boring bars use right-hand inserts. Left-hand Laydown Threading boring bars use left-hand inserts. Grade Laydown Threading Widia
