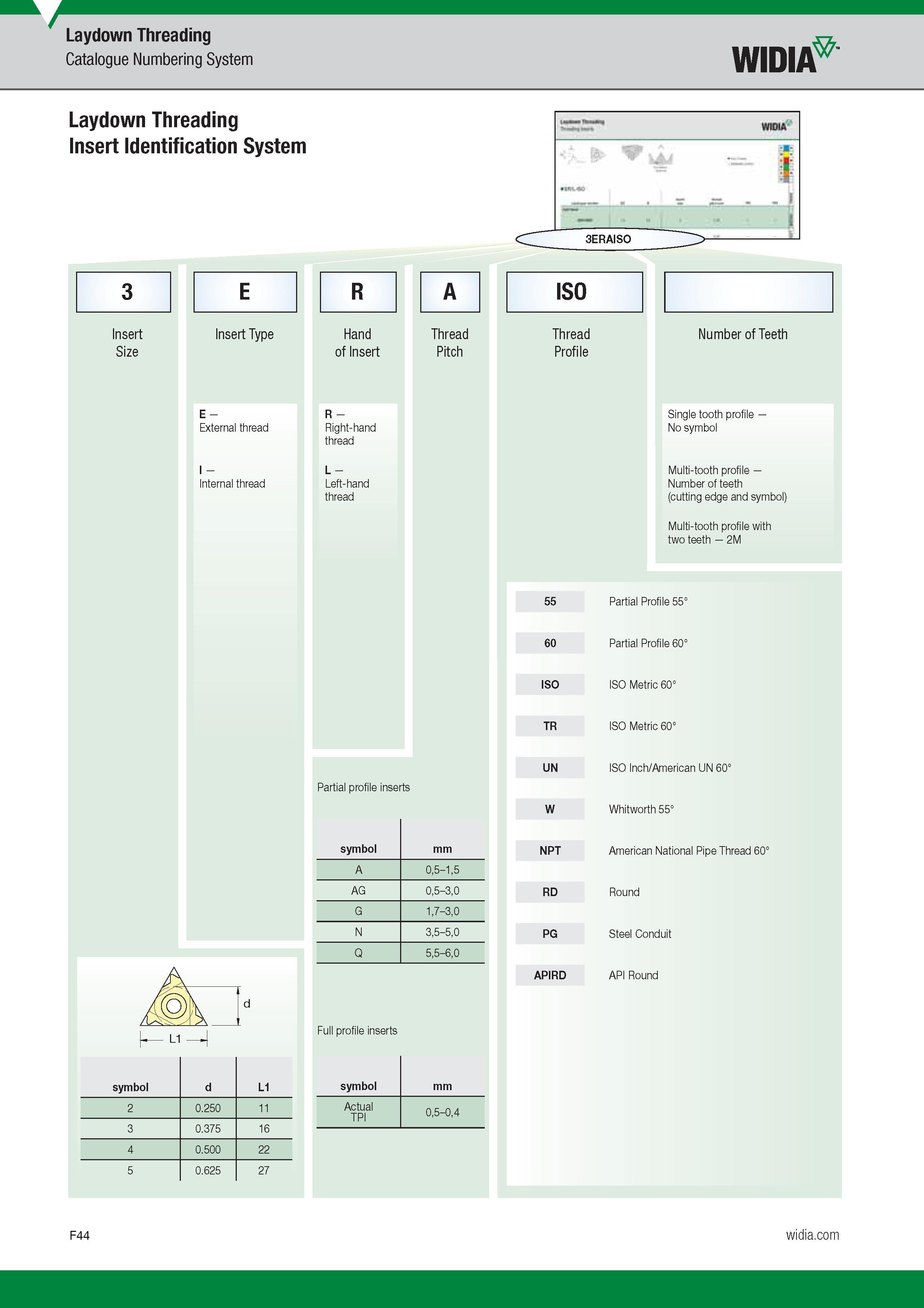

Laydown Threading Catalogue Numbering System Widia Laydown Threading Insert Identification System 3 Insert Size E Insert Type R Hand of Insert A Thread Pitch ISO Thread Profile Number of Teeth E - External thread R - Right-hand thread Single tooth profile -No symbol I - Internal thread L - Left-hand thread Multi-tooth profile Number of teeth (cutting edge and symbol) Multi-tooth profile with two teeth 2M 55 Partial Profile 55° 60 Partial Profile 60° ISO ISO Metric 60° TR ISO Metric 60° UN ISO Inch/American UN 60° Partial profile inserts W Whitworth 55° symbol mm NPT American National Pipe Thread 60 A 0,5-1,5 AG 0,5-3,0 RD Round G 1,7-3,0 N 3,5-5,0 PG Steel Conduit Q 5,5-6,0 Full profile inserts symbol mm Actual TPI 0,5-0,4 APIRD API Round d
