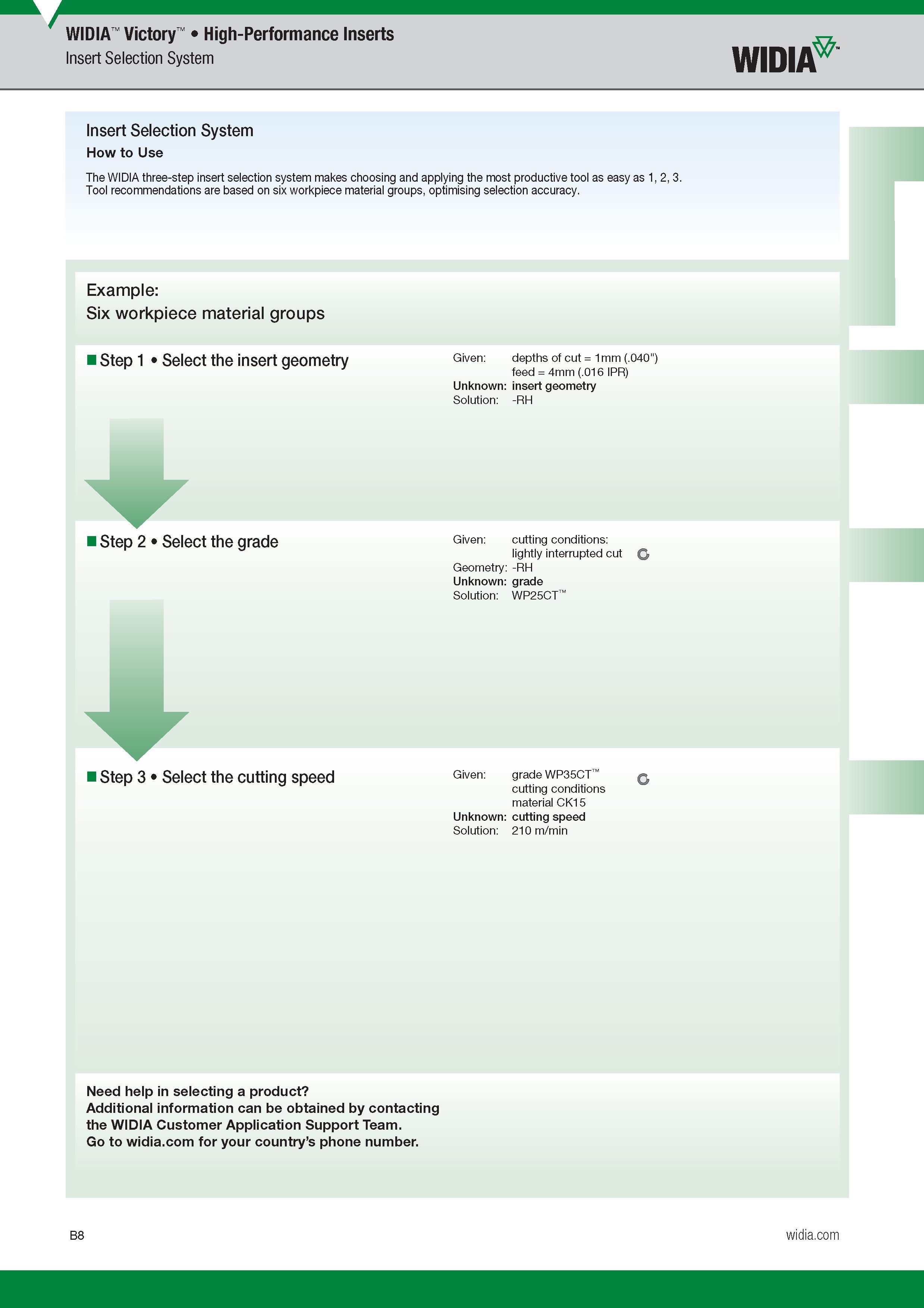

Insert Selection System How to Use The Widia three-step insert selection system makes choosing and applying the most productive tool as easy as 1, 2, 3. Tool recommendations are based on six workpiece material groups, optimising selection accuracy. I Example Six workpiece material groups Step 1 Select the insert geometry Given depths of cut 1mm (.040" feed 4mm (.016 IPR) Unknown insert geometry Solution -RH Step 2 Select the grade Given cutting conditions lightly interrupted cut ( Geometry -RH Unknown grade Solution WP25CT Step 3 Select the cutting speed Given grade WP35CT cutting conditions material CK15 Unknown cutting speed Solution 210 m/min Need help in selecting a product Additional information can be obtained by contacting the Widia Customer Application Support Team. Go to for your country’s phone number. Widia Victory High-Performance Inserts Insert Selection System Widia
