Inserts Catalogue Numbering System Widia How Do Catalogue Numbers Work Each character in our Catalogue number Обозначение инструмента по каталогу s

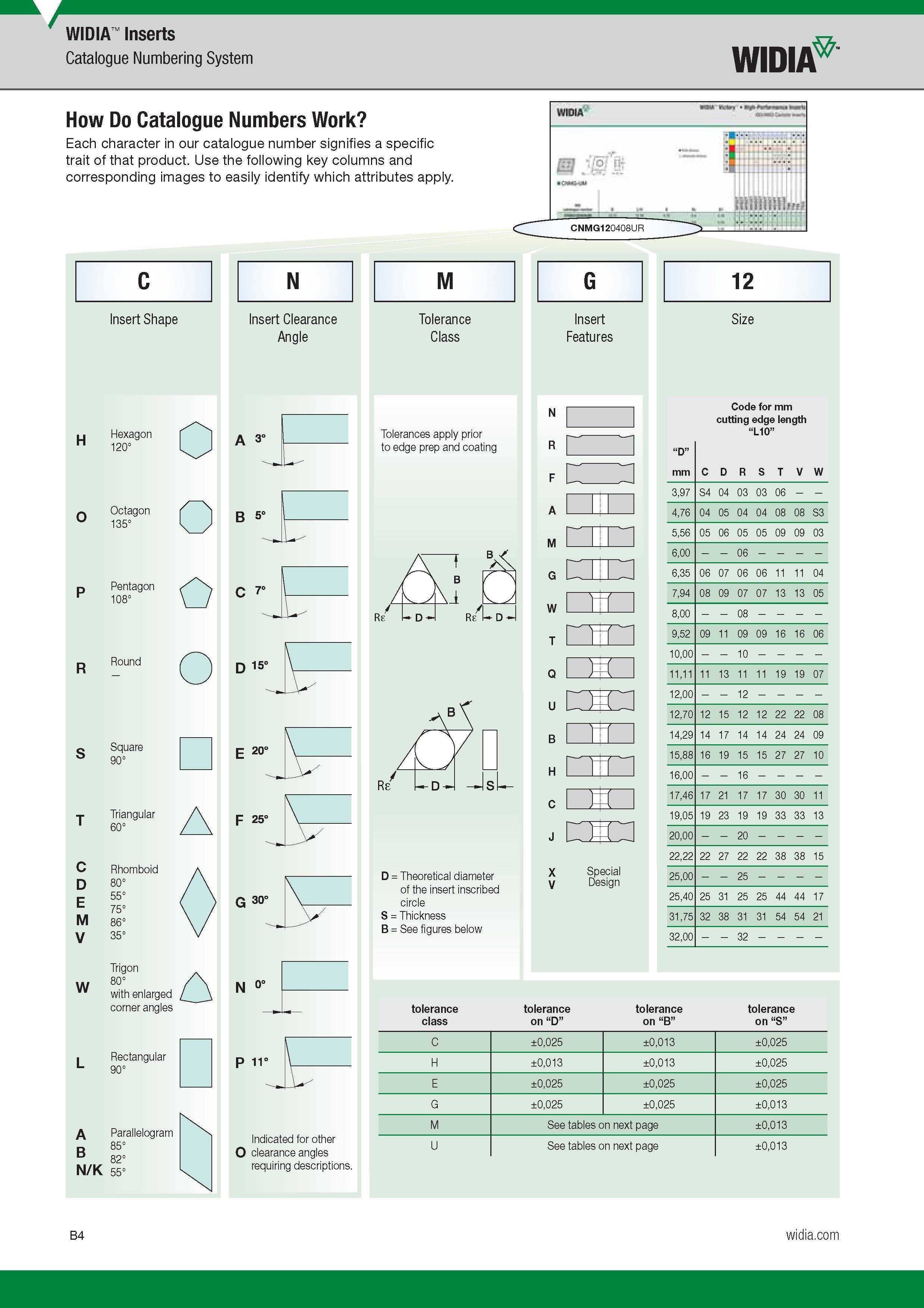

Inserts Catalogue Numbering System Widia How Do Catalogue Numbers Work Each character in our Catalogue number Обозначение инструмента по каталогу signifies a specific trait of that product. Use the following key columns and corresponding images to easily identify which attributes apply. WtDIA CNMG120408UR N M 12 Insert Shape Insert Clearance Angle Tolerance Class Insert Features Size H O R S A B Hexagon 120° Octagon 135° Pentagon 108° Round Square T Triangular 1 60° C D E M V W Rhomboid 80° 55° 75° 86° 35° Trigon 80° with enlarged corner angles Rectangular Parallelogram 85° 82° N/K 55° A 3° B 5 C 7 D 15 E 20° F 25° G 30° N P 11 Indicated for other O clearance angles requiring descriptions. Tolerances apply prior to edge prep and coating D Theoretical diameter of the insert inscribed circle S Thickness B See figures below R Mrrn g on W T U M H C j M n X Special V Design Code for mm cutting edge length L10 D mm C D R S T V W 3,97 S4 04 03 03 06 4,76 04 05 04 04 08 08 S3 5,56 05 06 05 05 09 09 03 6,00 06 6,35 06 07 06 06 11 11 04 7,94 08 09 07 07 13 13 05 8,00 08 9,52 09 11 09 09 16 16 06 10,00 10 11,11 11 13 11 11 19 19 07 12,00 12 12,70 12 15 12 12 22 22 08 14,29 14 17 14 14 24 24 09 15,88 16 19 15 15 27 27 10 16,00 16 17,46 17 21 17 17 30 30 11 19,05 19 23 19 19 33 33 13 20,00 20 22,22 22 27 22 22 38 38 15 25,00 25 25,40 25 31 25 25 44 44 17 31,75 32 38 31 31 54 54 21 32,00 32 N P Q B L B4 Widia
